SE960PEYW1 04 – CONTROL PANEL

SE960PEYW1 04 – CONTROL PANEL

Written by

in

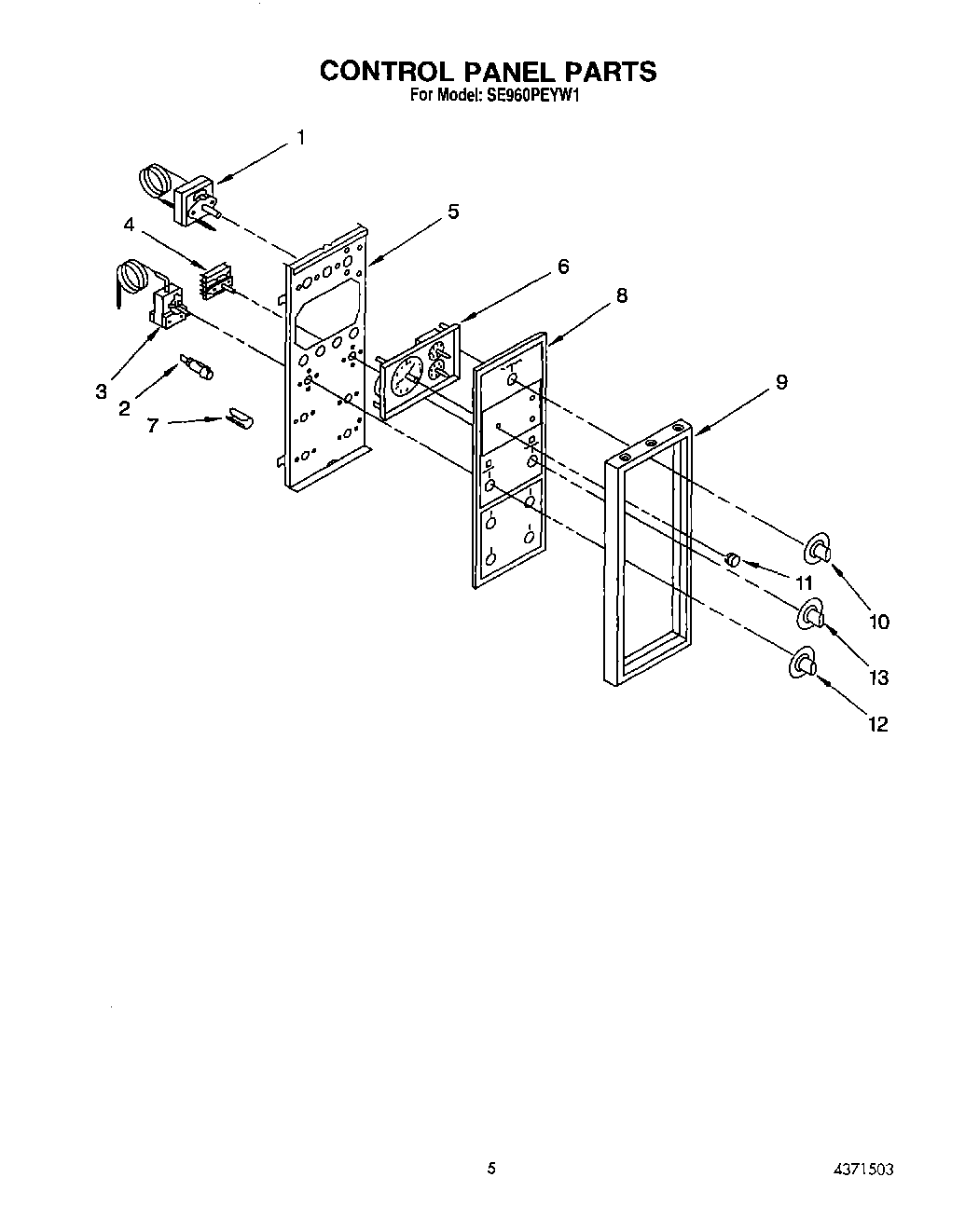

SE960PEYW1 04 – CONTROL PANEL

Products

PositionProduct
1Thermostat, Oven Upper
2Light, Indicator (Clean/Lock/Surface 125V (3))
3Thermostat, Oven Lower
4Switch, Selector
5Bracket, Control Panel
6Clock, Timer
7Fastener, Clock (3)
8Glass, Upper Oven Control Panel
9Trim, Frame Control Panel
10Knob, Thermostat Upper
11Knob, Clock (3)
12Knob, Thermostat Lower
13Bushing
13Knob, Selector Switch
