SE960PEYW2 04 – COOKTOP

SE960PEYW2 04 – COOKTOP

Written by

in

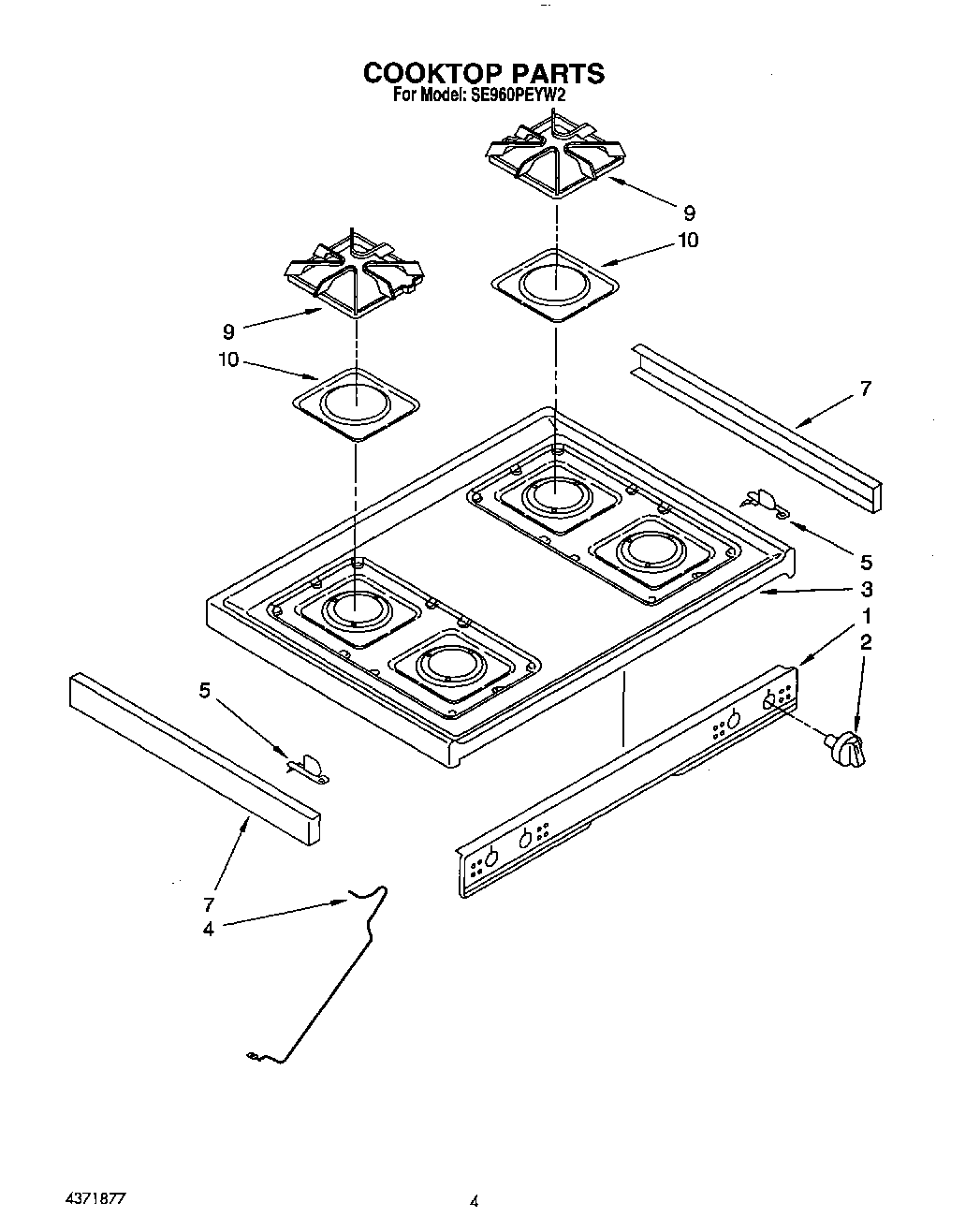

SE960PEYW2 04 – COOKTOP

Products

PositionProduct
1Cap, Filler
2Knob, Control (4)
3Top, Main (White)
3Top, Main (Almond)
4Rod, Support Top
5Bracket, Hinge RH
5Bracket, Hinge LH
7Trim, Top (Left)
7Trim, Top (Right)
9Grate
10Pan, Burner
