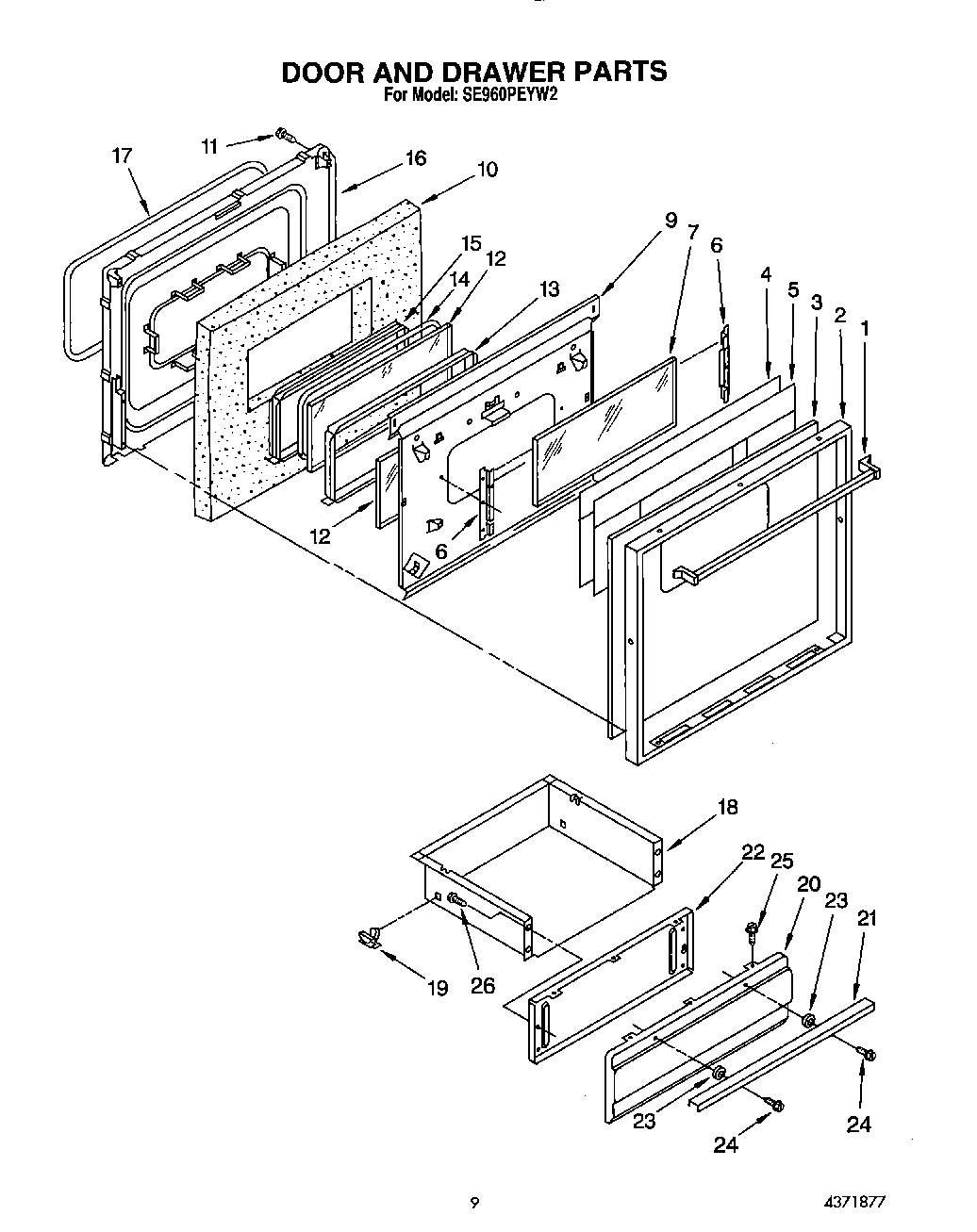

SE960PEYW2 08 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door
4	Foil, Alum. (2)
5	Foil, Alum.
6	Bracket, Glass
7	Glass, Oven Door
9	Shield, Heat
10	Insulation, Door
11	Screw, Handle
12	Glass, Heat Barrier (2)
13	Spacer, Glass
14	Seal, Rope
15	Collar, Glass
16	Liner, Oven Door
17	Seal, Oven Door
18	Drawer, Utility
19	Guide, Drawer
20	Panel, Drawer (Almond)
20	Panel, Drawer (White)
21	Handle, Utility Drawer
22	Shield, Panel
23	Spacer, Handle
24	Screw, Handle (2)
25	WP489478 Whirlpool Refrigerator Screw
26	Screw, Panel (4)
