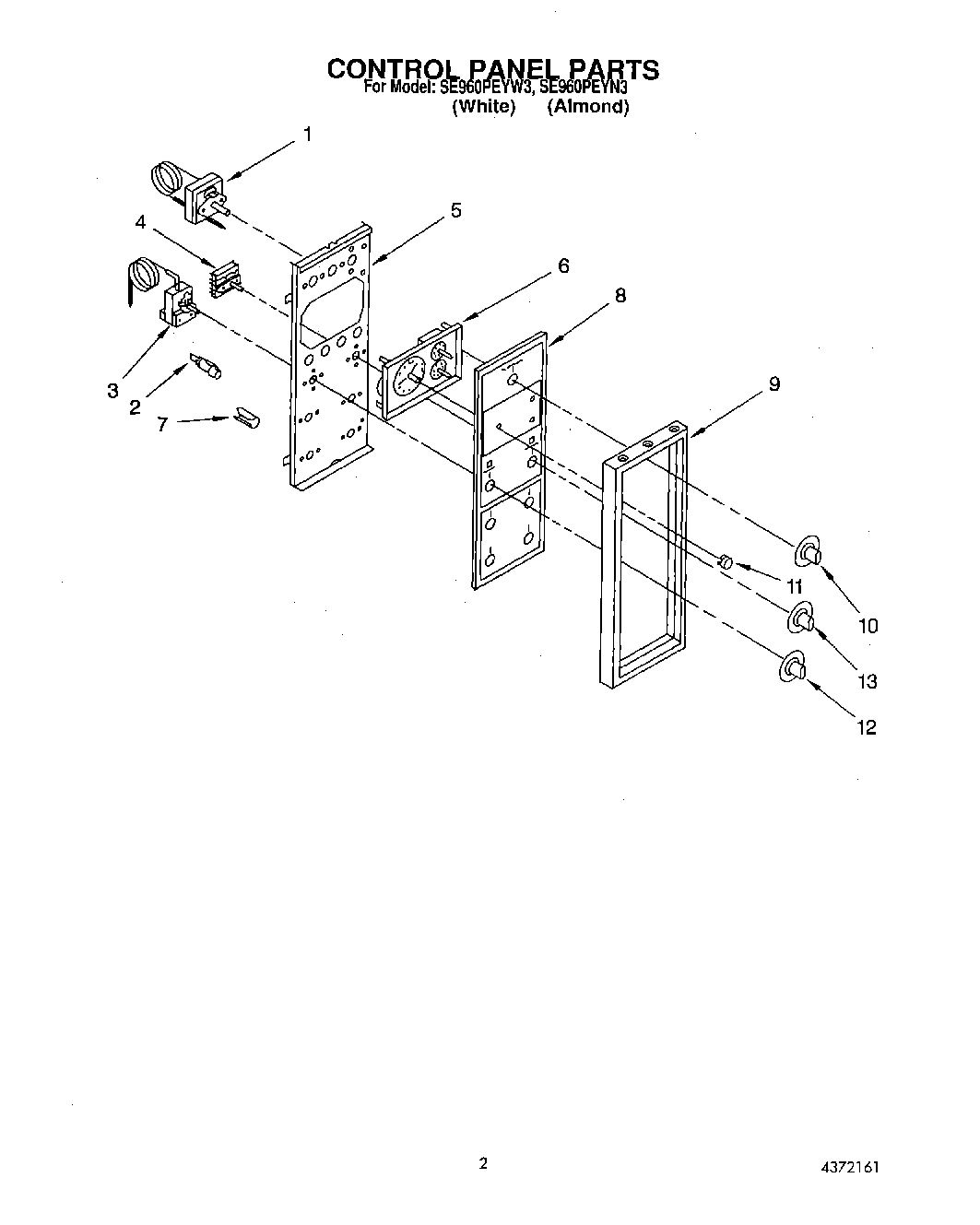

SE960PEYW3 02 – CONTROL PANELadmin2025-04-26T12:53:55+00:00SE960PEYW3 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Thermostat, Oven Upper |
| 2 | Light, Indicator (Clean/Lock/Surface 125V (3)) |
| 3 | Thermostat, Oven Lower |
| 4 | Switch, Selector |
| 5 | Bracket, Control Panel |
| 6 | Clock, Timer |
| 7 | Fastener, Clock (3) |
| 8 | Glass, Upper Oven Control Panel |
| 9 | Frame, Control Panel |
| 10 | Knob, Thermostat Upper |
| 11 | Knob, Clock (3) |
| 12 | Knob, Thermostat Lower |
| 13 | Bushing |
| 13 | Knob, Selector Switch |
