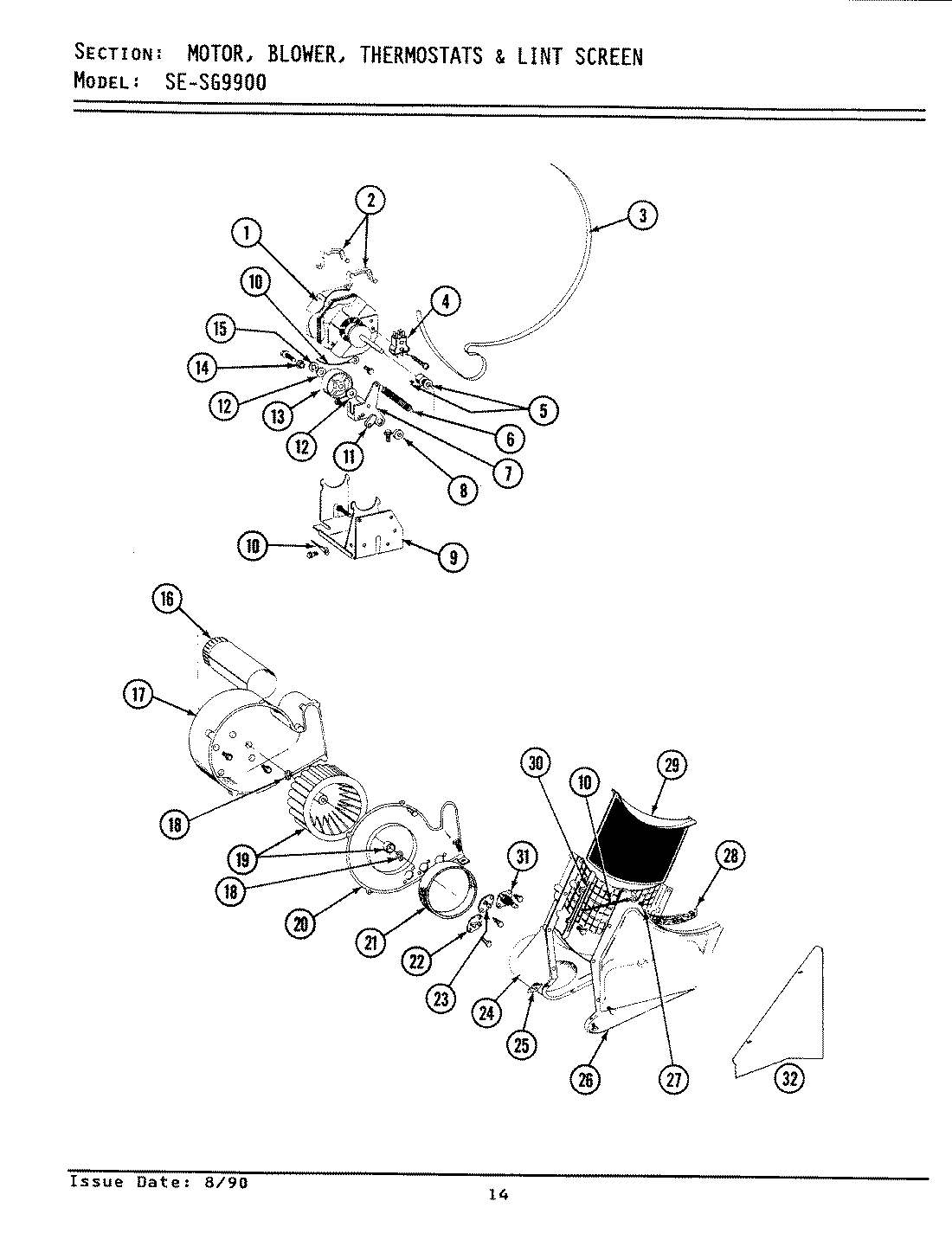

SE9900 10 – MOTOR, BLOWER, THERMOSTATS & LINT SCREEN

Products

Position	Product
1	MAY 910343
1	W10411000 Whirlpool Washer Dryer Drive Motor
2	WPY015825 Whirlpool Motor Clip
3	MAY 314774
4	MAY 306207
4	MAY Y303877
5	MAY 306099
5	MAY Y053241
6	MAY 314473
7	MAY Y310842
7	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
8	MAY 314457
9	MAY 306054
10	MAY 901220
11	MAY Y312057
11	MAY 314456
12	MAY Y312527
13	WP6-3037050 Whirlpool Idler Pulley
14	SLEEVE, IDLER ARM —-S
15	WP354987 Whirlpool C-Clip
16	MAY 306637
17	MAY Y310632
17	MAY Y312893
18	WP9703438 Whirlpool Snap Retaining Ring
19	Y303836 Whirlpool Dryer Blower Wheel
19	WP312967 Whirlpool Clamp
20	COVER, BLOWER
20	MAY Y313561
21	WPY312901 Whirlpool Blow Seal
22	MAY 314848
22	WP306604 Whirlpool Cut-off
23	MAY 306056
24	MAY 314801
25	MAY 315274
26	MAY 314485
27	MAY 310557
28	MAY Y313796
29	MAY Y306666
30	MAY Y313795
31	MAY 306060
31	WP90767 Whirlpool Screw
32	WPW10116751 Whirlpool Screw
32	MAY 315239
