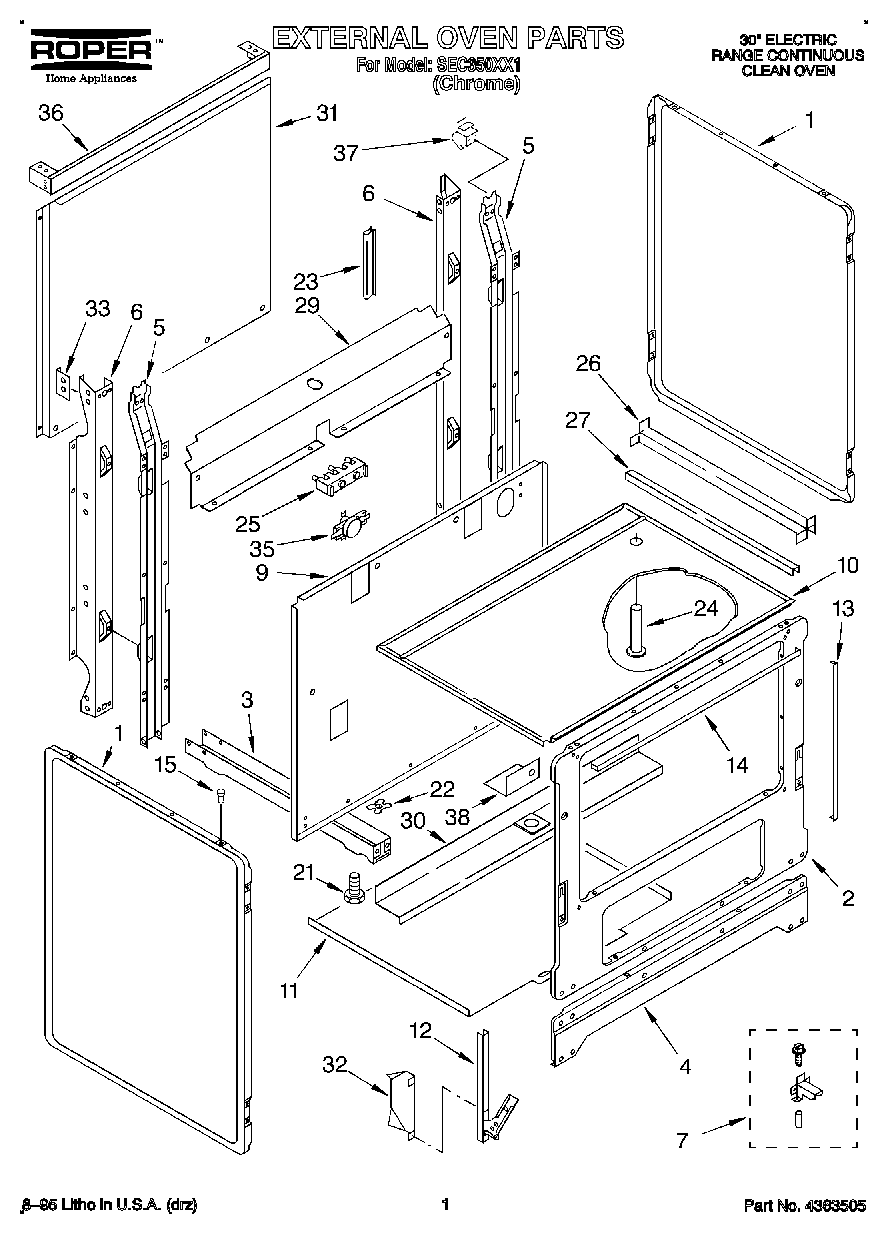

SEC350XX1 01 – EXTERNAL OVEN, LITERATURE

Products

Position	Product
	Instuctions, Installation
	Guide, Use & Care
1	Panel, Side (2)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
5	Support, Main (2)
5	Clip, Speed
6	Support, Rear (2)
6	Screw
7	Anti-Tip Kit
9	Main Back
10	Burner Box
11	Retainer Lower
12	Hinge. Door (2)
12	Screw
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
21	Leg, Leveler
22	Nut (4)
23	Safe Edge
24	Tube, Vent
25	Screw, 10-32 X 1/2 (1)
25	WP8203546 Whirlpool Terminal Block
26	Channel, Wire
27	Ignitor (L.H.)
29	Cover, Rear
30	Shield, Wire
30	Screws (3)
31	Cover, Rear
32	Shield, Insulation
32	Screw
33	Bracket, Mounting (L.H.)
33	Bracket, Mounting (R.H.)
35	Disc, Thermo
36	WP308685 Whirlpool Microwave Screw
36	Rail, Backguard
37	Bracket, Support (2)
38	WPW10208653 Whirlpool Insulation
38	Mounting Plate
38	FOIL, ALUMINUM OVEN (18“ X 25 )
