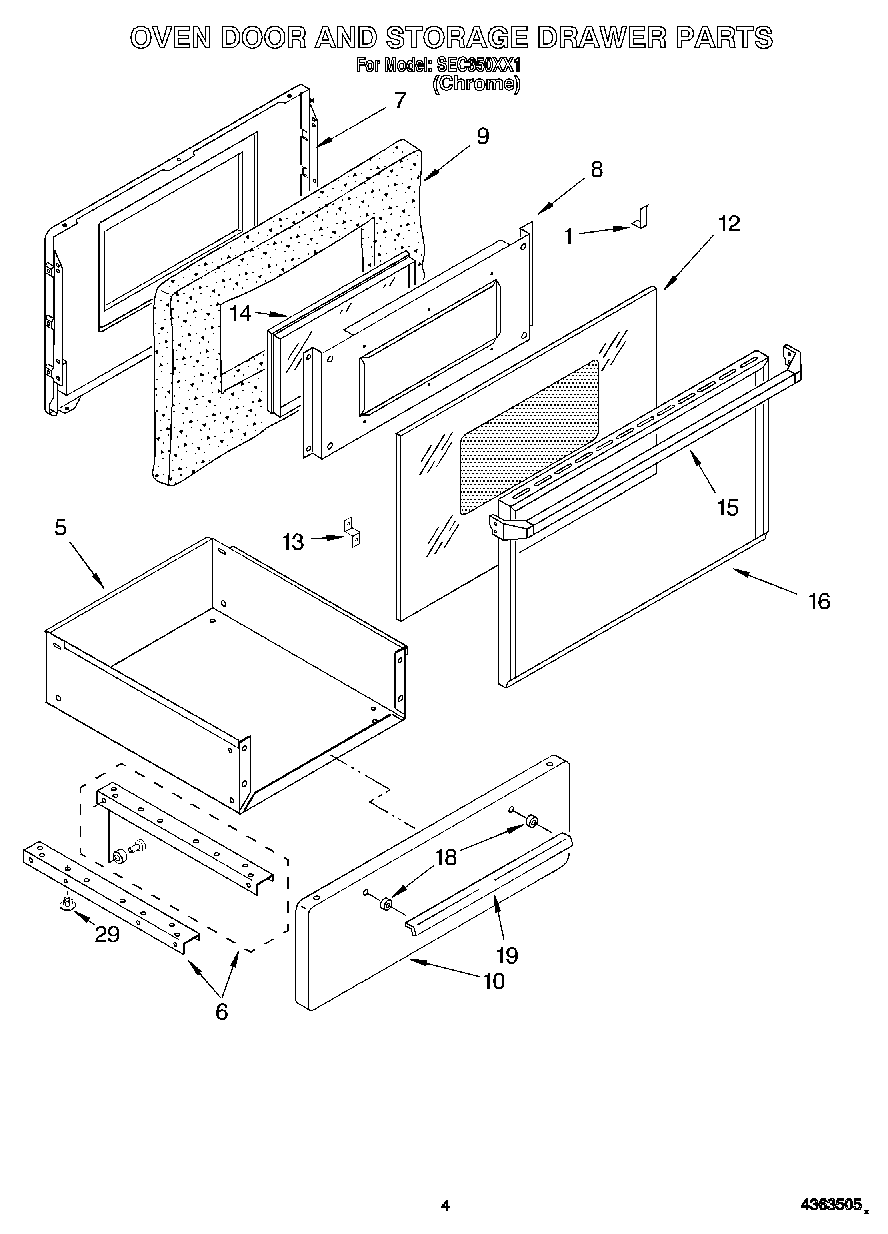

SEC350XX1 03 – OVEN DOOR AND STORAGE DRAWER

Products

Position	Product
1	Bumper (4)
5	Drawer, Storage
6	Track, Upper (Right)
6	Track, Upper (Left)
7	Liner, Door
8	Baffle, Door
9	Insulation
10	Panel, Drawer
10	WP308685 Whirlpool Microwave Screw
12	Glass, Outer
13	Bumper, Rubber (2)
13	Bracket “Z“ (8)
14	Window Assy
15	Handle
15	Screw, Door Handle
16	Frame, Door
18	Spacer (2)
19	Handle
29	Bumper, Nylon (4)
