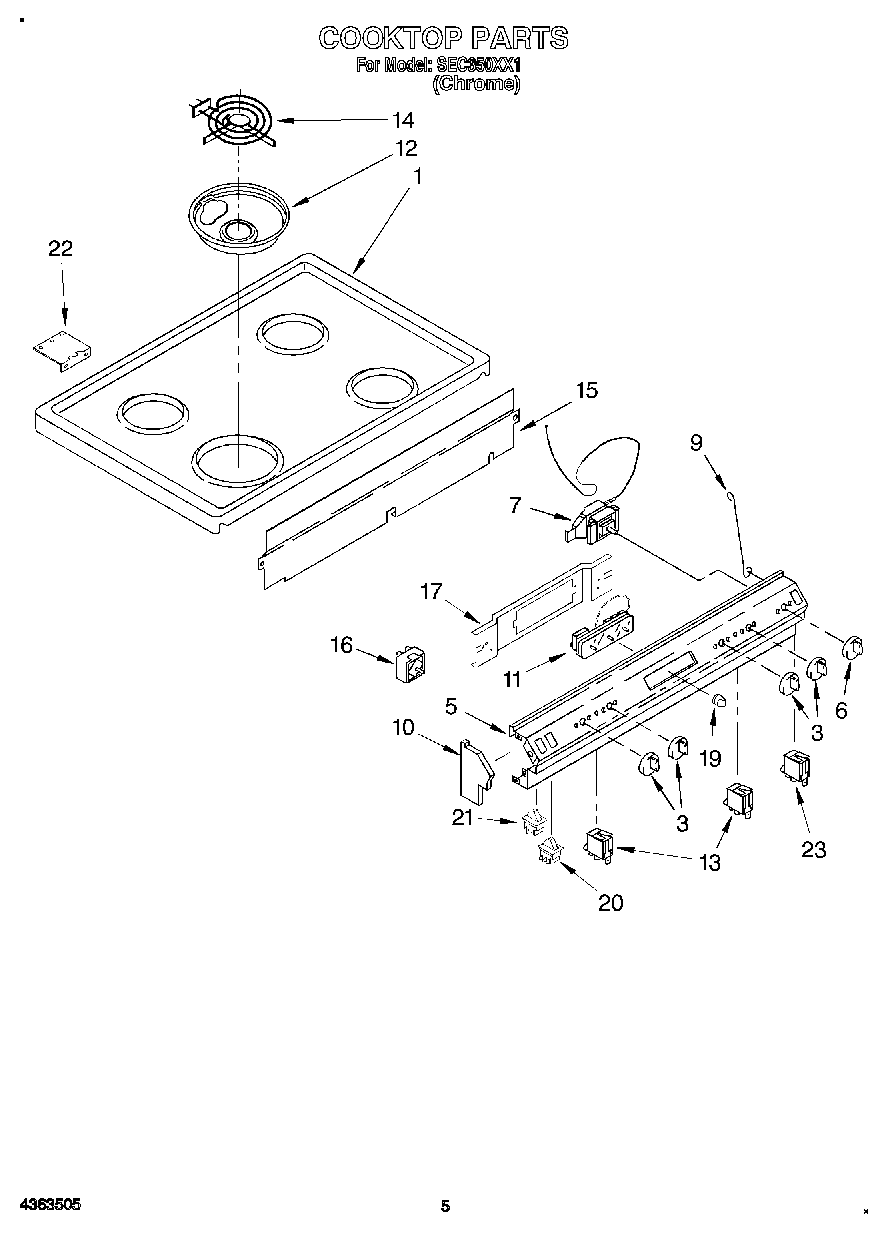

SEC350XX1 04 – COOKTOP

Products

PositionProduct
1Cooktop, Chrome
3Knob, Infinite (4)
5Panel, Manifold
6Knob, Thermostat
7Thermostat
9Rod, Support
10Endcap (L.H.)
10Endcap (R.H.)
11Clock
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
12DRIP BOWL 8" W/HOLE CHROME
13Light, Indicator (2)
14Element, Surface (6“ (3))
14Element, Surface (8“ (1))
15Screw
15Cover, Switch
16W10900107 Whirlpool Oven Surface Element Switch
16Screw, Thermostat Mounting (2)
17Bracket, Mounting Clock
19Knob, Clock (3)
20WP4314961 Whirlpool Lite Switch
22Hinge, Maintop (2)
23Light, Indicator
