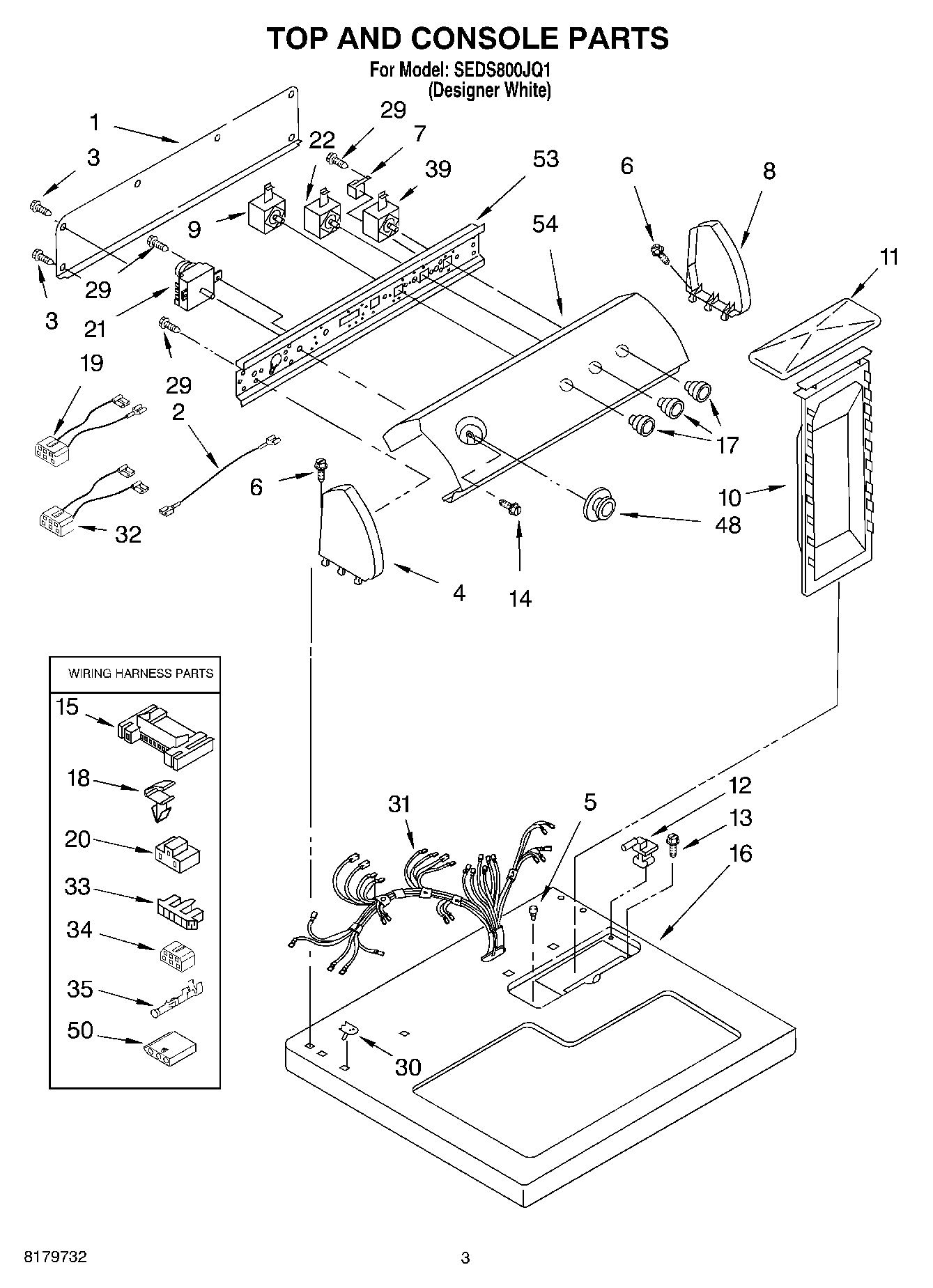

SEDS800JQ1 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
2Wire, Jumper (Tan)
3WP693995 Whirlpool Screw
5Bumper, Lint Lid
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8279960 Whirlpool Endcap Assembly
9WP3399640 Whirlpool Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP3957796 Whirlpool Knob
18WP3394427 Whirlpool Clip
193397695 Whirlpool Wire Harness
203401144 Whirlpool Connector
21WP3979618 Whirlpool Timer
22WP3405156 Whirlpool Switch
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire-Jumper Assembly
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39Relay, Push To Start
48WP3957746 Whirlpool Knob Assembly
503936144 Whirlpool Connector
53Bracket, Control
544392065 Whirlpool Dryer Maintenance Kit
54350930 Whirlpool White Spray Paint
54799344 Whirlpool Refrigerator Paint
5472017 Whirlpool Appliance Touch-Up Paint White
54350938 Whirlpool Spray Gun
54Panel, Control
