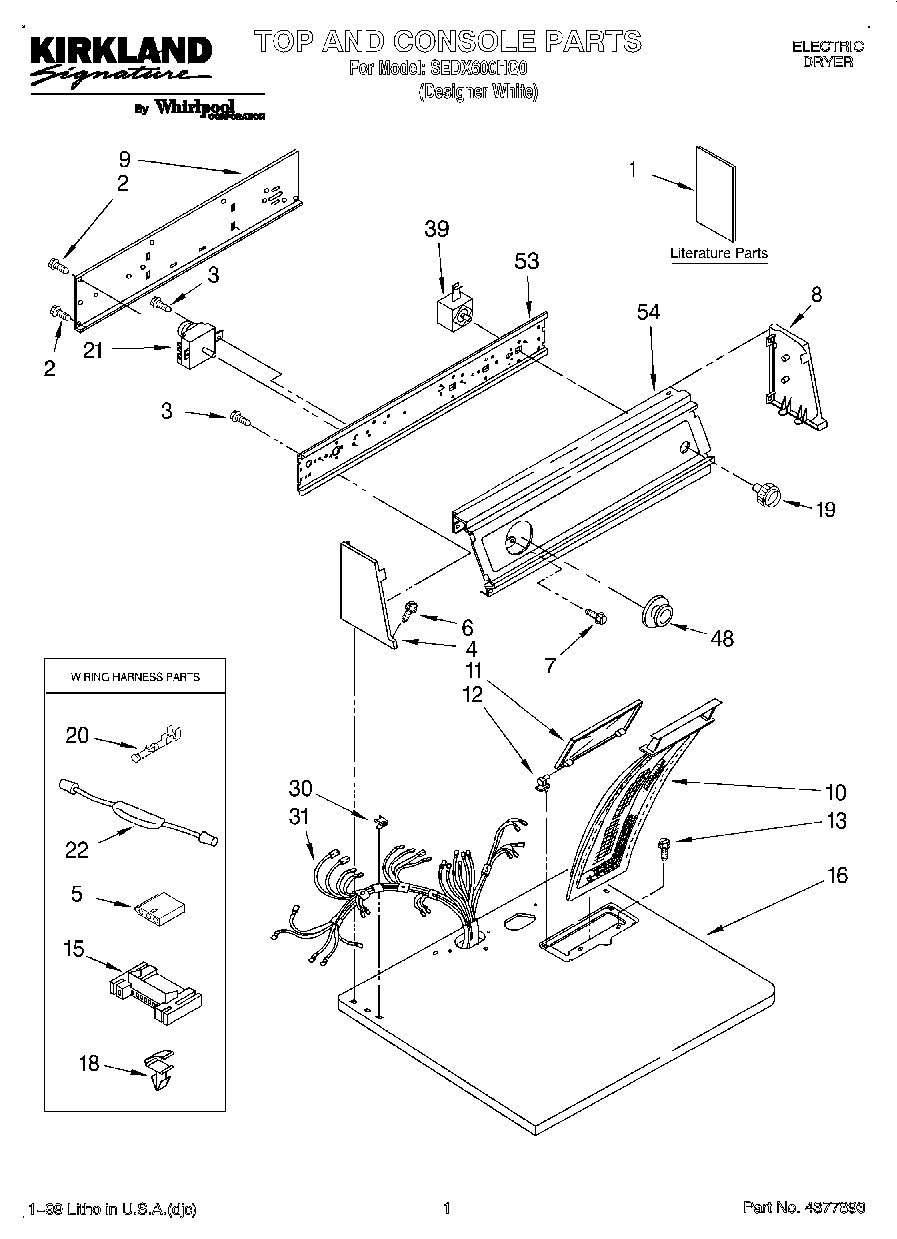

SEDX600HQ0 01 – SECTION

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Guide, Use & Care)
1	WPL LIT3397618
2	WP693995 Whirlpool Screw
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.) (White)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	Cap, End (R.H.) (White)
9	Panel, Rear Console
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top (White)
18	WP3394427 Whirlpool Clip
19	WP3957800 Whirlpool Knob
20	WP94614 Whirlpool Terminal
21	Timer, 60 Hz.
22	279872 Whirlpool Resistor
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly (White)
53	Bracket, Control
54	350930 Whirlpool White Spray Paint
54	Almond (Uncut)
54	WP72107 Whirlpool Touchup
54	799344 Whirlpool Refrigerator Paint
54	72017 Whirlpool Appliance Touch-Up Paint White
54	350956 Whirlpool Spray Assembly
54	350938 Whirlpool Spray Gun
54	Panel, Control
