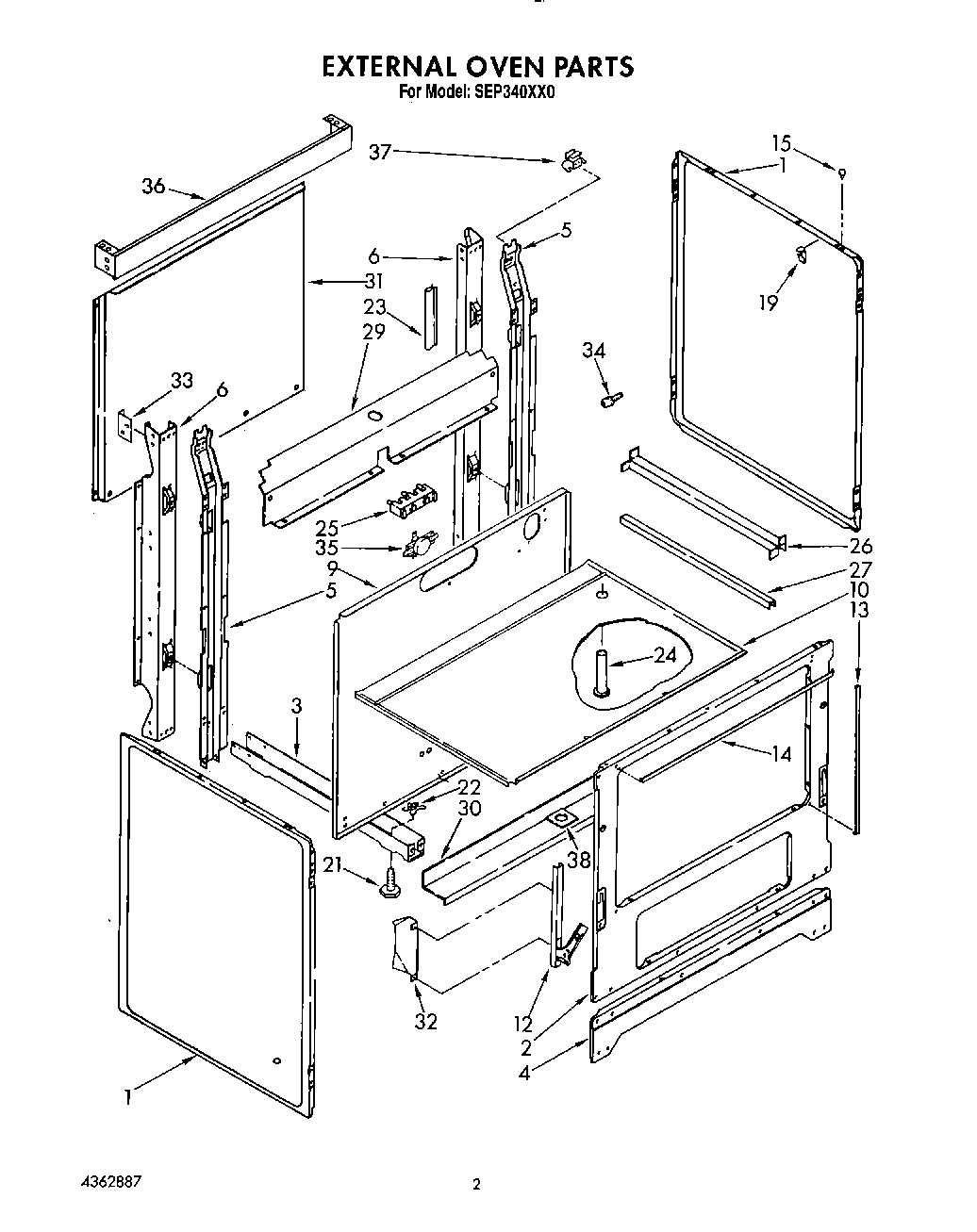

SEP340XX0 02 – EXTERNAL OVEN, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Instuctions, Installation
1	Panel, Side (2)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
6	SCREW
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
12	Hinge, Door (2)
12	Screw, 10-24 X 3/8 (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
19	Wire, Tie
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Tube, Vent
25	WP8203546 Whirlpool Terminal Block
26	Ignitor (R.H.)
27	Ignitor (L.H.)
29	Cover, Rear
30	Shield, Wire
31	Wire Shield
32	Shield, Insulation
33	Bracket, Mounting (R.H.)
33	Bracket, Mounting (L.H.)
34	Stud Screw (2)
34	Locator stud (2)
35	Disc, Thermo
36	Rail, Backguard
37	Bracket, Support (2)
38	FOIL, ALUMINUM OVEN (18“ X 25 )
38	WPW10208653 Whirlpool Insulation
38	Mounting Plate
