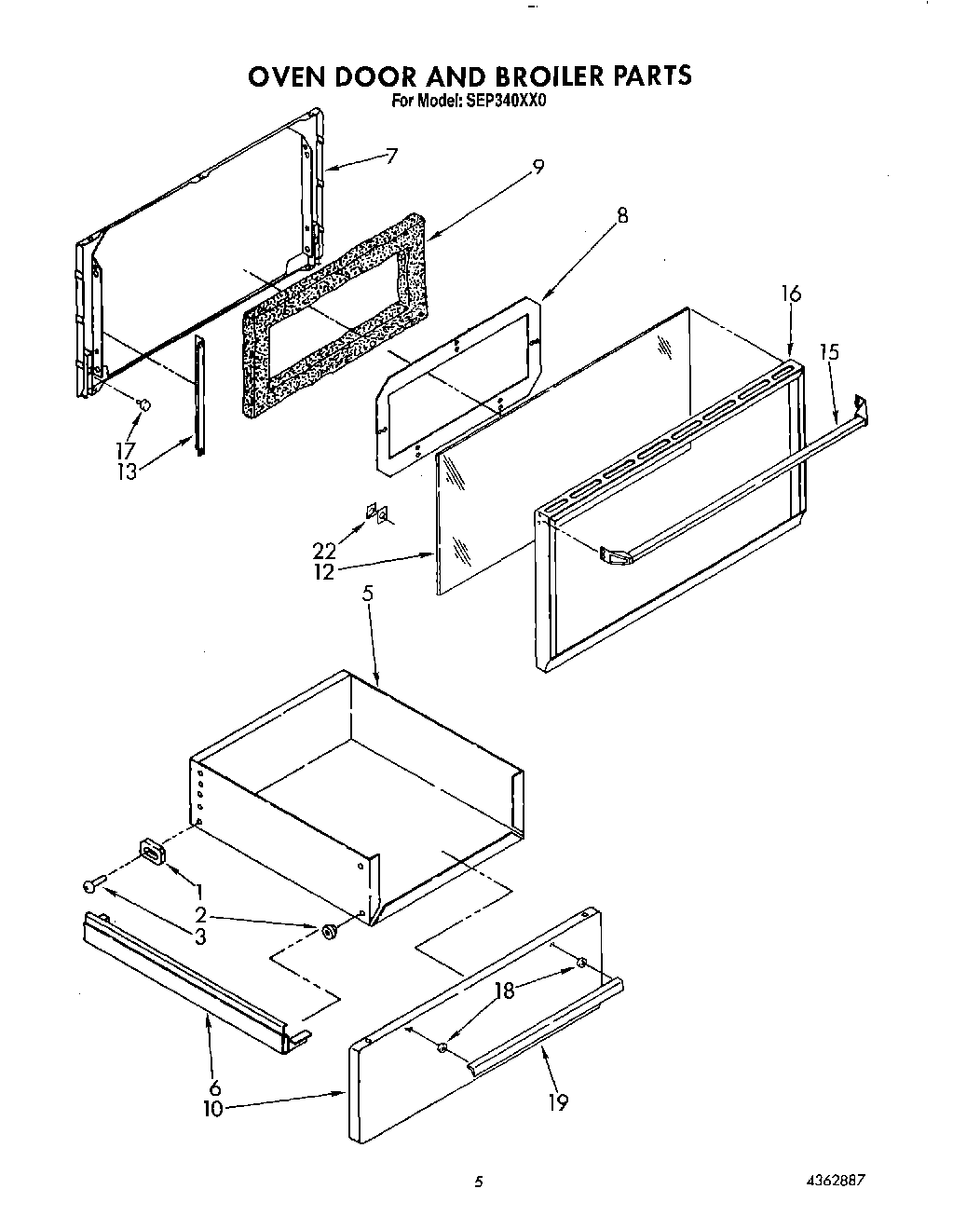

SEP340XX0 04 – OVEN DOOR AND BROILERadmin2025-04-26T12:54:01+00:00SEP340XX0 04 – OVEN DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Bumper, Nylon (4) |
| 2 | Roller (2) |
| 3 | Pin, Roller (2) |
| 5 | Drawer, Storage |
| 6 | Track, Broiler (Left Hand) |
| 6 | Track, Broiler (Right Hand) |
| 7 | Liner, Door |
| 8 | Ring, Hold Down |
| 9 | Insulation |
| 10 | Panel, Drawer (Black) |
| 12 | Glass |
| 13 | Bracket ``Z`` (8) |
| 15 | Handle |
| 16 | Frame, Door |
| 17 | Bumper, Rubber (6) |
| 18 | Spacer (2) |
| 19 | Handle |
| 22 | Bumper, Rubber (2) |
| 22 | WP308685 Whirlpool Microwave Screw |
