SEP340XX1 04 – COOKTOP

SEP340XX1 04 – COOKTOP

Written by

in

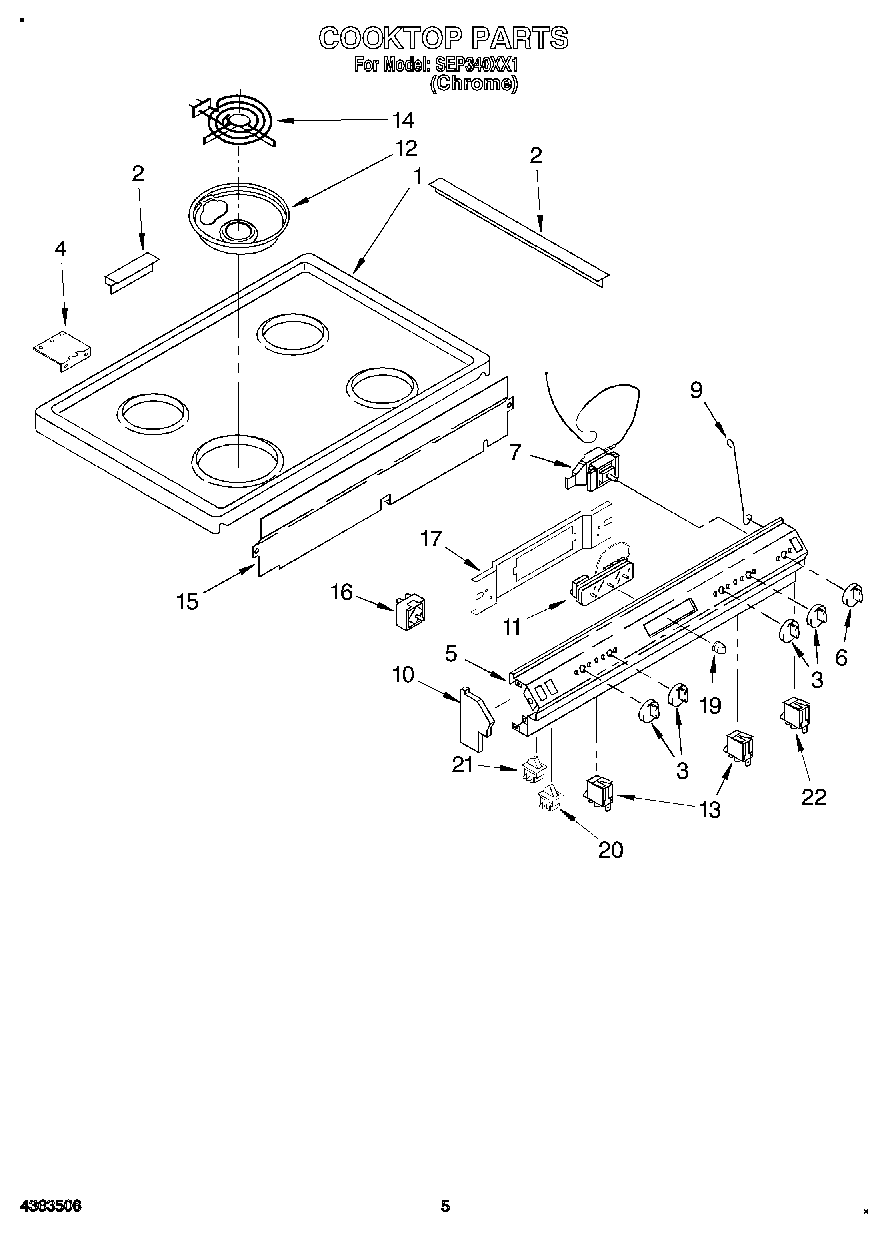

SEP340XX1 04 – COOKTOP

Products

PositionProduct
1Cooktop (Chrome)
1Speed Clip (4)
1WP308685 Whirlpool Microwave Screw
2Kit, Trim (Includes Mtg Brkt & Screws)
3Knob, Infinite (4)
4Hinge, Maintop (2)
5Panel, Manifold
6Knob, Thermostat
7Thermostat
9Rod, Support
10Endcap (L.H.)
10Endcap (R.H.)
11Clock
12DRIP BOWL 8" W/HOLE CHROME
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
13Light, Indicator (2)
14Element, Surface (8“ (1))
14Element, Surface (6“ (3))
15Screw
15Cover, Switch
16Screw, Thermostat Mounting (2)
16W10900107 Whirlpool Oven Surface Element Switch
17Bracket, Mounting Clock
19Knob, Clock (3)
20WP4314961 Whirlpool Lite Switch
22Light, Indicator
