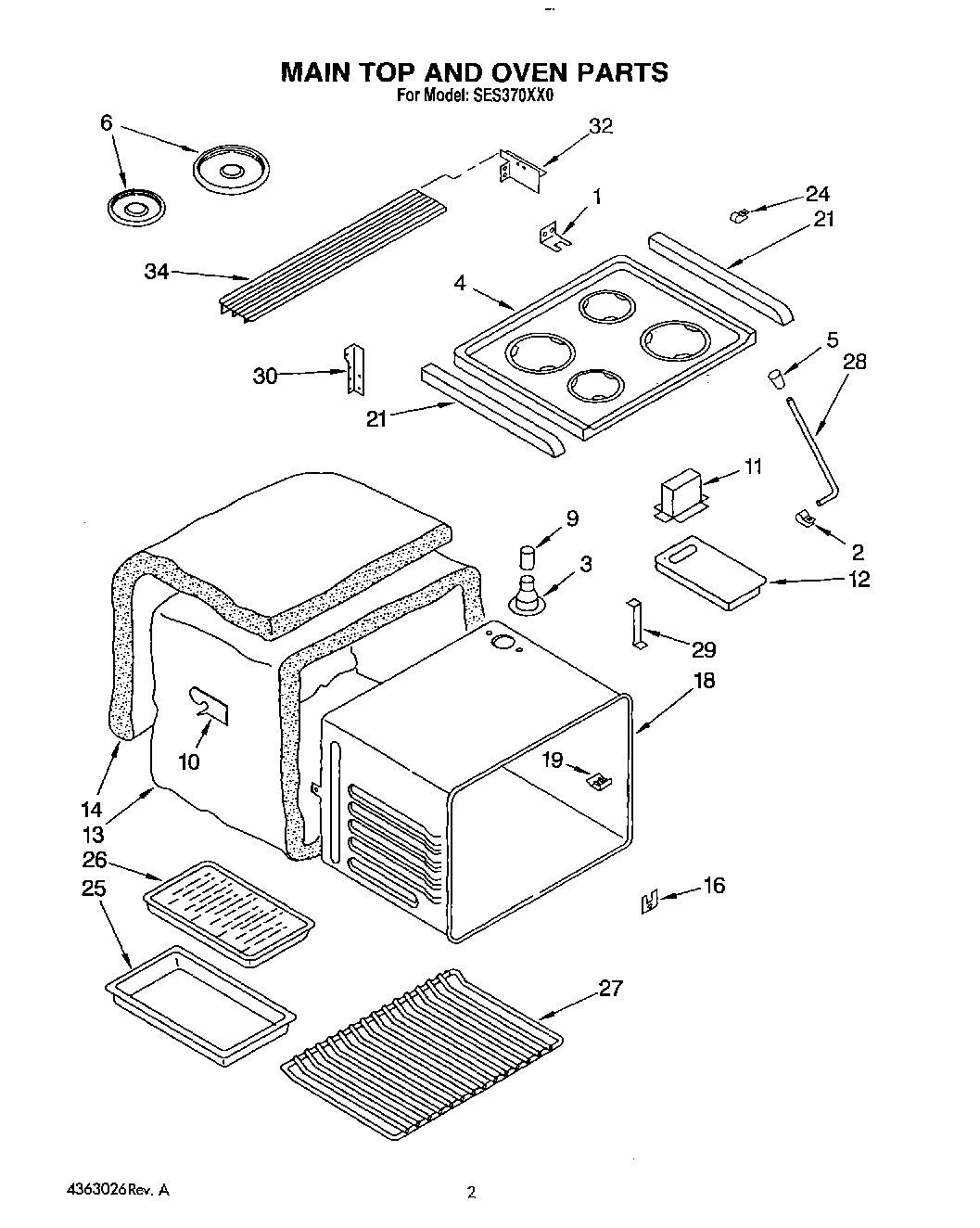

SES370XX0 02 – MAINTOP AND OVEN

SES370XX0 02 – MAINTOP AND OVEN

Written by

in

SES370XX0 02 – MAINTOP AND OVEN

Products

PositionProduct
1Hinge, Upper
2U-Clip, Top Mounting (12)
3Eliminator, Smoke
4Starter, Receptacle
5Tip, Rod
6DRIP BOWL 8" W/HOLE CHROME
6WPW10196406 Whirlpool 6" Chrome Drip Bowl
9Extension, Vent Tube
10bracket, oven shell
11Flue Box, Rear
12Flue Box
13WPW10208653 Whirlpool Insulation
14Insulation, Top & Rear
16Cover, Cap
18Oven Liner
19Cover, Chip
21Trim, Maintop (Left Hand)
21Trim, Maintop (Right Hand)
24Clip, Speed
25Stud Screw (2)
26Sheild, Thermostat Bulb
27Rack, Oven (2)
28Rod, Support
29Bracket, Support
30Support, Low Rail (Right Hand)
30Support, Low Rail (Left Hand)
32End Cap (Right Hand)
32End Cap (Left Hand)
34Rail, Back
