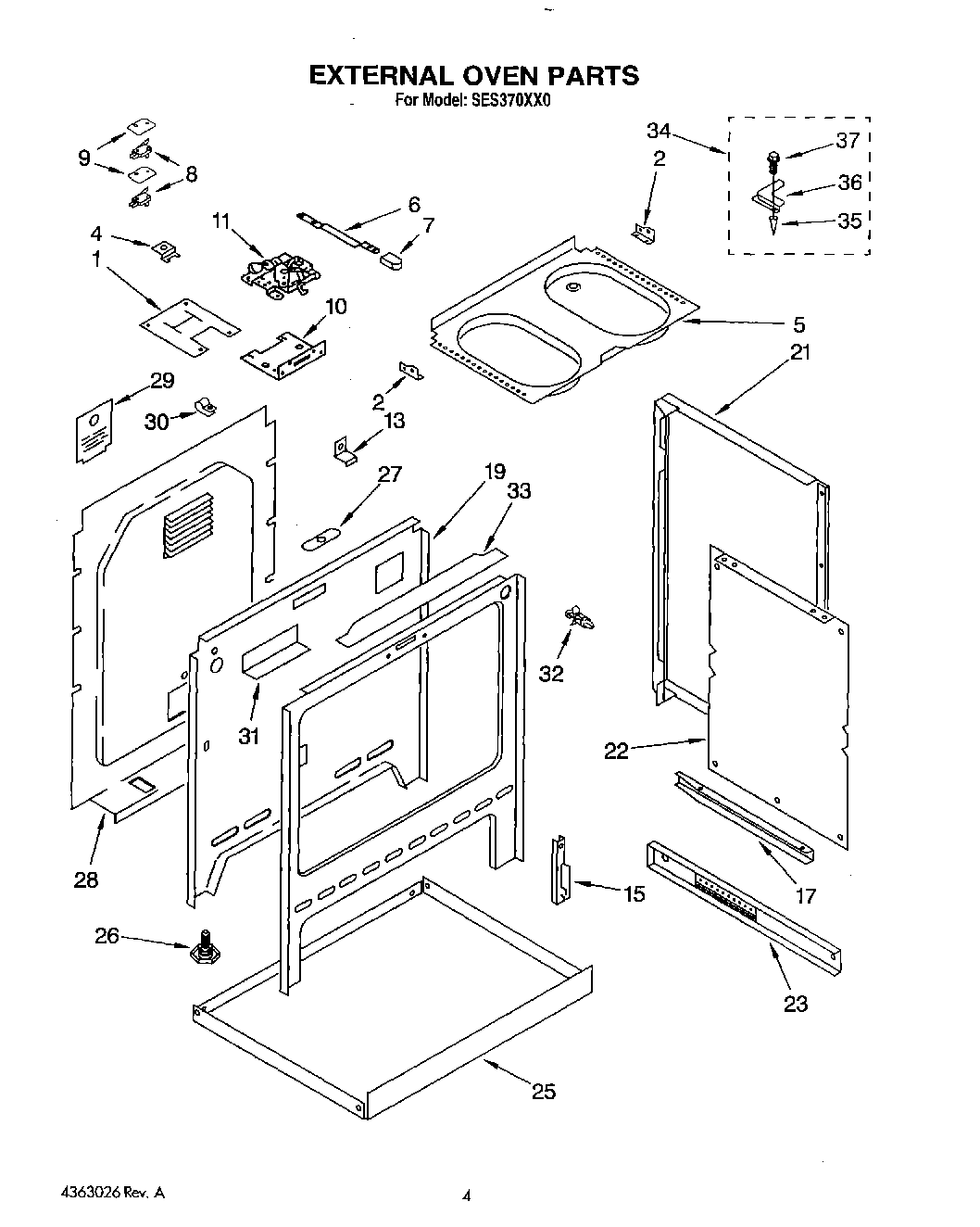

SES370XX0 03 – EXTERNAL OVEN

Products

Position	Product
1	Retainer, Oven Light
2	Hinge, Lower
4	Bracket, Switch
5	Baffle, Drip
6	Handle, Latch
7	Knob, Latch Handle
8	Switch, Oven Door Latch
9	Insulator, Switch
10	Bracket, Latch Mounting
11	Latch Assembly
13	Bracket, Self-Clean
15	Hinge, Oven Door (Left Side)
15	Hinge, Oven Door (R.H.)
17	Brace, Bottom (R.H.)
17	brace, bottom (l.h.)
19	Rear Panel, Lower
21	Panel, End (2) Front
22	Retainer, Insulation (2)
23	track, storage drawer (right side)
23	track, storage drawer (left side)
25	Retainer, Bottom
26	leg, leveling (4)
27	Mounting Plate
28	Cover, Rear
29	Cover, Access
30	488946 Whirlpool Air Conditioner Clamp
31	Heat Shield, Clock
32	Support, Board
33	Frame, Filler Front
34	Anti Tip Kit
35	Anchor (2)
36	Bracket
37	Screw
