SES370XX0 04 – CONTROL PANEL

SES370XX0 04 – CONTROL PANEL

Written by

in

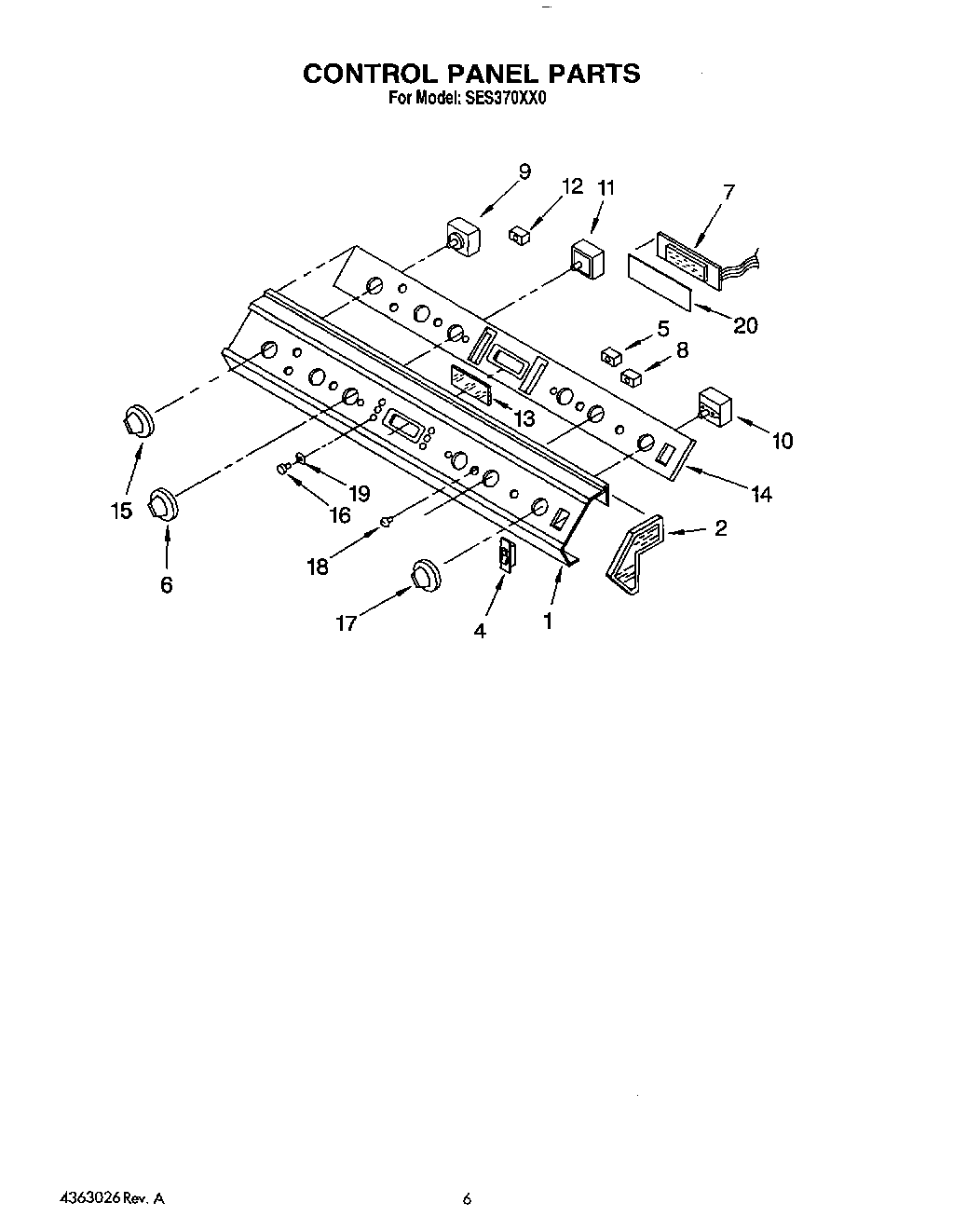

SES370XX0 04 – CONTROL PANEL

Products

Position	Product
1	Control Panel
2	End Cap (Left Side)
2	End Cap (Right Side)
4	Switch, Rocker
6	Knob, Burner (4)
7	Clock/Timer
9	Switch, Selector
10	Control, Thermostat
11	Switch, Infinite (4)
12	Light, Indicator (3)
13	Glass, Control Panel
14	Bracket, Clock
15	Knob, Selector
16	Button, Clock
17	Knob, Thermostat
18	Lens, Indicator Light (2)
19	Bushing, Clock Button
20	Lens, Clock-Filter
