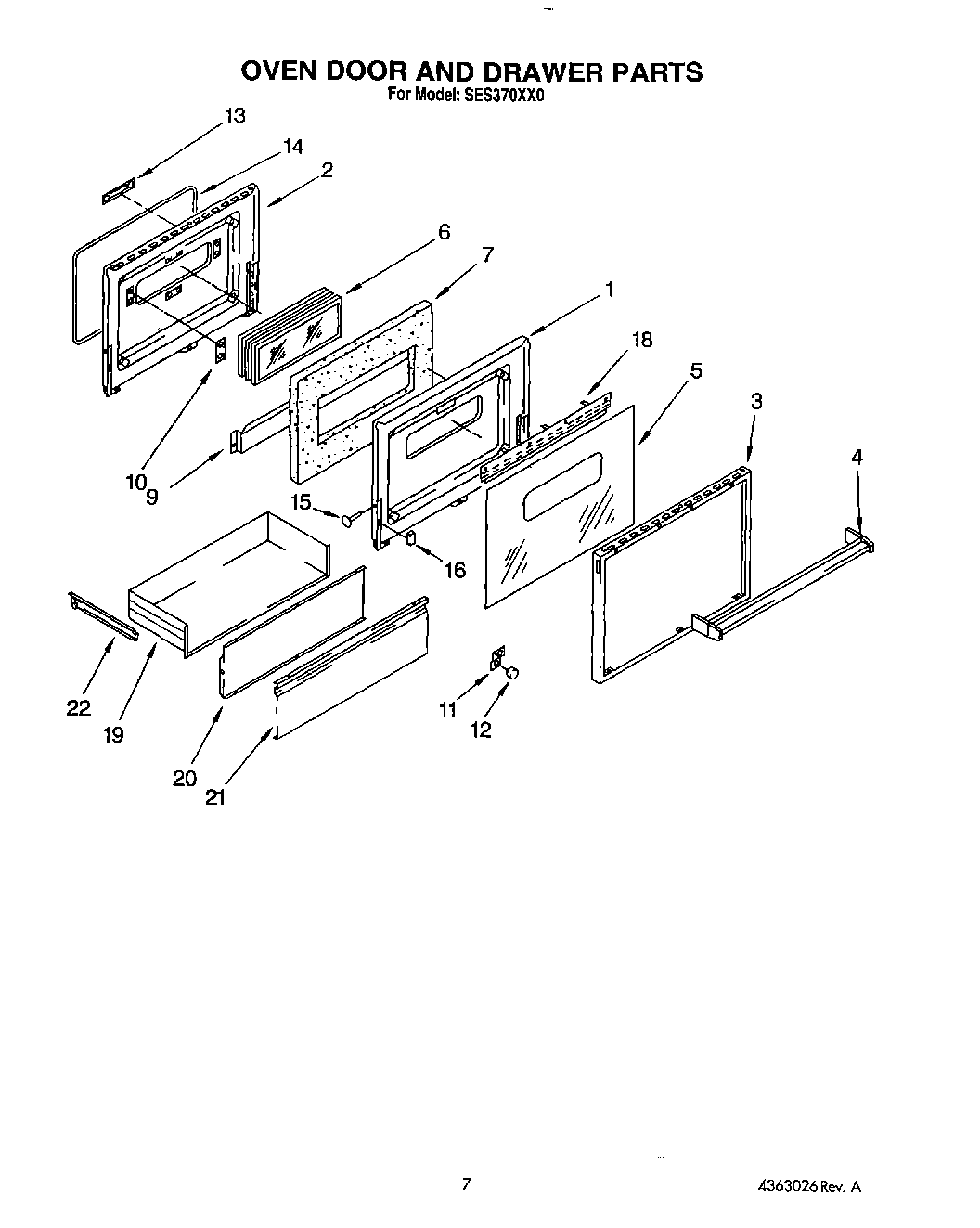

SES370XX0 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Retainer, Insulation
2	Pad, Oven Door
3	Frame
4	Bottom, Oven
5	Panel, Black Glass
6	Window Assembly
7	Insulation, Door
9	Baffle, Heat
10	Retainer, Window (4)
11	bracket, glass support (4)
12	Bumper, Rubber
13	Plate, Latch
14	gasket assembly
15	Pin-Hinge (2)
16	Bumper, Window (2)
18	Trim, Top Door
19	Wrapper, Storage Drawer
20	Liner, Door Panel
21	Panel, Drawer (Black)
22	Runner (R.H.)
22	runner (l.h.)
