SES374HQ0 04 – DOOR

SES374HQ0 04 – DOOR

Written by

in

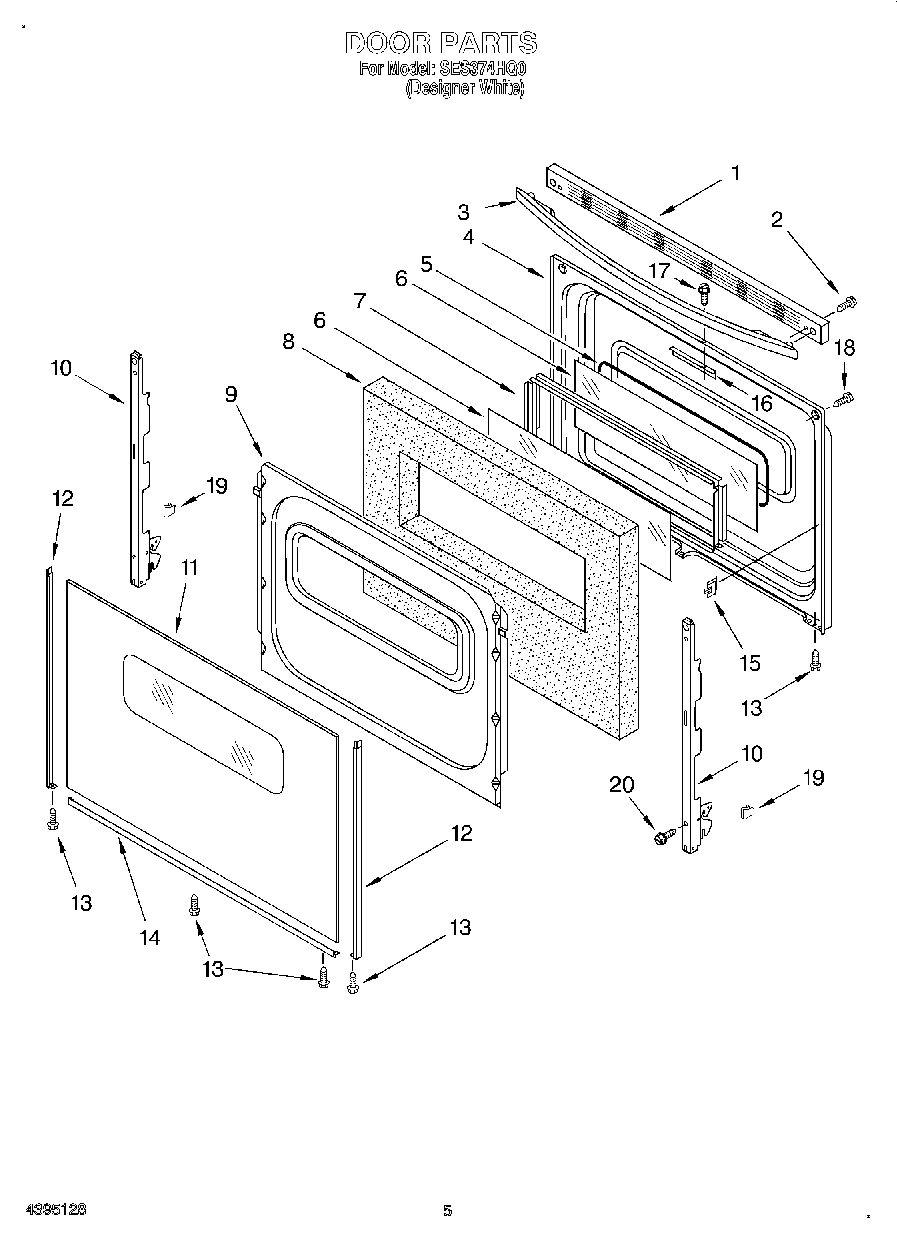

SES374HQ0 04 – DOOR

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8Insulation, Door
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP9762476 Whirlpool Door Glass
13W10491985 Whirlpool Screw
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
