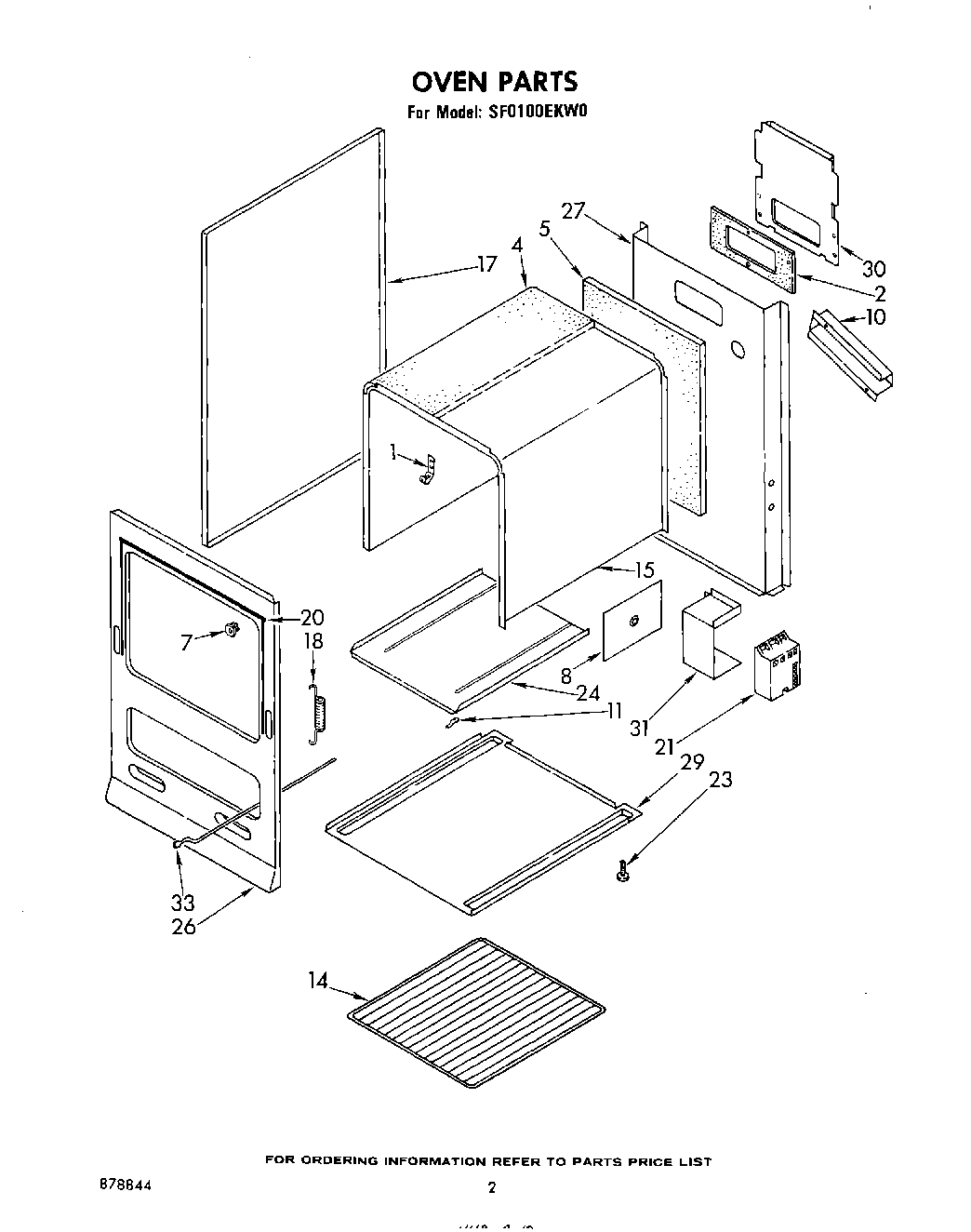

SF0100EKW0 02 – OVEN , LITERATURE

Products

Position	Product
1	98005642 Whirlpool Clip
2	Gasket, Vent Deflector
4	WPW10208653 Whirlpool Insulation
7	98460 Whirlpool Nut
8	Cover, Hinge
10	Raceway, Wire
11	Clip, Oven Bottom Plate (2)
14	Rack, Oven
15	Oven, 20“ Standard (Not Serviceable)
17	Panel, End (2) (Harvest Gold)
17	Panel, End (2) (Coffee)
17	Panel, End (2) (Almond)
17	Panel, End (2) (White)
18	Spring, Oven Door (2)
20	Seal, Oven Door (Top)
20	Seal, Oven Door (Side (2))
21	Control, Ignitor
23	Screw, Leveling (4)
24	Plate, Oven Bottom
26	Front, Main
27	Back, Main
29	Base, Main
30	Deflector, Vent
31	Cover, Ignitor Control
33	Booklet, Use & Care
33	Rod, Broiler Runner
33	Instructions, Installation
33	List, Repair Parts
