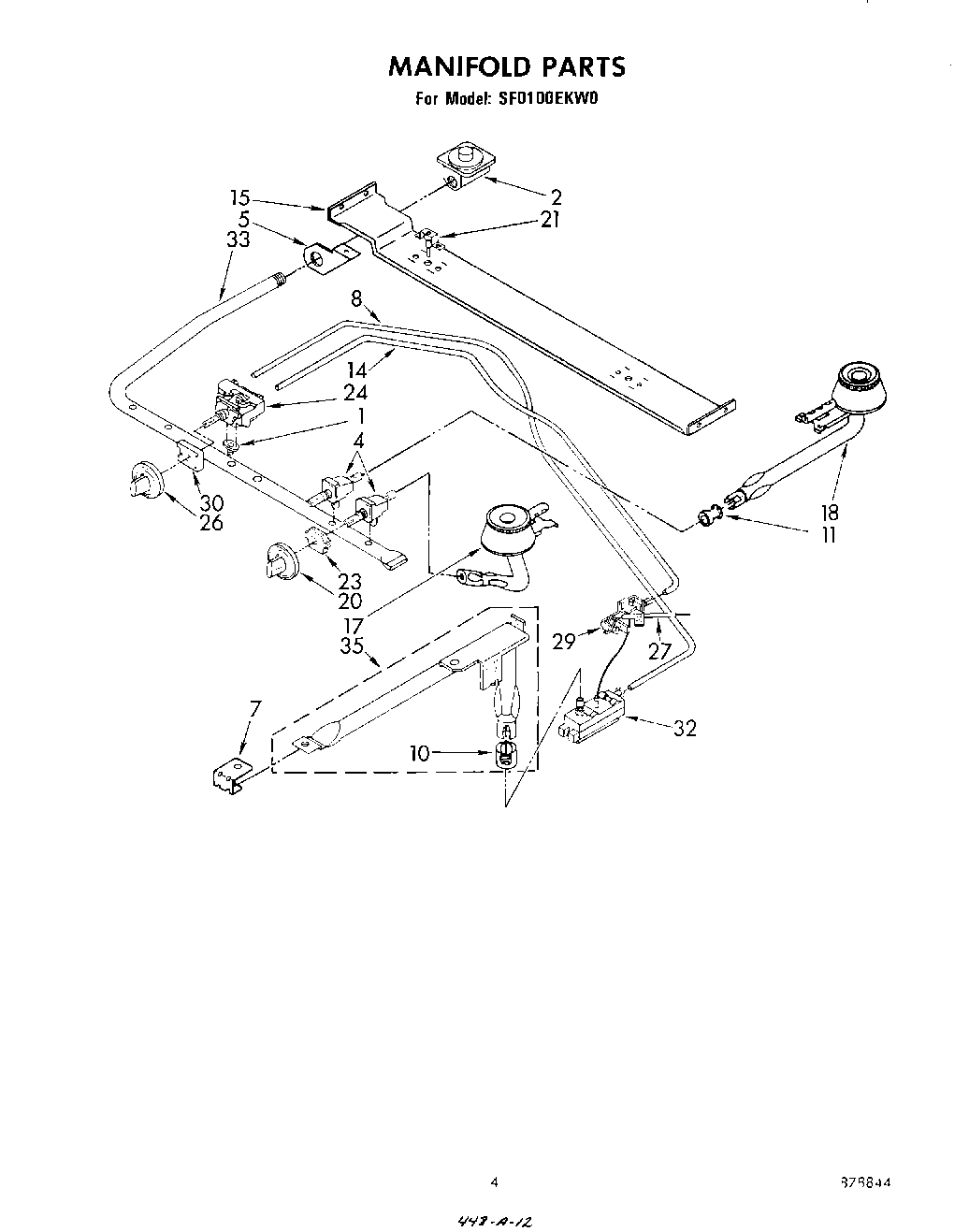

| 1 | Fitting, Flange |
| 2 | Regulator, Pressure |
| 4 | Valve, Top Burner (4) |
| 5 | Support, Inlet Pipe |
| 7 | Support, Oven Burner Front |
| 8 | Tubing, Oven |
| 10 | Shutter, Oven Burner Air |
| 11 | Cap, Top Burner Air Mixer |
| 14 | Tubing, Control/Pilot |
| 15 | Hanger, Top Burner |
| 17 | Burner, Top Front (2) (Includes Illus. 16) |
| 18 | Burner, Top Rear (2) (Includes Illus. 16) |
| 20 | Handle, Top Valve (4) |
| 21 | Ignitor, Top Burner (Left) |
| 21 | Ignitor, Top Burner (Right) |
| 23 | Switch, Top Ignitor (4) |
| 24 | Control, Oven |
| 26 | Dial, Oven Control |
| 27 | Ignitor, Oven Burner |
| 29 | Lighter, Oven Burner |
| 30 | WP878009 Whirlpool Igniter Switch |
| 32 | Valve, Oven Light Safety |
| 33 | Pipe, Manifold |
| 35 | Burner, Oven |
