SF0100EKW2 02 – OVEN , LITERATURE
Written by
in

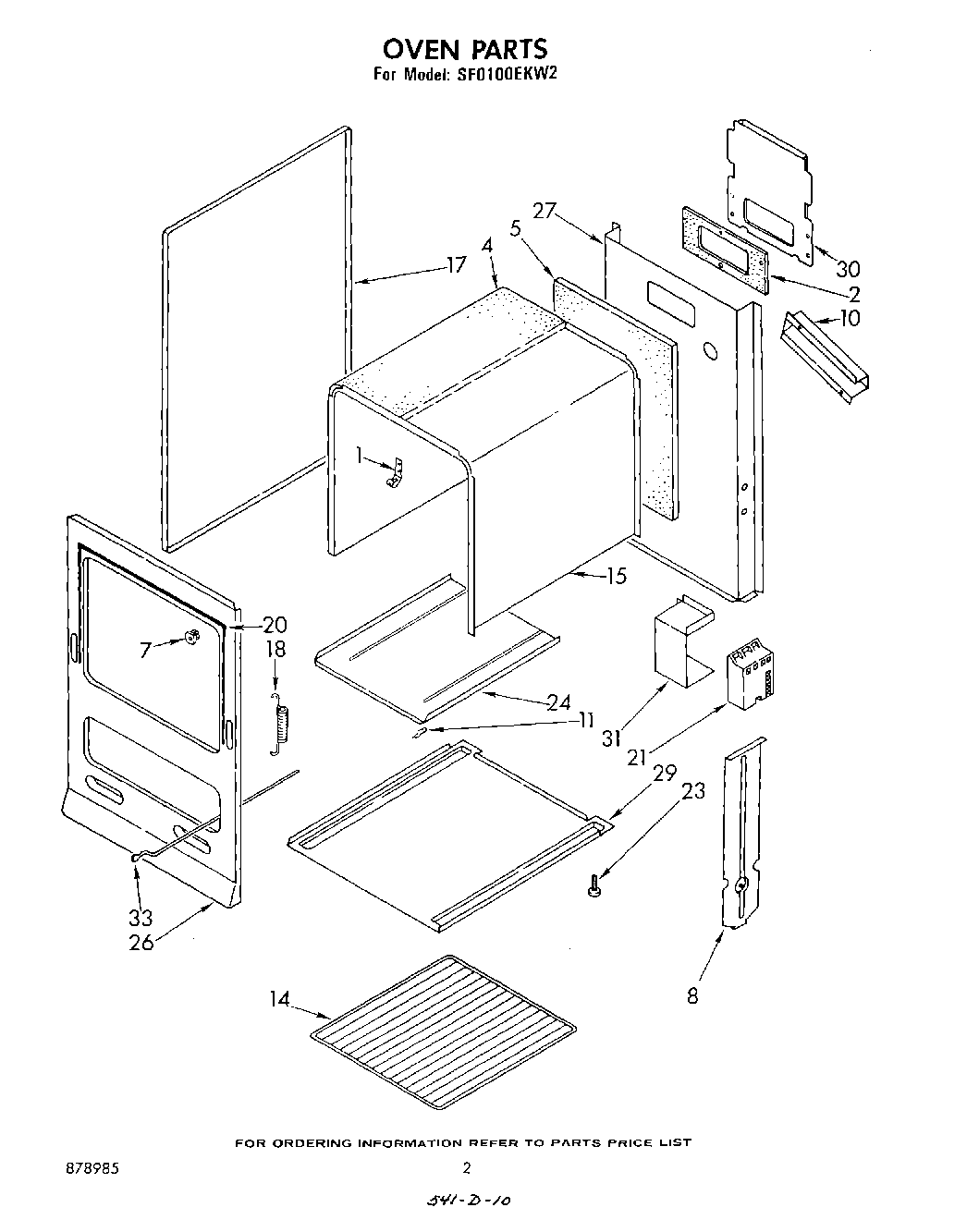

SF0100EKW2 02 – OVEN , LITERATURE
Products
Position
Product
1
98005642 Whirlpool Clip
2
Gasket, Vent Deflector
4
WPW10208653 Whirlpool Insulation
7
98460 Whirlpool Nut
8
Cover, Hinge
10
Raceway, Wire
11
Clip, Oven Bottom Plate (2)
14
Rack, Oven
15
Oven, 20“ Standard (Not Serviceable)
17
Panel, End (2) (Coffee)
17
Panel, End (2) (Harvest Gold)
17
Panel End (2) (Toast)
17
Panel End (2) (Platinum)
17
Panel End (2)
17
Panel, End (2) (Almond)
17
Panel, End (2) (White)
18
Spring, Oven Door (2)
20
Seal, Oven Door (Side (2))
20
Seal, Oven Door (Top)
21
Control, Ignitor
23
Screw, Leveling (4)
24
Plate, Oven Bottom
26
Front, Main
27
Back, Main
29
Base, Main
30
Deflector, Vent
31
Cover, Ignitor Control
33
List, Repair Parts
33
Instructions, Installation
33
Rod, Broiler Runner
33
Booklet, Use & Care
←
