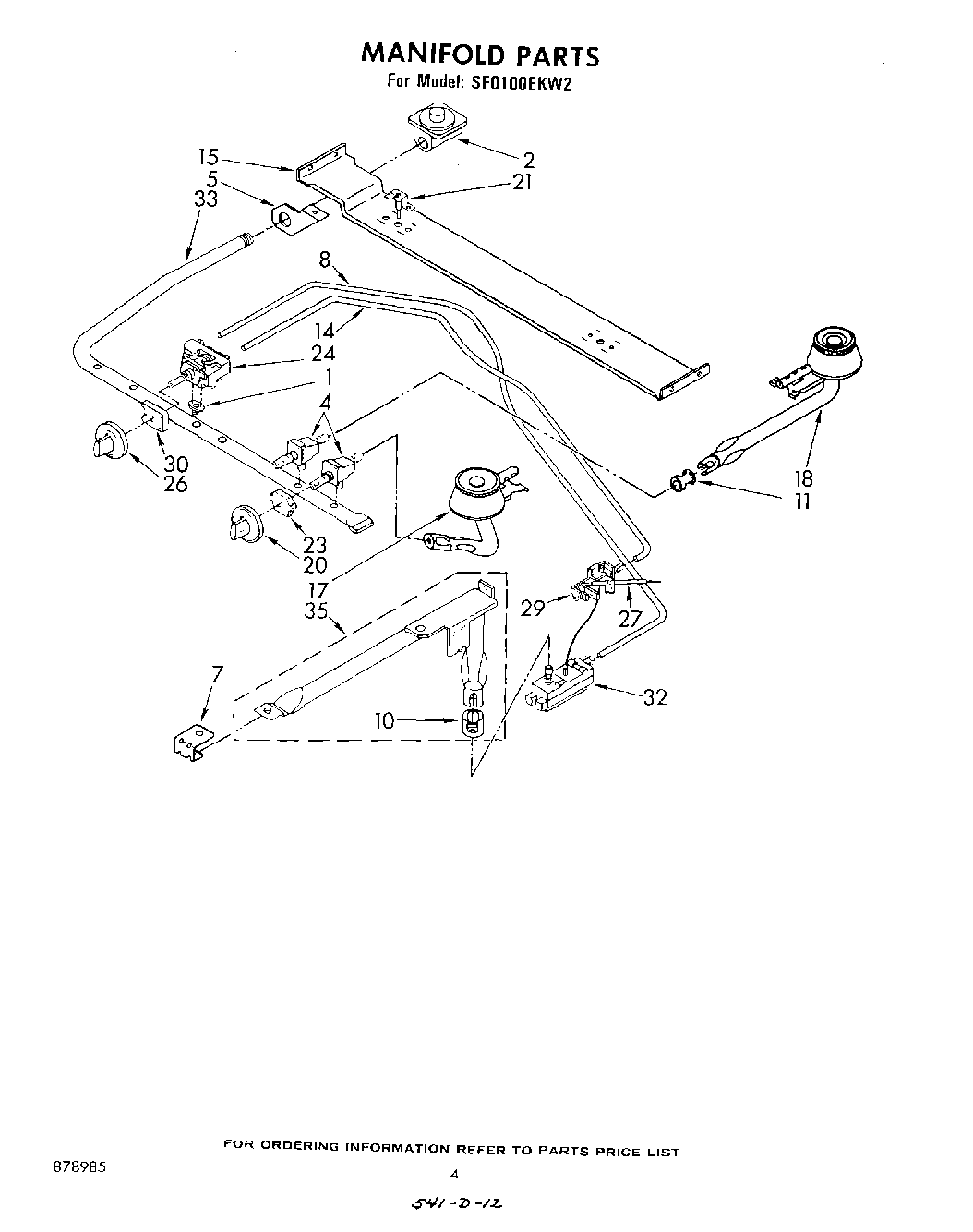

SF0100EKW2 03 – MANIFOLD

Products

Position	Product
1	Fitting, Flange
2	Regulator, Pressure
4	Valve, Top Burner (4)
5	Support, Inlet Pipe
7	Support, Oven Burner Front
8	Tubing, Oven
10	Shutter, Oven Burner Air
11	Cap, Top Burner Air Mixer
14	Tubing, Control/Pilot
15	Hanger, Top Burner
17	Burner, Top Front (2) (Includes Illus. 16)
18	Burner, Top Rear (2) (Includes Illus. 16)
20	Handle, Top Valve (4)
21	Ignitor, Top Burner (Left)
21	Ignitor, Top Burner (Right)
23	Switch, Top Ignitor (4)
24	Control, Oven
26	Dial, Oven Control
27	Ignitor, Oven Burner
29	Lighter, Oven Burner
30	WP878009 Whirlpool Igniter Switch
32	Valve, Oven Light Safety
33	Pipe, Manifold
35	Burner, Oven
