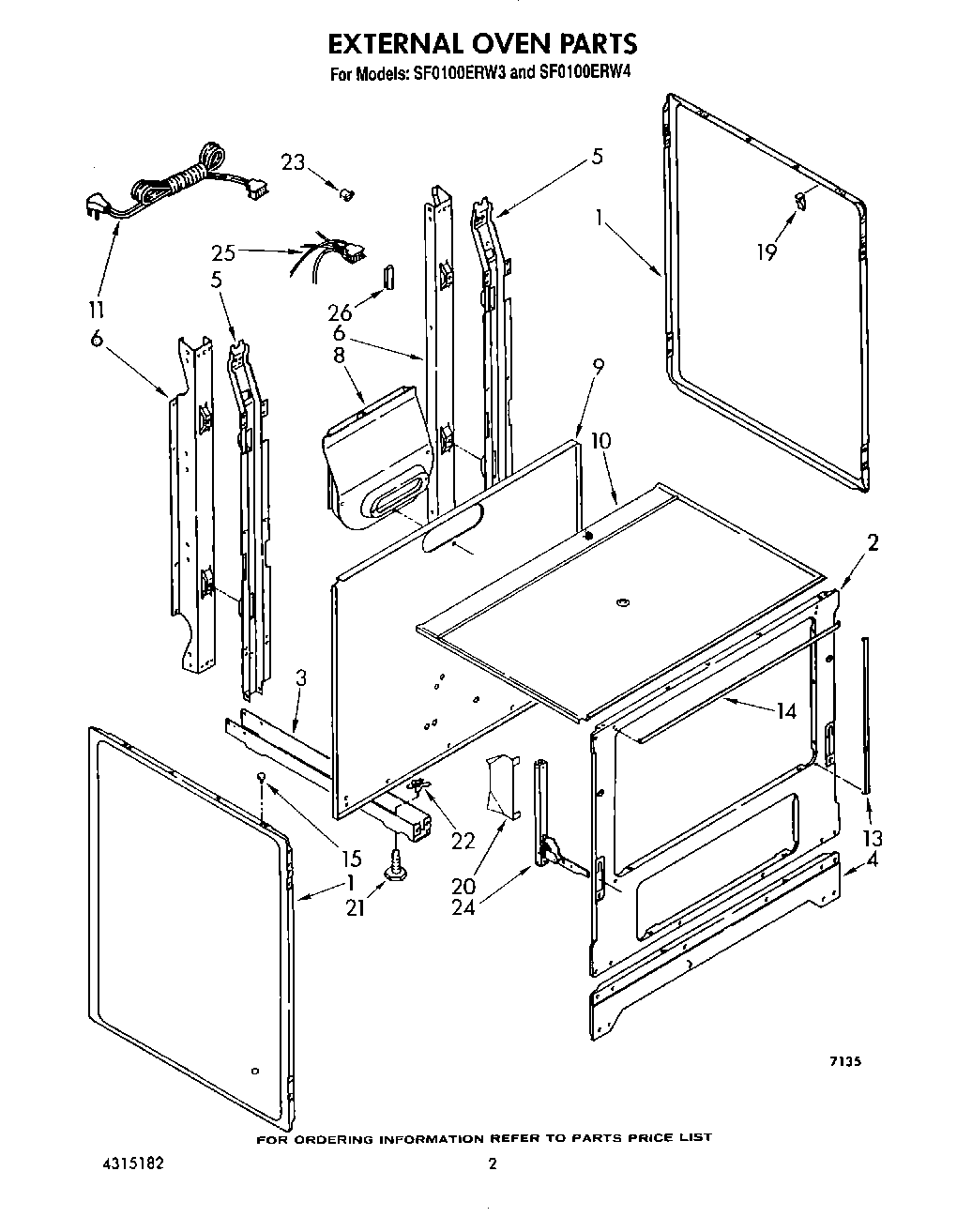

SF0100ERW3 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
11	WP9757891 Whirlpool Power Cord
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
15	Bumper, Cooktop (2)
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Strain Relief
24	Hinge, Door (2)
25	Block, Disconnect
26	Safe Edge
