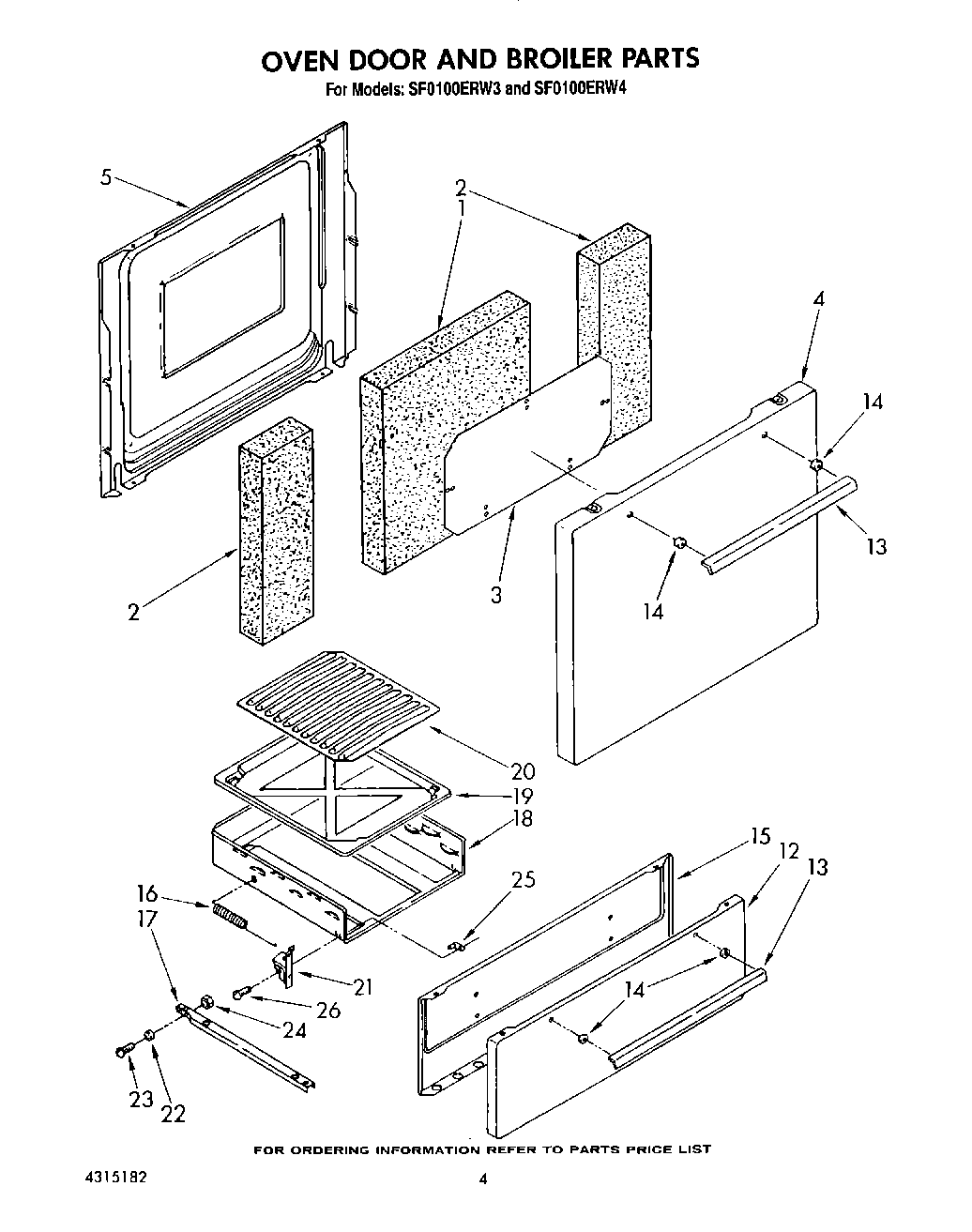

SF0100ERW4 03 – OVEN DOOR AND BROILER

SF0100ERW4 03 – OVEN DOOR AND BROILER

Written by

in

SF0100ERW4 03 – OVEN DOOR AND BROILER

Products

PositionProduct
1Insulation
2Insulation
3Baffle
4Panel, Door (Almond)
4Panel, Door (White)
5Liner, Door
12Burner, Oven
12Panel, Broiler Use With Model SF0100ER-3 (Almond Use With Model SF0100ER-4)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Screw, 10-12 X 5/8 (2)
13Handle, Broiler Door
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
