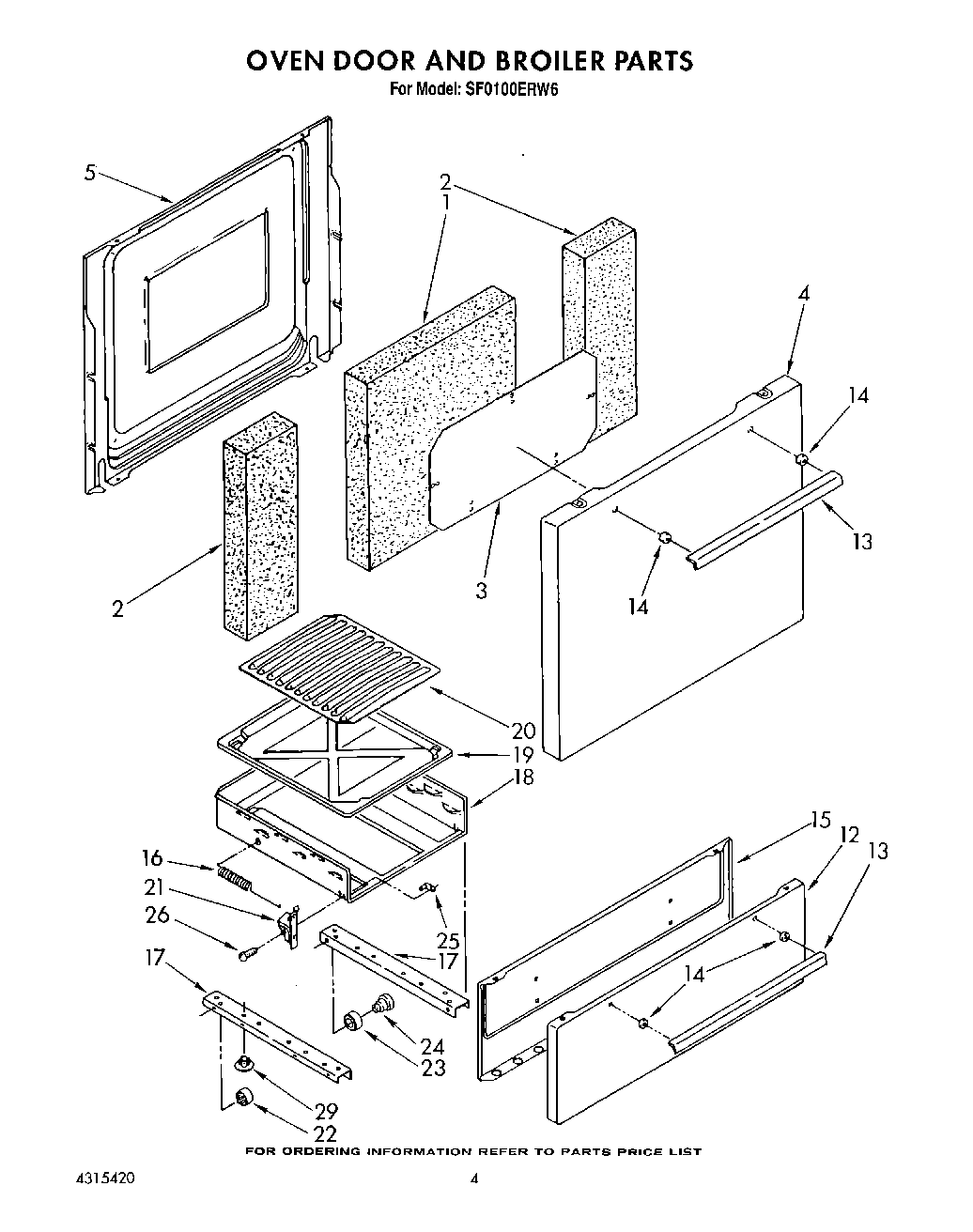

SF0100ERW6 03 – OVEN DOOR AND BROILER

Products

PositionProduct
1Insulation
2Insulation
3Baffle
4Panel, Door (Almond)
4Panel, Door (White)
5Liner, Door
12Panel, Broiler (Almond)
12Panel, Broiler (White)
13Handle, Broiler Door
13Screw, 10-12 X 5/8 (2)
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
21WP308685 Whirlpool Microwave Screw
22Bumper, Nylon (4)
23Roller (2)
24Pin, Roller (2)
25Plate (2)
26Screw (2)
29Hole Plug (2)
