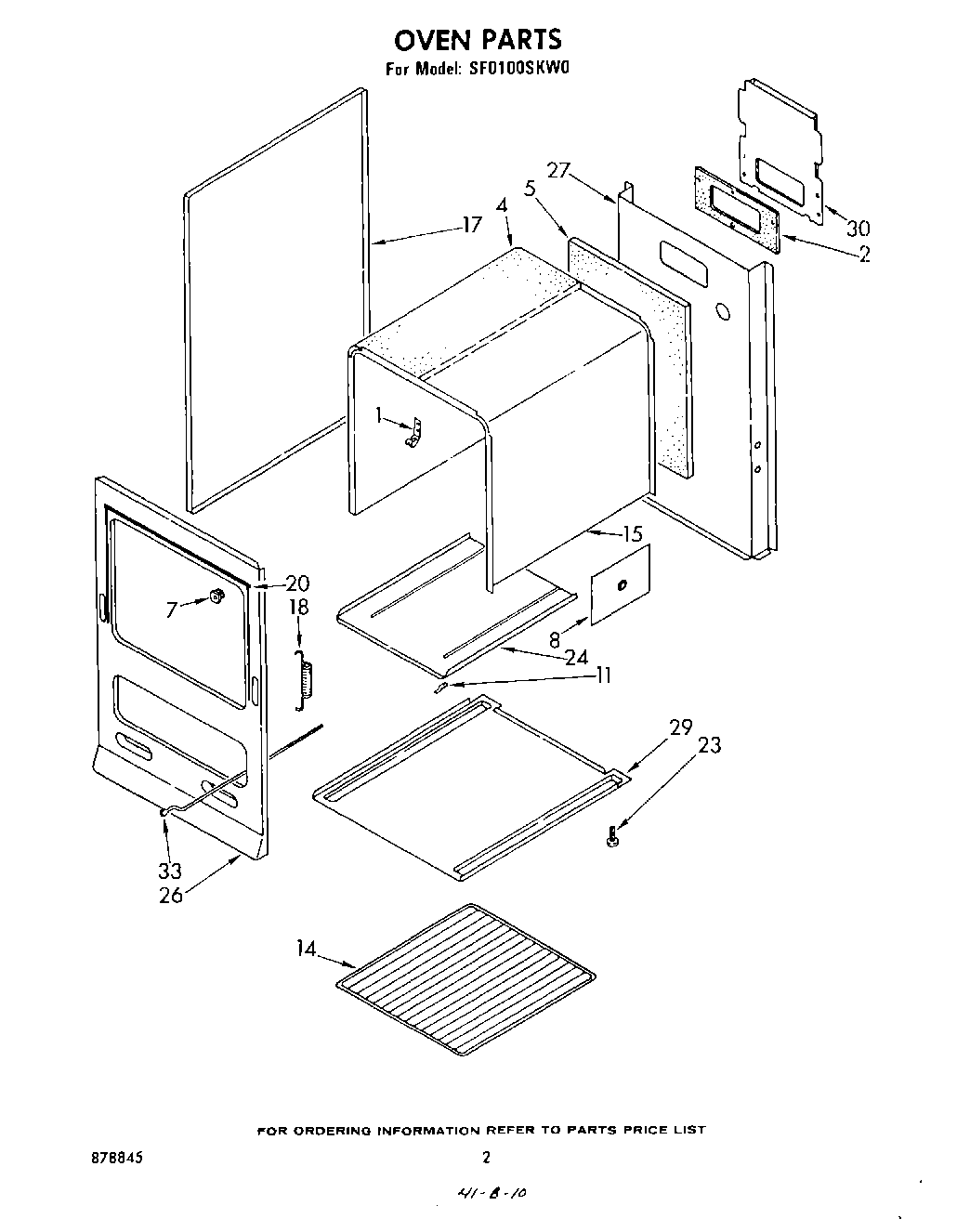

SF0100SKW0 02 – OVEN , LITERATURE

Products

Position	Product
1	98005642 Whirlpool Clip
2	Gasket, Vent Deflector
4	WPW10208653 Whirlpool Insulation
7	98460 Whirlpool Nut
8	Cover, Hinge
11	Clip, Oven Bottom Plate (2)
14	Rack, Oven
15	Oven, 20“ Standard (Not Serviceable)
17	Panel, End (2) (Coffee)
17	Panel, End (2) (Harvest Gold)
17	Panel, End (2) (White)
17	Panel, End (2) (Almond)
18	Spring, Oven Door (2)
20	Seal, Oven Door (Top)
20	Seal, Oven Door (Side (2))
23	Screw, Leveling (4)
24	Plate, Oven Bottom
26	Front, Main
27	Back, Main
29	Base, Main
30	Deflector, Vent
33	Rod, Broiler Runner
33	Instructions, Installation
33	Booklet, Use & Care
33	List, Repair Parts
