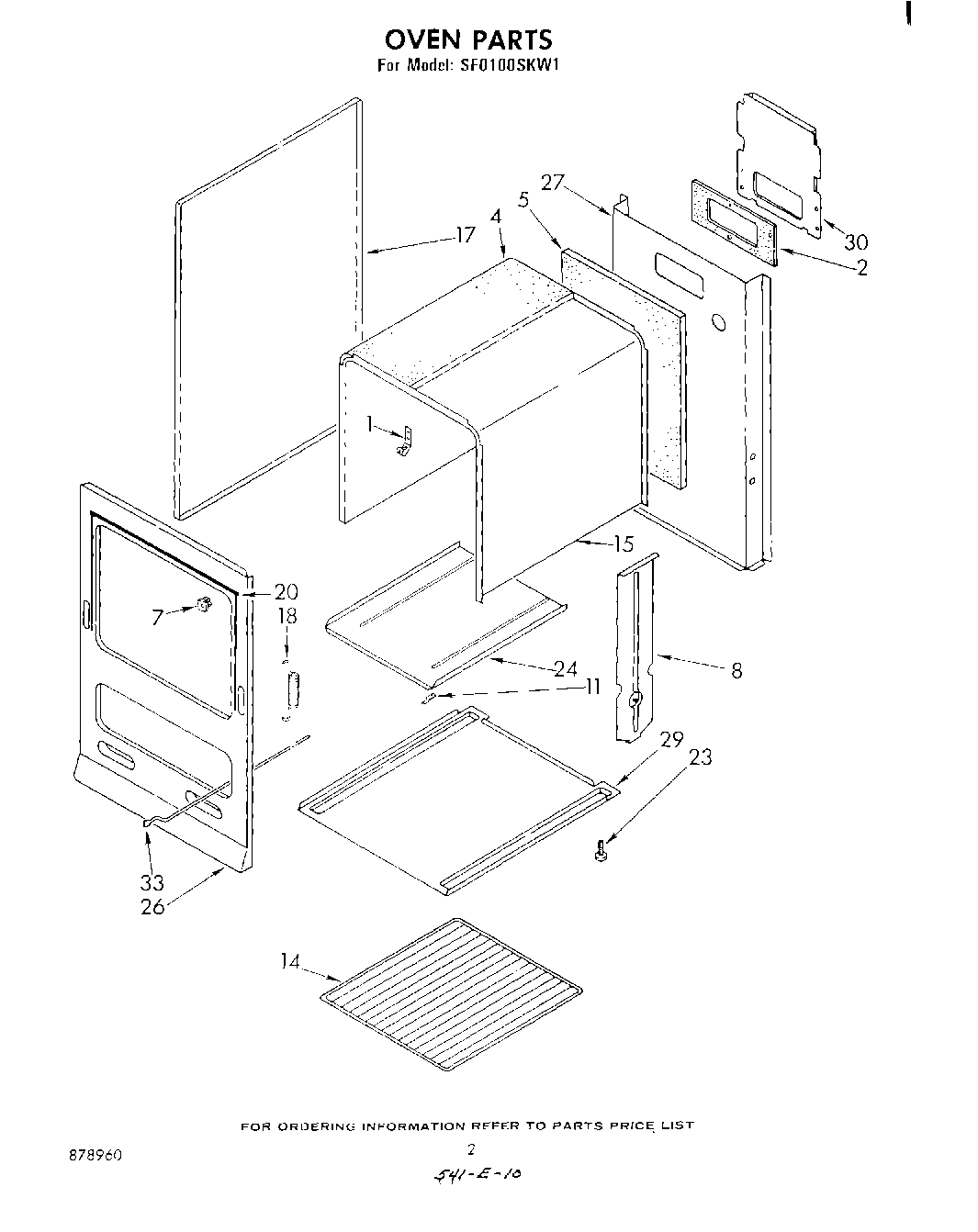

SF0100SKW1 02 – OVEN , LITERATUREadmin2025-04-26T12:54:03+00:00SF0100SKW1 02 – OVEN , LITERATURE
Products
| Position | Product |
|---|
| 1 | 98005642 Whirlpool Clip |
| 2 | Gasket, Vent Deflector |
| 4 | WPW10208653 Whirlpool Insulation |
| 7 | 98460 Whirlpool Nut |
| 8 | Cover, Hinge |
| 11 | Clip, Oven Bottom Plate (2) |
| 14 | Rack, Oven |
| 15 | Oven, 20`` Standard (Not Serviceable) |
| 17 | Panel, End (2) (Coffee) |
| 17 | Panel End (2) (Toast) |
| 17 | Panel, End (2) (Harvest Gold) |
| 17 | Panel End (2) (Platinum) |
| 17 | Panel, End (2) (White) |
| 17 | Panel, End (2) (Almond) |
| 18 | Spring, Oven Door (2) |
| 20 | Seal, Oven Door (Top) |
| 20 | Seal, Oven Door (Side (2)) |
| 23 | Screw, Leveling (4) |
| 24 | Plate, Oven Bottom |
| 26 | Front, Main |
| 27 | Back, Main |
| 29 | Base, Main |
| 30 | Deflector, Vent |
| 33 | Booklet, Use & Care |
| 33 | Rod, Broiler Runner |
| 33 | Instructions, Installation |
| 33 | Box, Burner |
