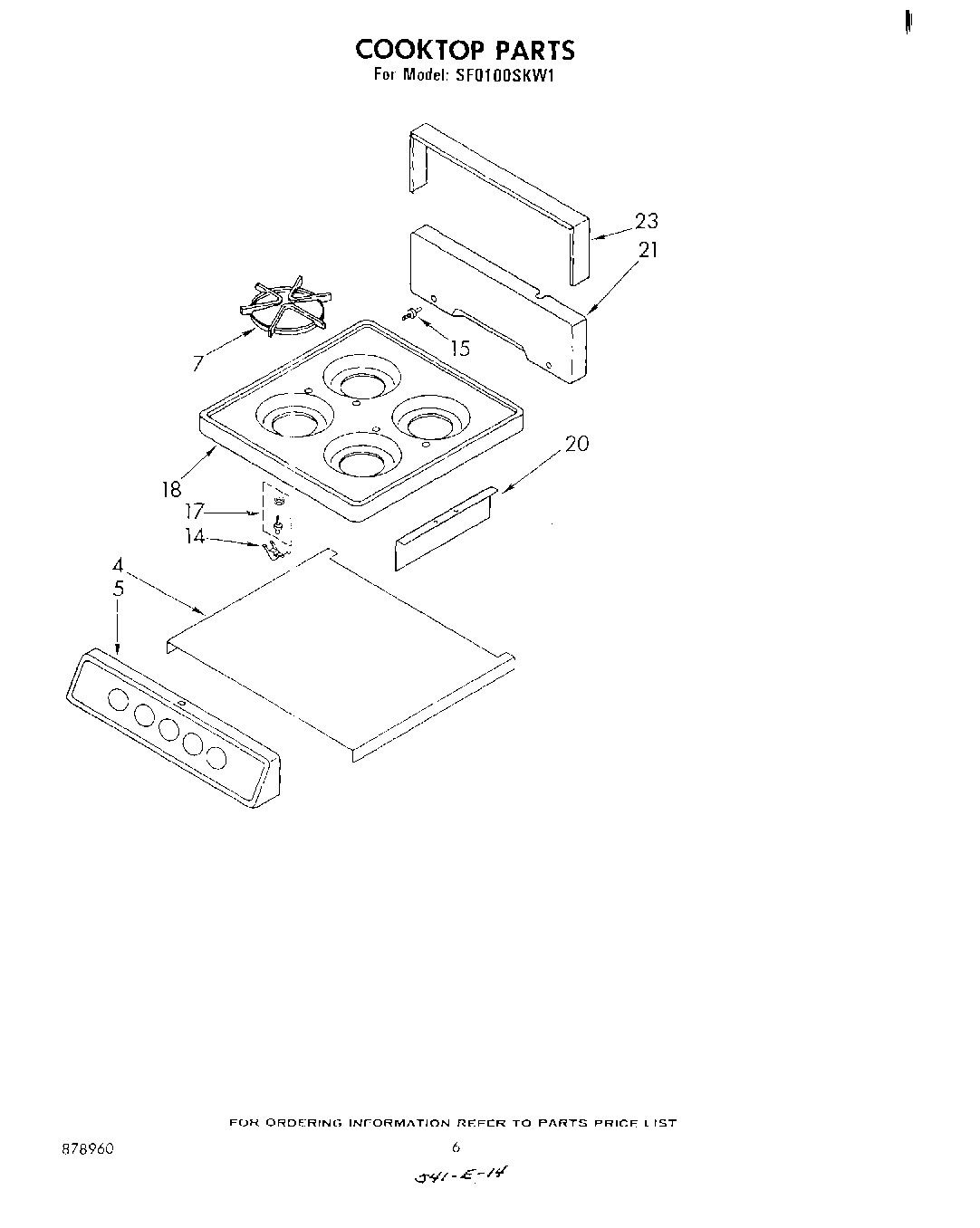

| 4 | Bottom, Burner Box |
| 5 | Panel, Manifold (Platinum) |
| 5 | Panel, Manifold (Toast) |
| 5 | Panel, Manifold (Almond) |
| 5 | panel, manifold (white) |
| 5 | Panel, Manifold (Harvest Gold) |
| 5 | Panel, Manifold (Coffee) |
| 7 | Grate, Burner (4) |
| 14 | Catch, Main Top (2) |
| 15 | Nut, Projection Weld (2) |
| 17 | Strike, Main Top (2) |
| 18 | Top, Main (Harvest Gold) |
| 18 | Top, Main (Coffee) |
| 18 | Top, Main (Toast) |
| 18 | top, main (white) |
| 18 | Top, Main (Platinum) |
| 18 | top, main (almond) |
| 20 | Baffle, Burner Box |
| 21 | Panel, Backguard (White) |
| 21 | Panel, Backguard (Coffee) |
| 21 | Panel, Backguard (Almond) |
| 21 | Panel, Backguard (Harvest Gold) |
| 21 | Panel, Backguard (Toast) |
| 21 | Panel, Backguard (Platinum) |
| 23 | Frame, Backguard |
