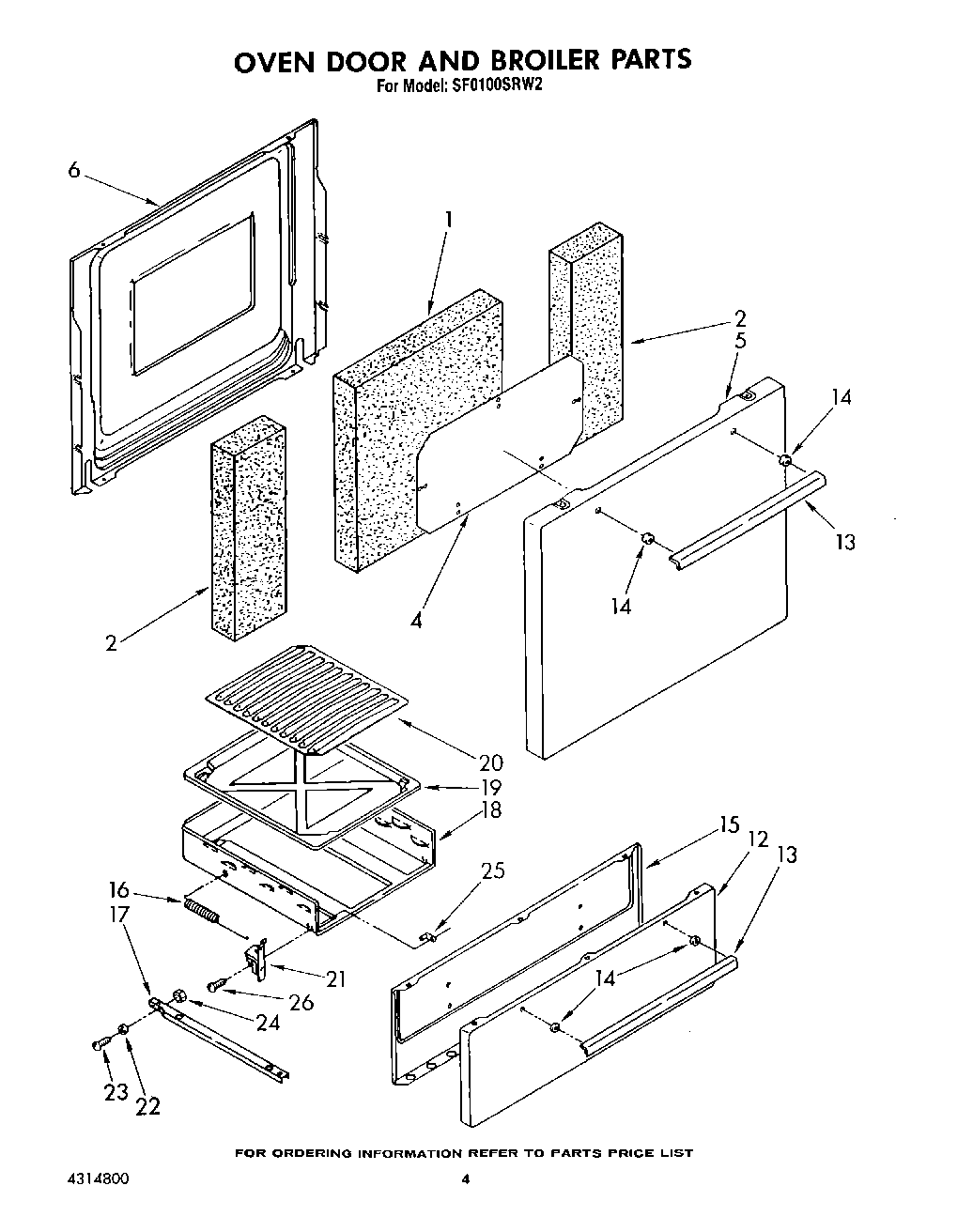

SF0100SRW2 03 – OVEN DOOR AND BROILER

Products

PositionProduct
1Insulation
2Insulation
4Baffle
5Panel, Door (White)
5Panel, Door (Almond)
6Liner, Door
12Burner, Oven
12Panel, Broiler Use With Model SF0100ER-3 (Almond Use With Model SF0100ER-4)
13Washer (2)
13Handle, Broiler Door
13Screw, 10-12 X 5/8 (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21Hinge, Door (L.H.)
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21WP308685 Whirlpool Microwave Screw
22Roller (2)
23Pin, Roller (2)
24Nut (4)
25Plate (2)
26Screw (2)
