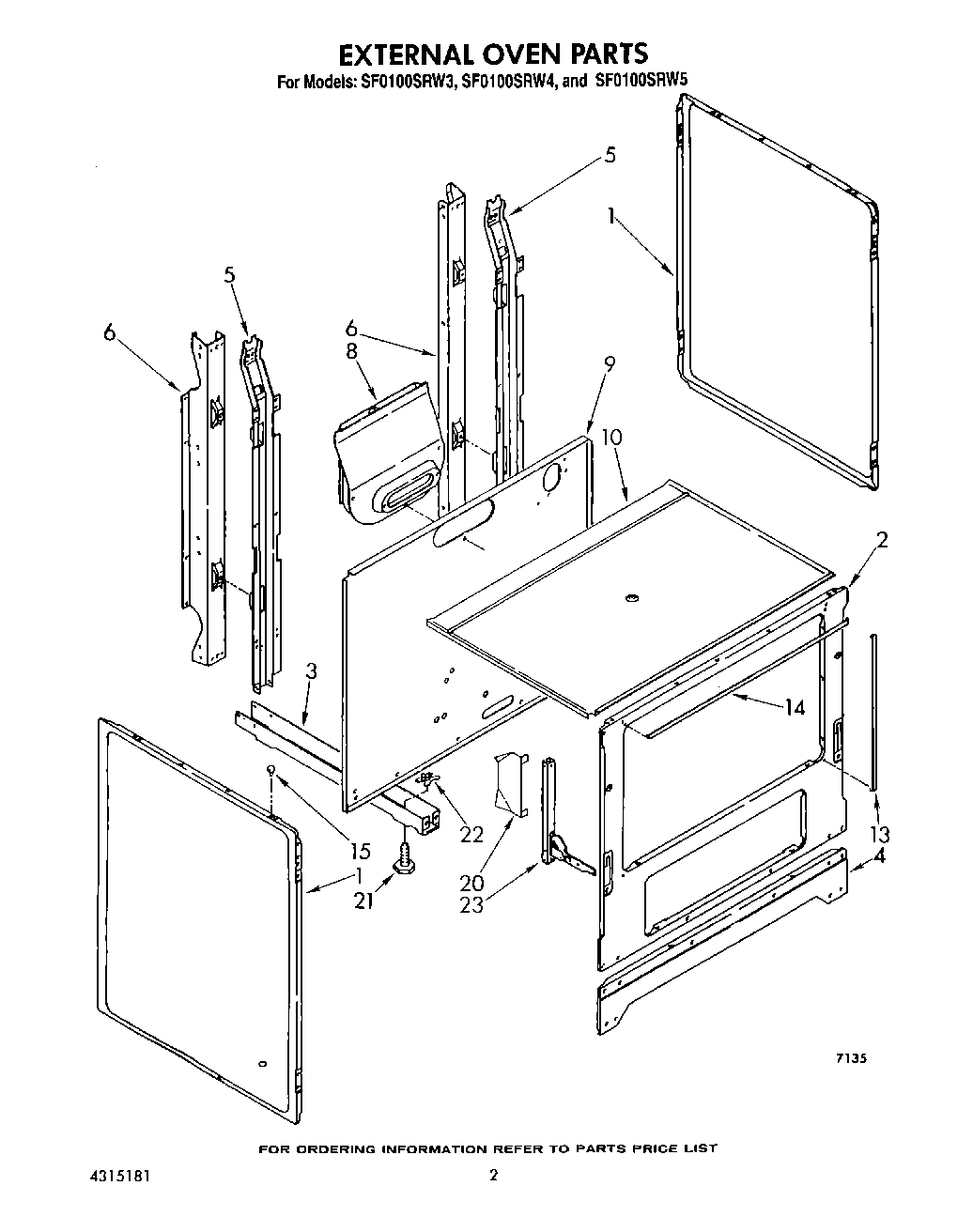

SF0100SRW4 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
13	Seal, Door (2) (Side)
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
14	Seal, Door (Top) (Charcoal Gray)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Hinge, Door (2)
