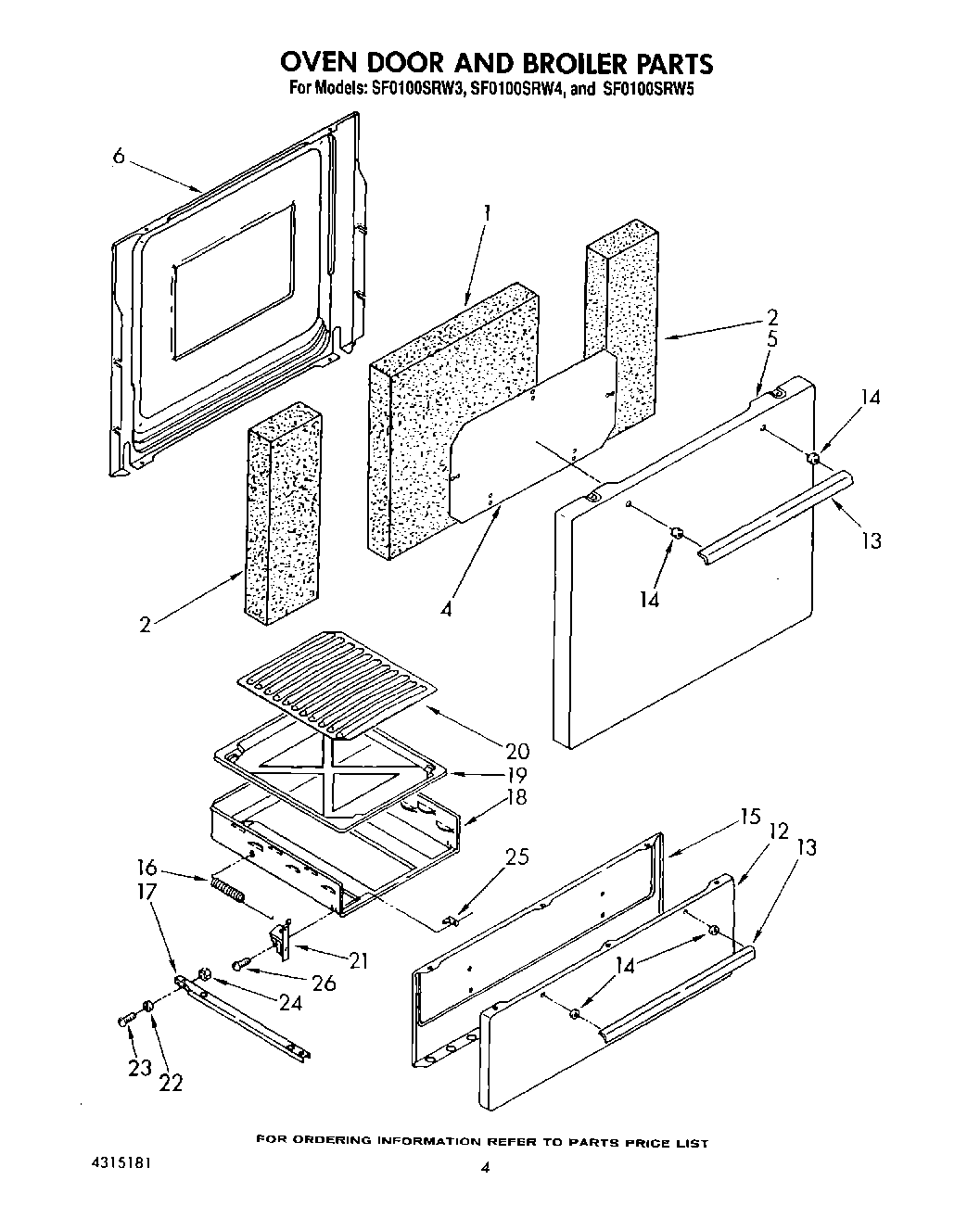

SF0100SRW5 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Insulation
2	Insulation
4	Baffle
5	Panel, Door (White)
5	Panel, Door (Almond)
6	Liner, Door
12	Burner, Oven
12	Panel, Broiler (White)
12	Panel, Broiler (Almond)
12	Panel, Broiler Use With Model SF0100ER-3 (Almond Use With Model SF0100ER-4)
13	Handle, Broiler Door
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Liner, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door (R.H.)
21	Hinge, Door (L.H.)
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
22	Roller (2)
23	Pin, Roller (2)
24	Nut (4)
25	Plate (2)
26	Screw (2)
