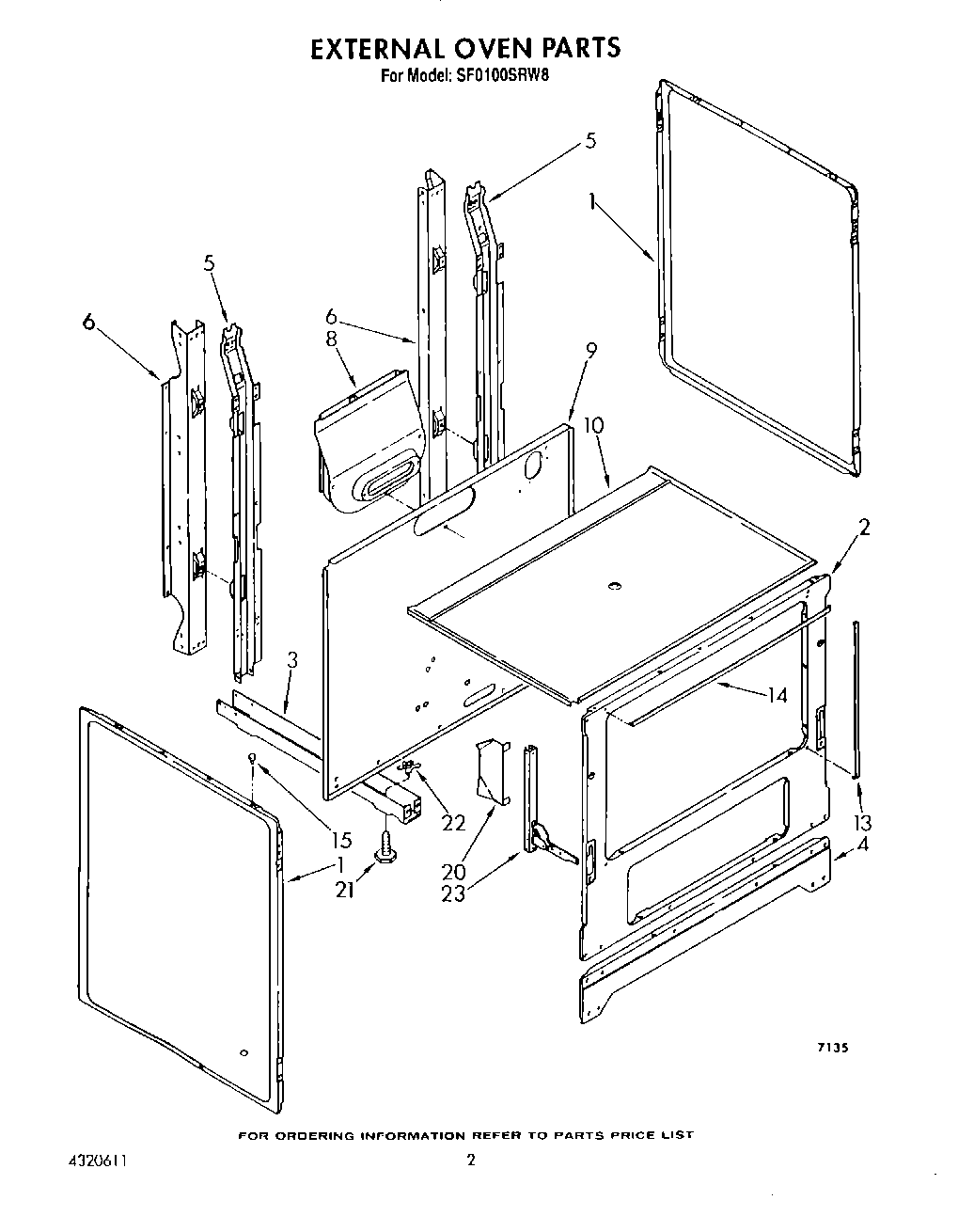

SF0100SRW8 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
4	Screw, 10-12 X 1/2 (4)
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Charcoal Gray)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Hinge, Door (2)
