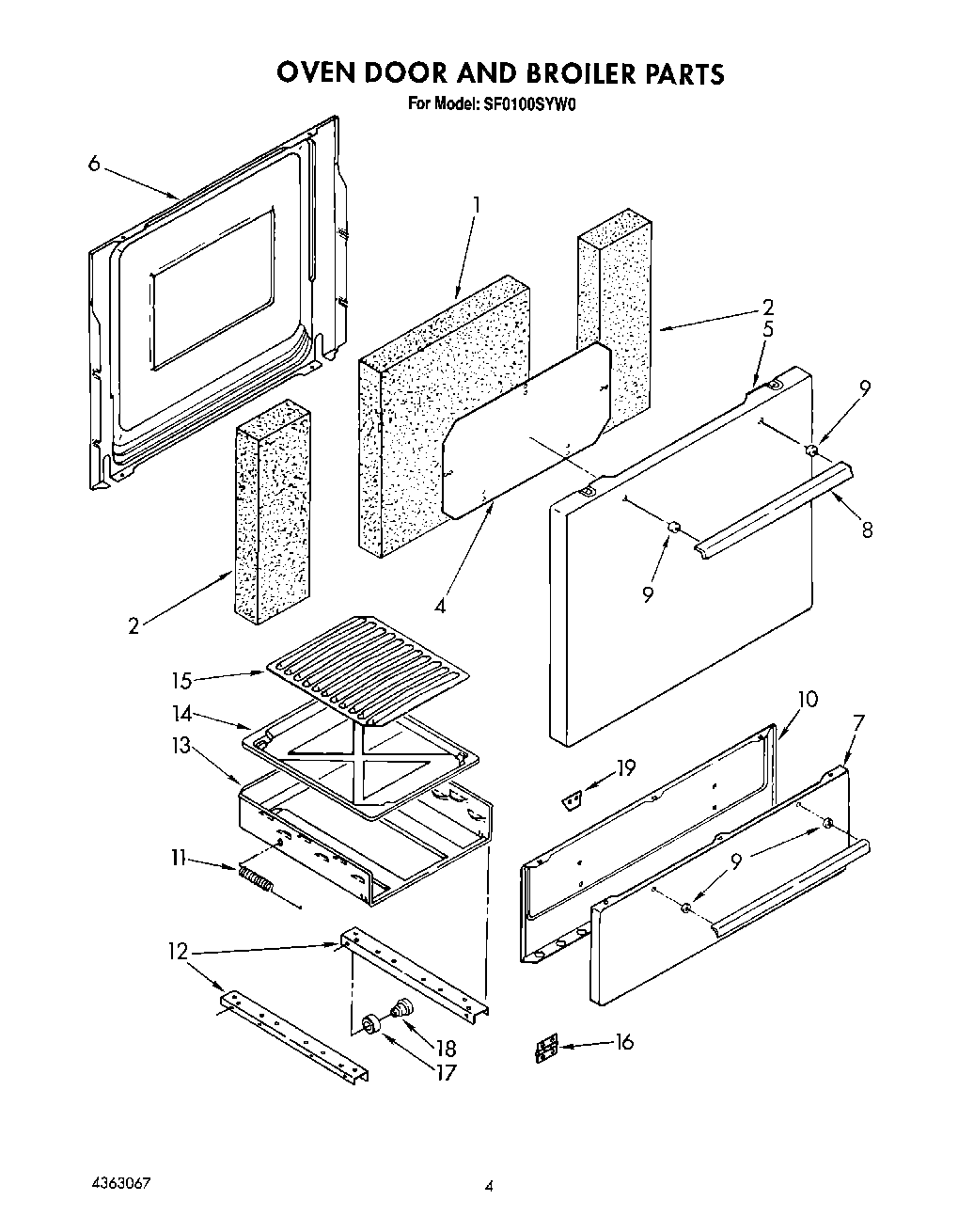

SF0100SYW0 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Insulation
2	Insulation
4	Baffle
5	Panel, Door (Almond)
5	Panel, Door (White)
6	Liner, Door
7	Panel, Broiler (White)
7	Panel, Broiler (Almond)
8	Screw, 10-12 X 5/8 (2)
8	Handle, Broiler Door
8	Washer (2)
9	Spacer (4)
10	Liner, Broiler Door
11	Spring (2)
12	Track, Upper (2)
13	Carriage, Broiler
14	4396923 Whirlpool Broil Pan Set Gray Porcelain
15	Grid
16	Spring (2)
16	WP308685 Whirlpool Microwave Screw
16	W10080180 Whirlpool Nut
17	Roller (2)
18	Roller Pin (2)
19	Bracket
