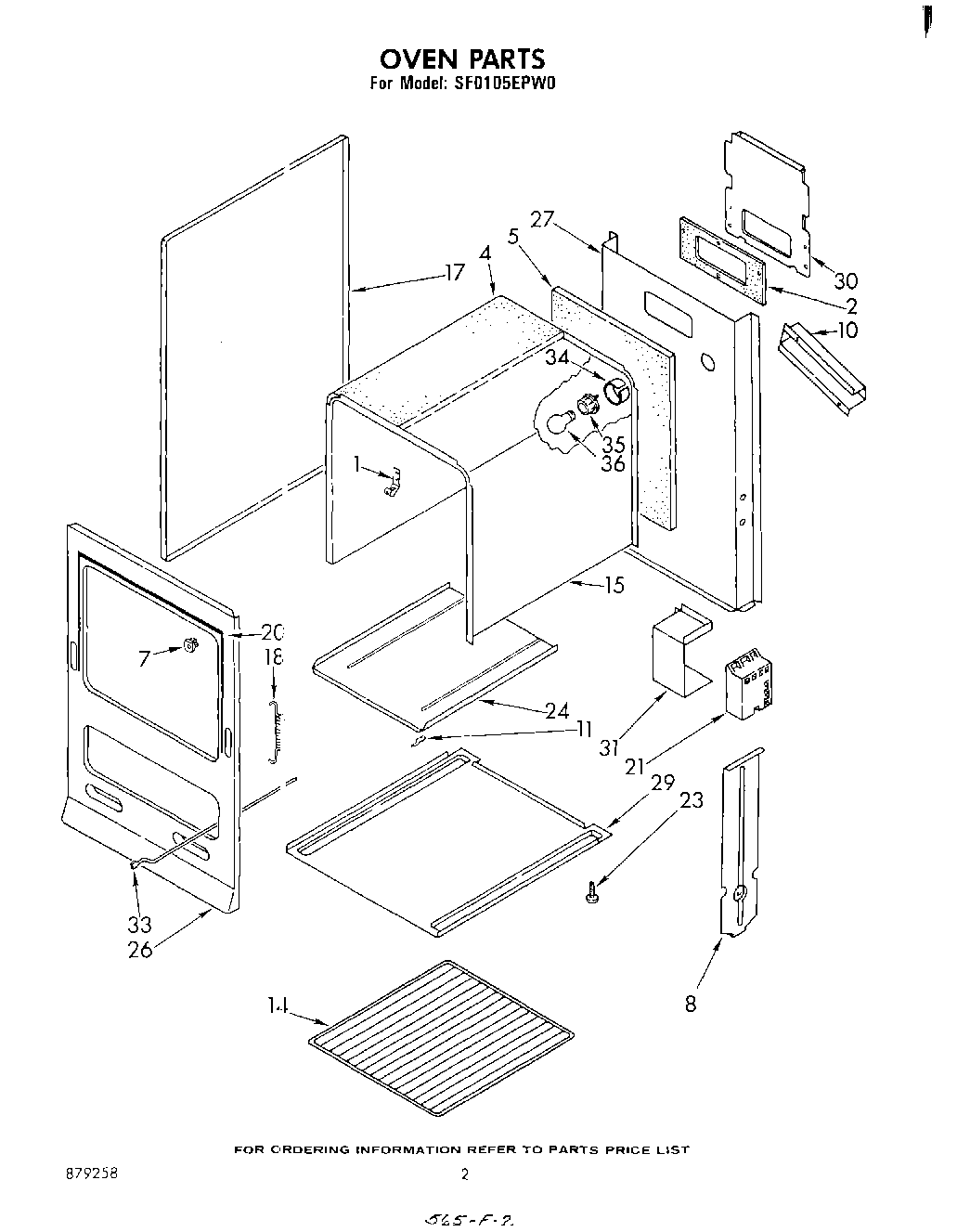

SF0105EPW0 02 – OVEN , LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	List, Repair Parts
	Diagram, Wiring
	Diagram, Installation Instructions
1	98005642 Whirlpool Clip
2	Gasket, Vent Deflector
4	WPW10208653 Whirlpool Insulation
7	98460 Whirlpool Nut
8	Cover, Hinge
10	Raceway, Wire
11	Clip, Oven Bottom Plate (2)
14	Rack, Oven
15	Oven, 20“ Standard (Not Serviceable)
17	Panel, End (2) (White)
18	Spring, Oven Door (2)
20	Seal, Oven Door (Top)
20	Seal, Oven Door (Side (2))
21	Control, Ignitor
23	Screw, Leveling (4)
24	Plate, Oven Bottom
26	Front, Main
27	Back, Main
29	Base, Main
30	Deflector, Vent
31	Cover, Ignitor Control
33	Rod, Broiler Runner
34	Sleeve, Light Hole
35	Socket, Oven Light
36	RANGE ONLY 40W 120V APPL BULB
