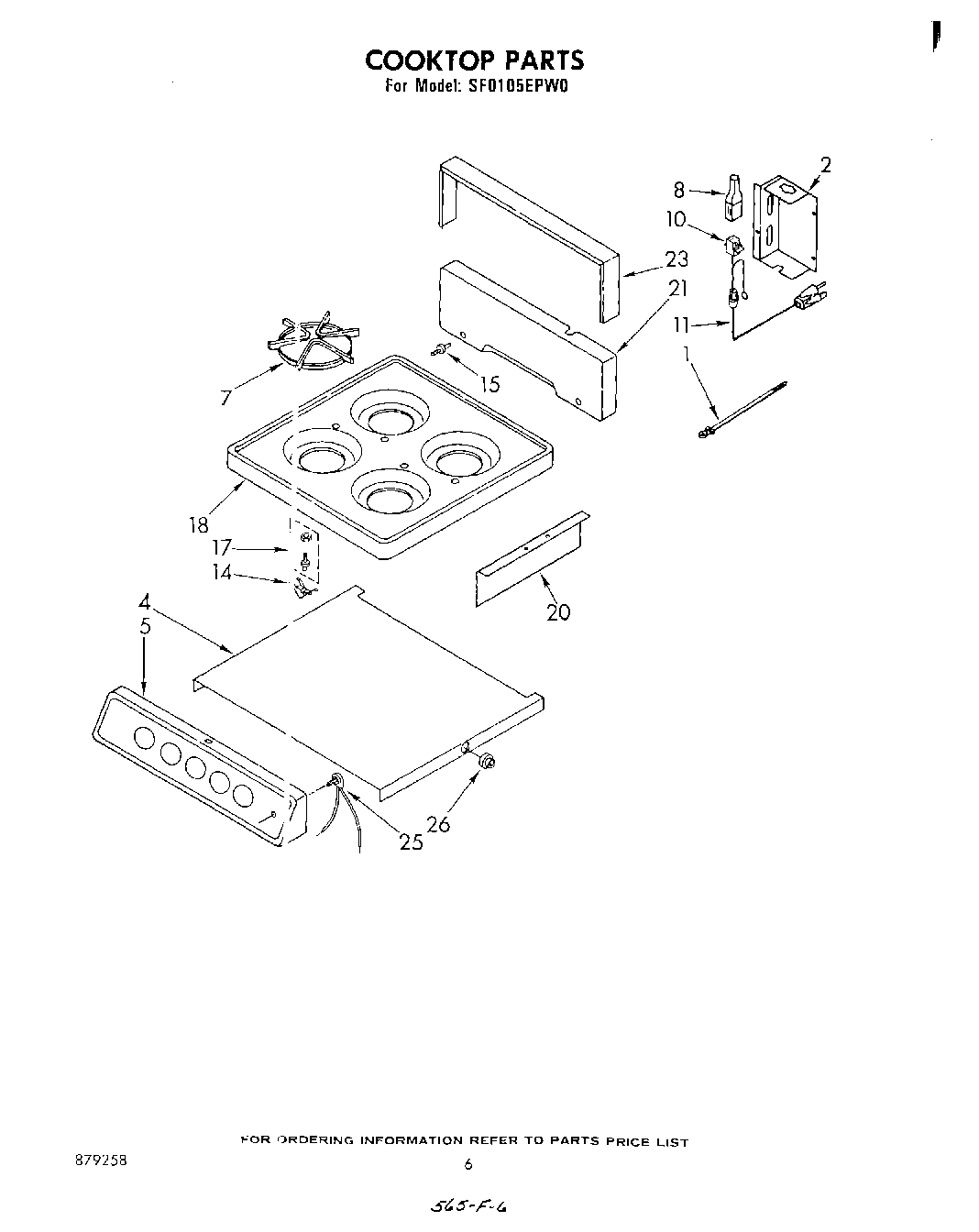

SF0105EPW0 05 – COOK TOP

SF0105EPW0 05 – COOK TOP

Written by

in

SF0105EPW0 05 – COOK TOP

Products

PositionProduct
1Clamp, Wire
2Cover, Wire
4Bottom, Burner Box
5Panel, Manifold (White)
7Grate, Burner (4)
8Block, Disconnect Pin
10Block, Disconnect Socket
11Cord, Extension
14Catch, Main Top (2)
15Nut, Projection Weld (2)
17Strike, Main Top (2)
18top, main (white)
20Baffle, Burner Box
21Panel, Backguard (White)
23Frame, Backguard
25Switch, Oven Light
26Bushing, Snap
