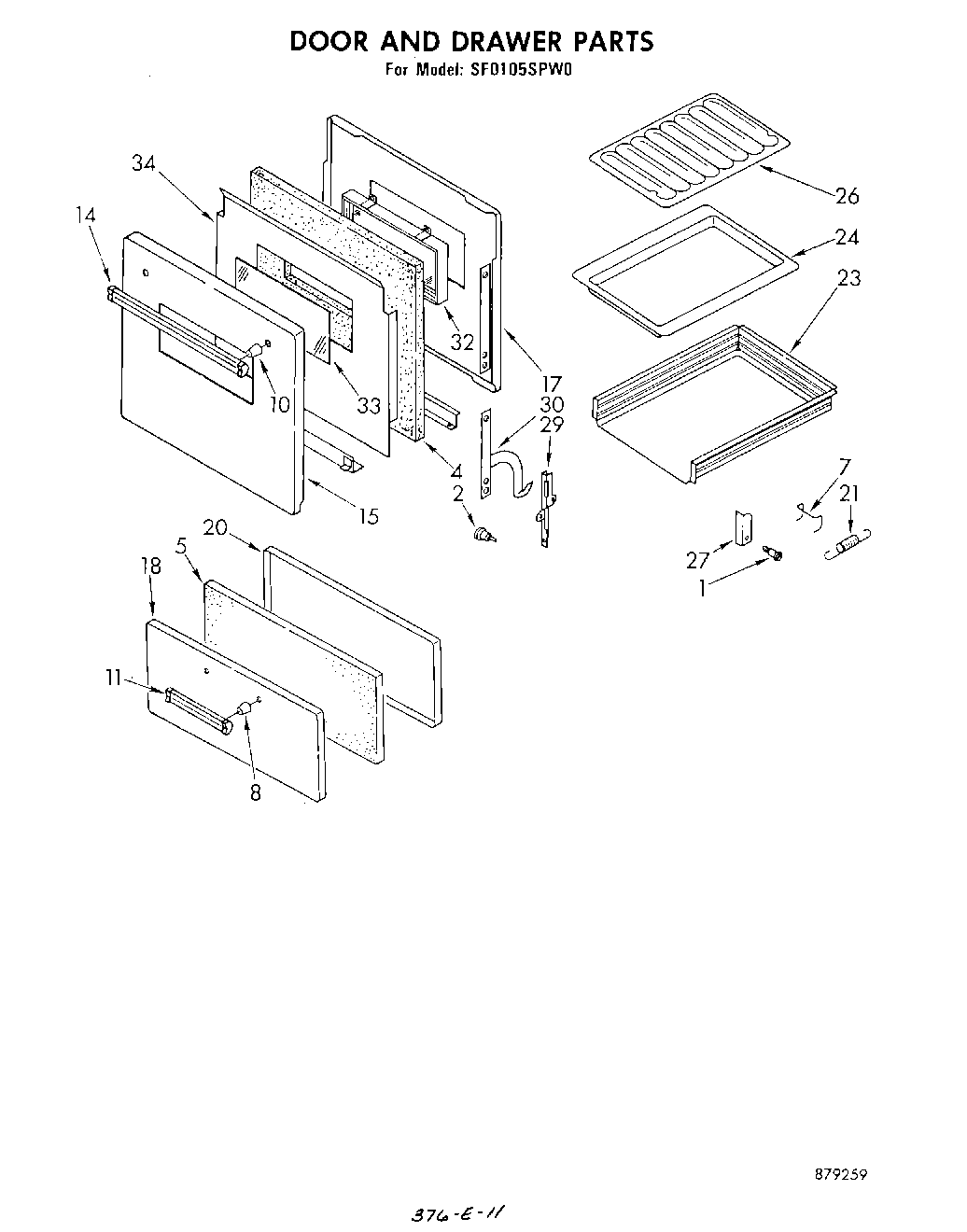

SF0105SPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Bolt, Shoulder 10-24 x 7/16
2	Bolt, Shoulder 10-24 x 7/16 (2)
4	WPW10208653 Whirlpool Insulation
5	Insulation, Broiler Door
7	Stop, Broiler
8	Spacer, Broiler Door Handle (3)
10	Spacer, Broiler Door Handle (2)
11	Handle, Broiler Door
14	Handle, Broiler Door
15	Panel, Oven Door (Toast)
15	Panel, Oven Door (Almond)
15	Panel, Oven Door (Platinum)
15	Panel, Oven Door (White)
17	Lining, Oven Door
18	Panel, Broiler Door (Almond)
18	Panel, Broiler Door (White)
18	Panel, Broiler Door (Toast)
18	Panel, Broiler Door (Platinum)
20	Lining, Broiler Door
21	Spring, Broiler Door (2)
23	Drawer, Broiler
24	Pan, Broiler
26	Tray, Broiler Pan
27	Hinge, Broiler Door (Left Side)
27	Hinge, Broiler Door (Right Side)
29	Support, Oven Door Hinge (Left Side)
29	Support, Oven Door Hinge (Right Side)
30	Hinge, Oven Door (2)
32	Glass, Inner
33	Glass, Outer
34	Baffle, Door
