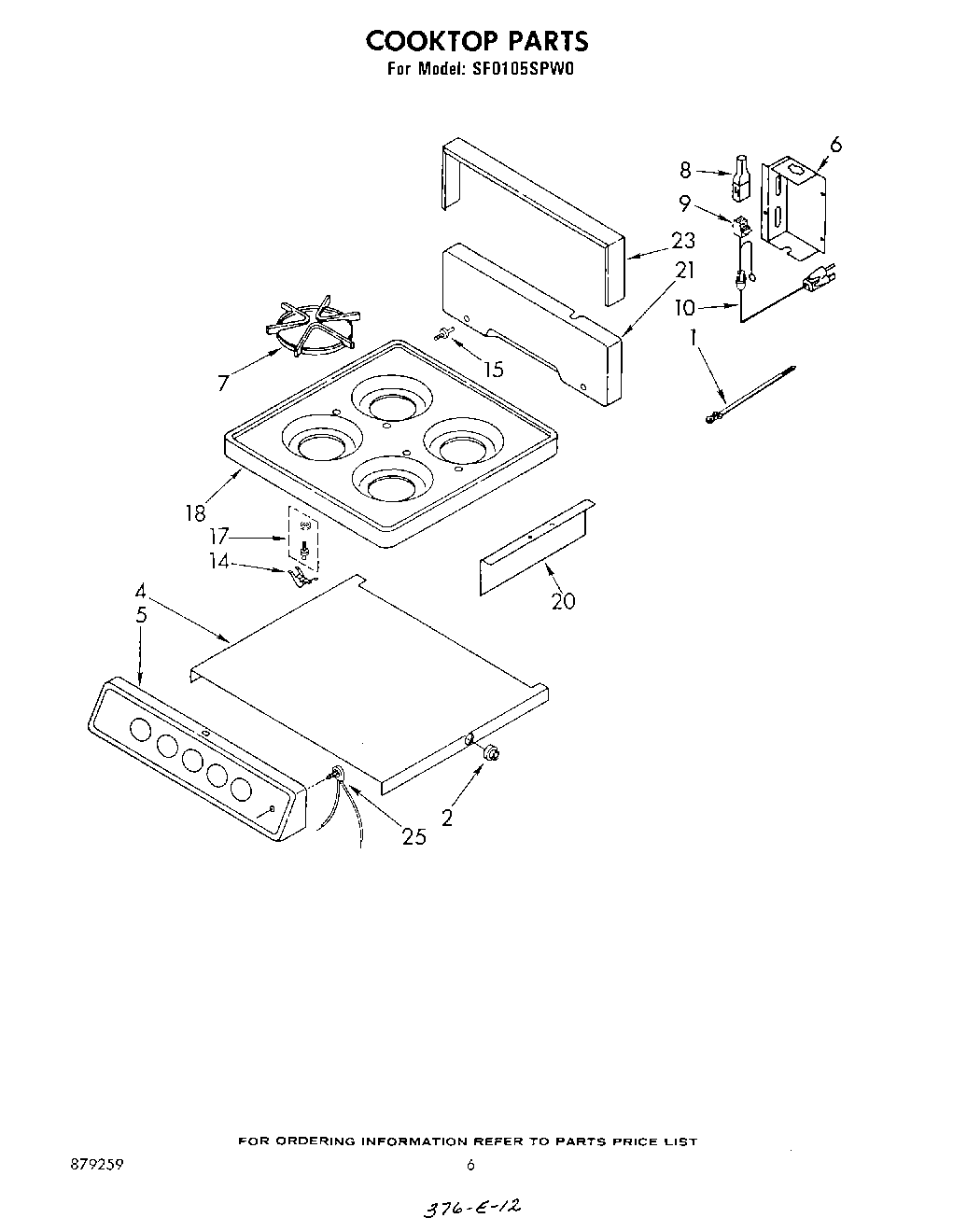

SF0105SPW0 05 – COOKTOP

Products

Position	Product
1	Clamp, Wire
2	Bushing, Snap
4	Bottom, Burner Box
5	Panel, Manifold (Platinum)
5	Panel, Manifold (Toast)
5	Panel, Manifold (White)
5	Panel, Manifold (Almond)
6	Cover, Wire
7	Grate, Burner (4)
8	Block, Disconnect Pin
9	Block, Disconnect Socket
10	Cord, Extension
14	Catch, Main Top (2)
15	Nut, Projection Weld (2)
17	Strike, Main Top (2)
18	Top, Main (Toast)
18	Top, Main (Platinum)
18	top, main (almond)
18	top, main (white)
20	Baffle, Burner Box
21	Panel, Backguard (Toast)
21	Panel, Backguard (Platinum)
21	Panel, Backguard (Almond)
21	Panel, Backguard (White)
23	Frame, Backguard
25	Switch, Oven Light
