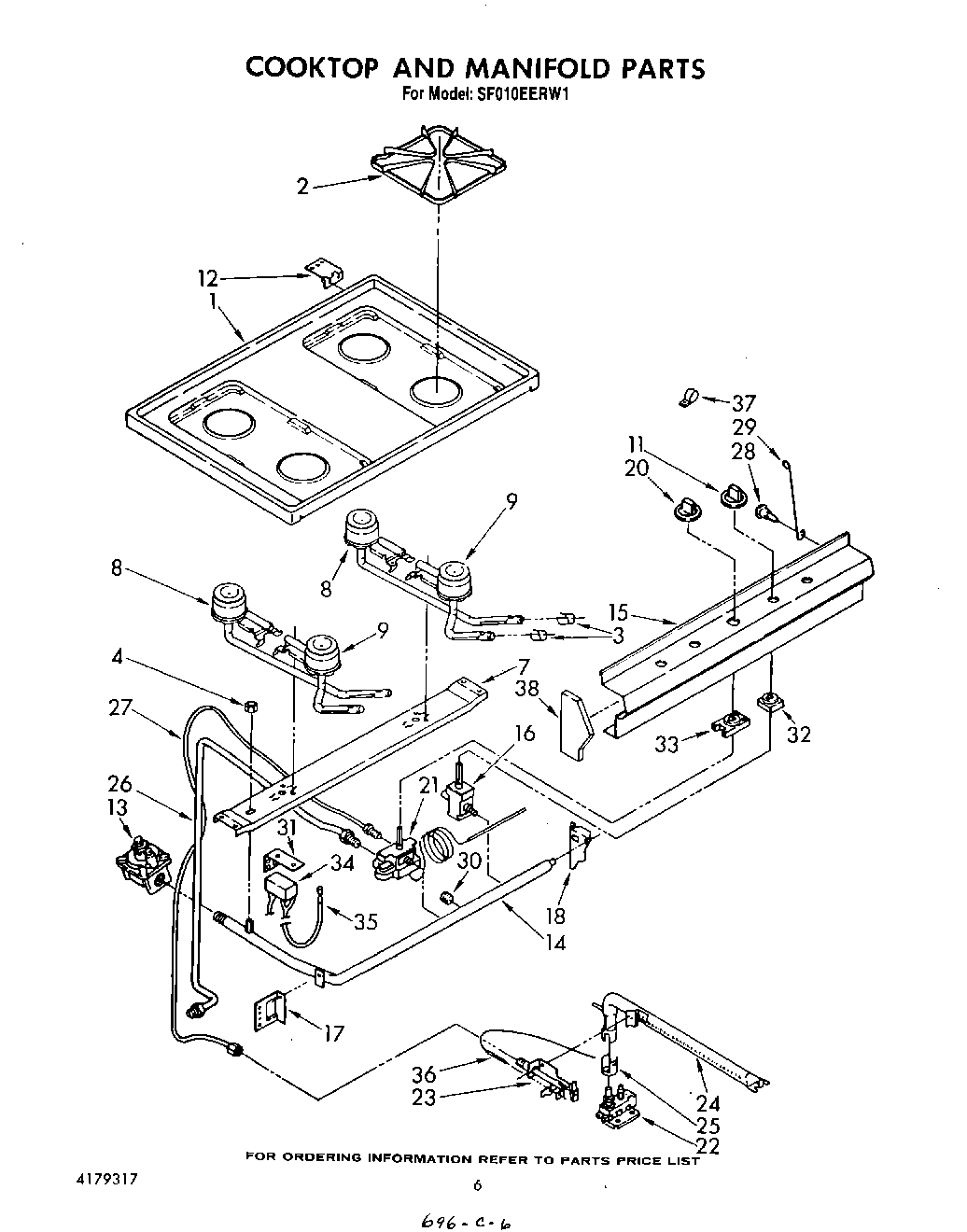

SF010EERW1 05 – COOKTOP AND MANIFOLD , LITERATURE A

Products

Position	Product
	Guide, Cooking
	WPL LIT4179317
	Guide, Use & Care
	WPL LIT786731
1	Cooktop (Platinum)
1	Cooktop (Almond)
1	Cooktop (White)
1	Cooktop (Toast)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	WP878009 Whirlpool Igniter Switch
34	Module, Spark
35	Ignitor (R.H.)
35	Ignitor (R.H.)
36	Ignitor, Oven
37	Strain Relief
38	Endcap (L.H.)
38	WPW10208653 Whirlpool Insulation
38	FOIL, ALUMINUM OVEN (18“ X 25 )
38	Endcap (R.H.)
