SF010ESPW0 02 – OVEN , LIT/OPTIONAL
Written by
in

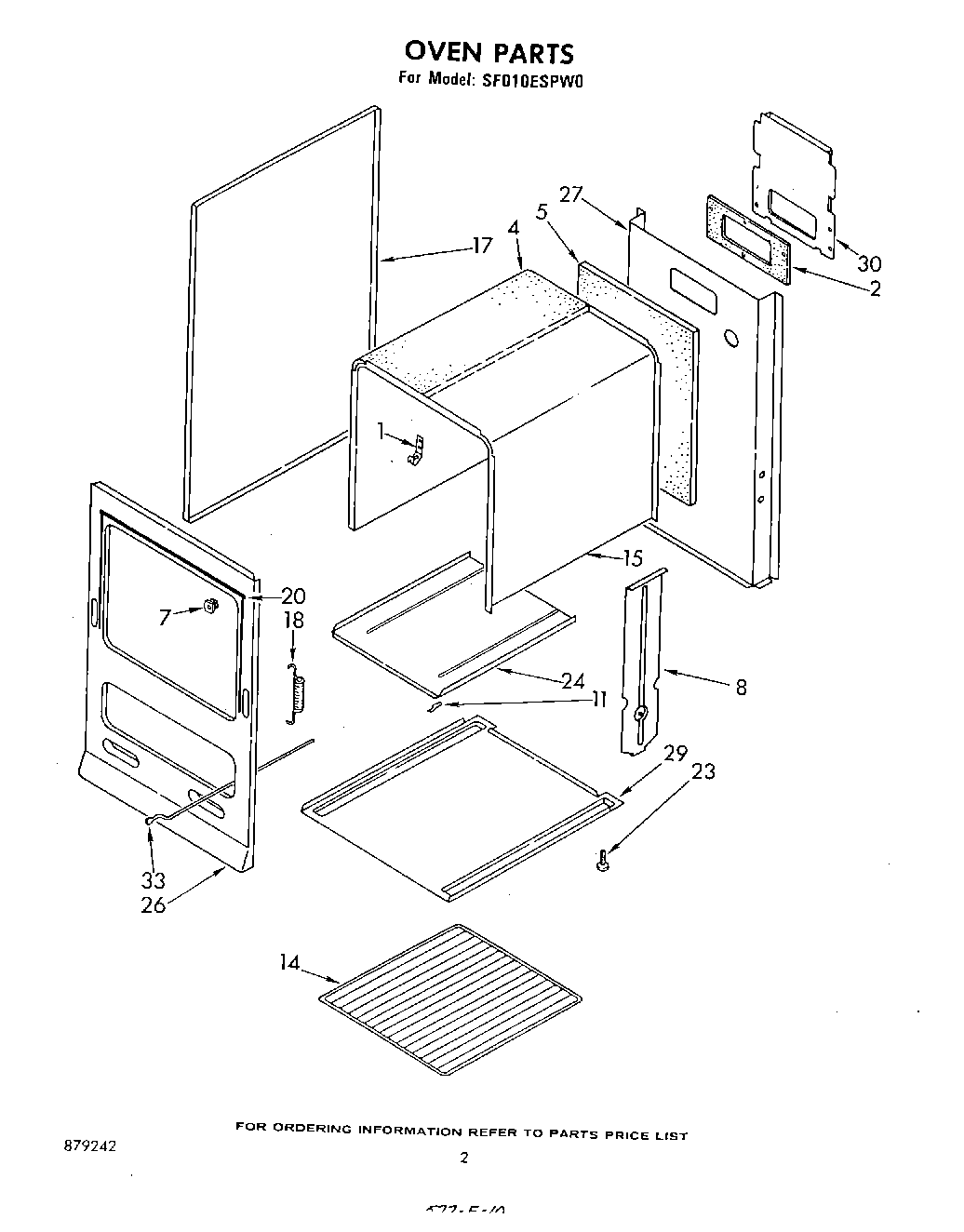

SF010ESPW0 02 – OVEN , LIT/OPTIONAL
Products
Position
Product
Guide, Use & Care
Diagram, Installation Instructions
List, Repair Parts
Instructions, Installation
1
98005642 Whirlpool Clip
2
Gasket, Vent Deflector
4
WPW10208653 Whirlpool Insulation
7
98460 Whirlpool Nut
8
Cover, Hinge
11
Clip, Oven Bottom Plate (2)
14
Rack, Oven
15
Oven, 20“ Standard (Not Serviceable)
17
Panel, End (2) (Almond)
17
Panel, End (2) (White)
18
Spring, Oven Door (2)
20
Seal, Oven Door (Side (2))
20
Seal, Oven Door (Top)
23
Screw, Leveling (4)
24
Plate, Oven Bottom
26
Front, Main
27
Back, Main
29
Base, Main
30
Deflector, Vent
33
Rod, Broiler Runner
←
