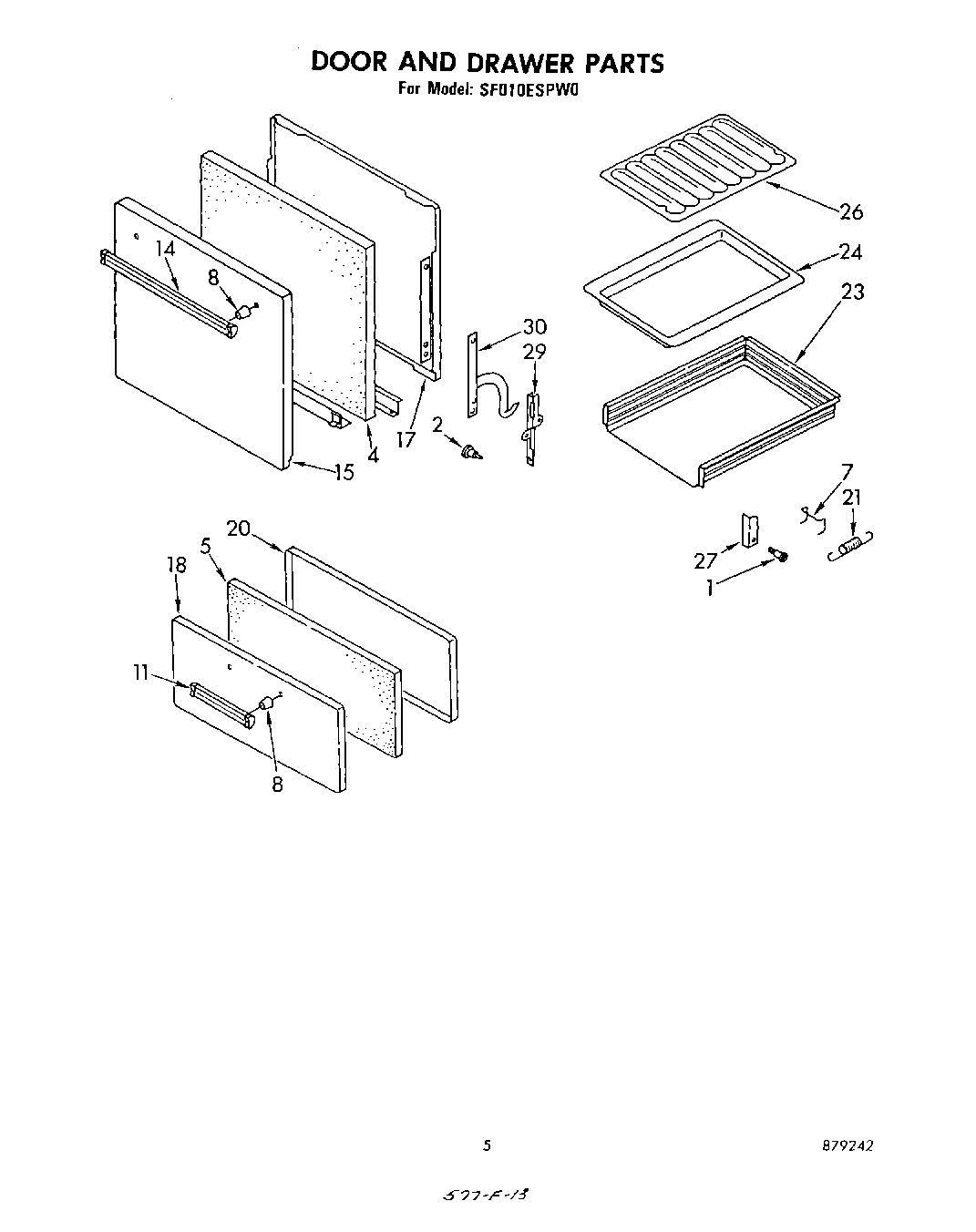

SF010ESPW0 04 – DOOR AND DRAWER

Products

PositionProduct
1Bolt, Shoulder 10-24 x 7/16
2Bolt, Shoulder 10-24 x 7/16 (2)
4WPW10208653 Whirlpool Insulation
5Insulation, Broiler Door
7Stop, Broiler
8Spacer, Broiler Door Handle (2)
11Handle, Broiler Door
14Handle, Broiler Door
15Panel, Oven Door (White)
15Panel, Oven Door (Almond)
17Lining, Oven Door
18Panel, Broiler Door (White)
18Panel, Broiler Door (Almond)
20Lining, Broiler Door
21Spring, Broiler Door (2)
23Drawer, Broiler
24Pan, Broiler
26Tray, Broiler Pan
27Hinge, Broiler Door (Left Side)
27Hinge, Broiler Door (Right Side)
29Support, Oven Door Hinge (Right Side)
29Support, Oven Door Hinge (Left Side)
30Hinge, Oven Door (2)
