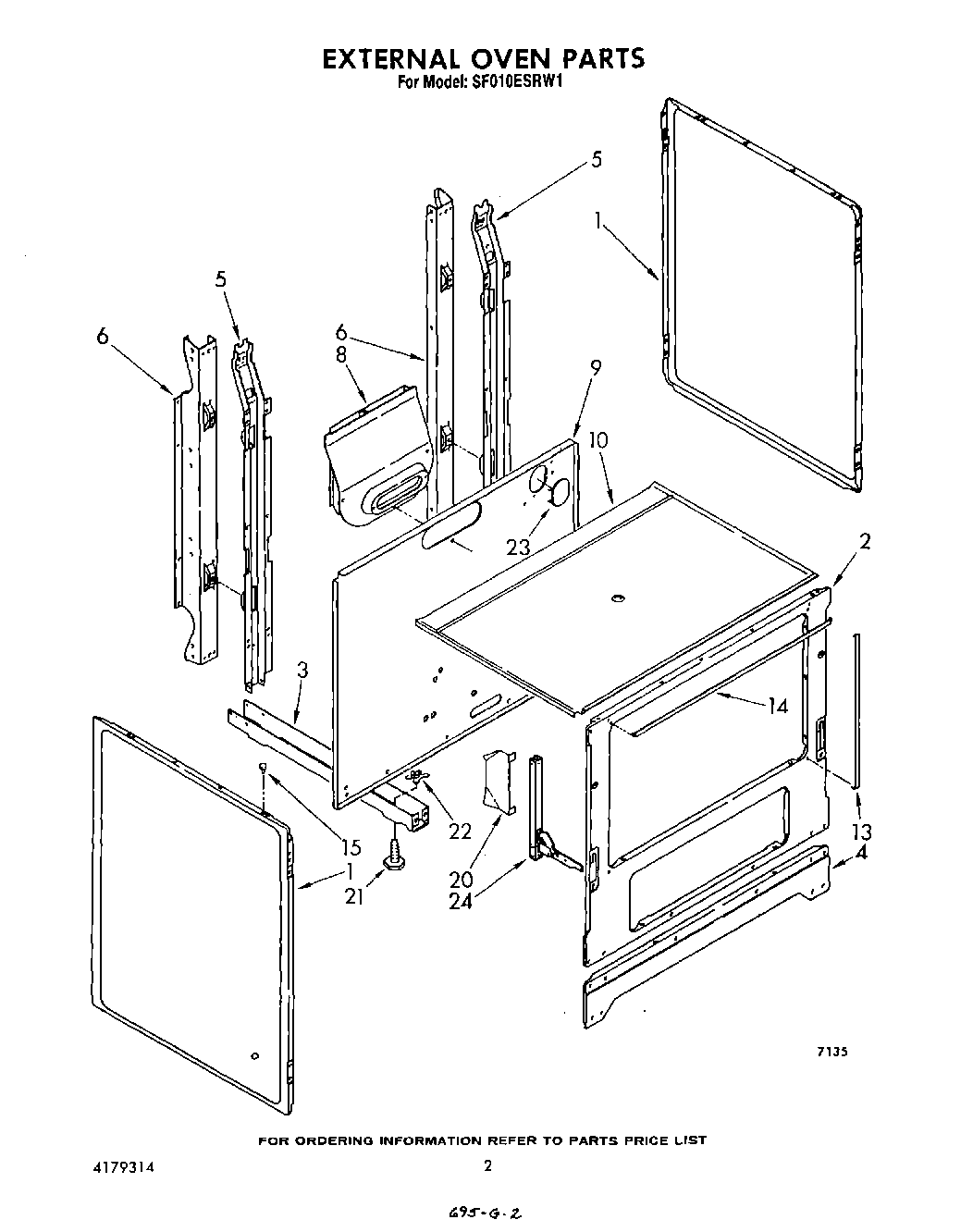

SF010ESRW1 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (Toast)
1	Panel, Side (2) (Platinum)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
8	SCREW
8	Flue, Box
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Panel, Rear
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Plug, Hole
24	Hinge, Door (2)
