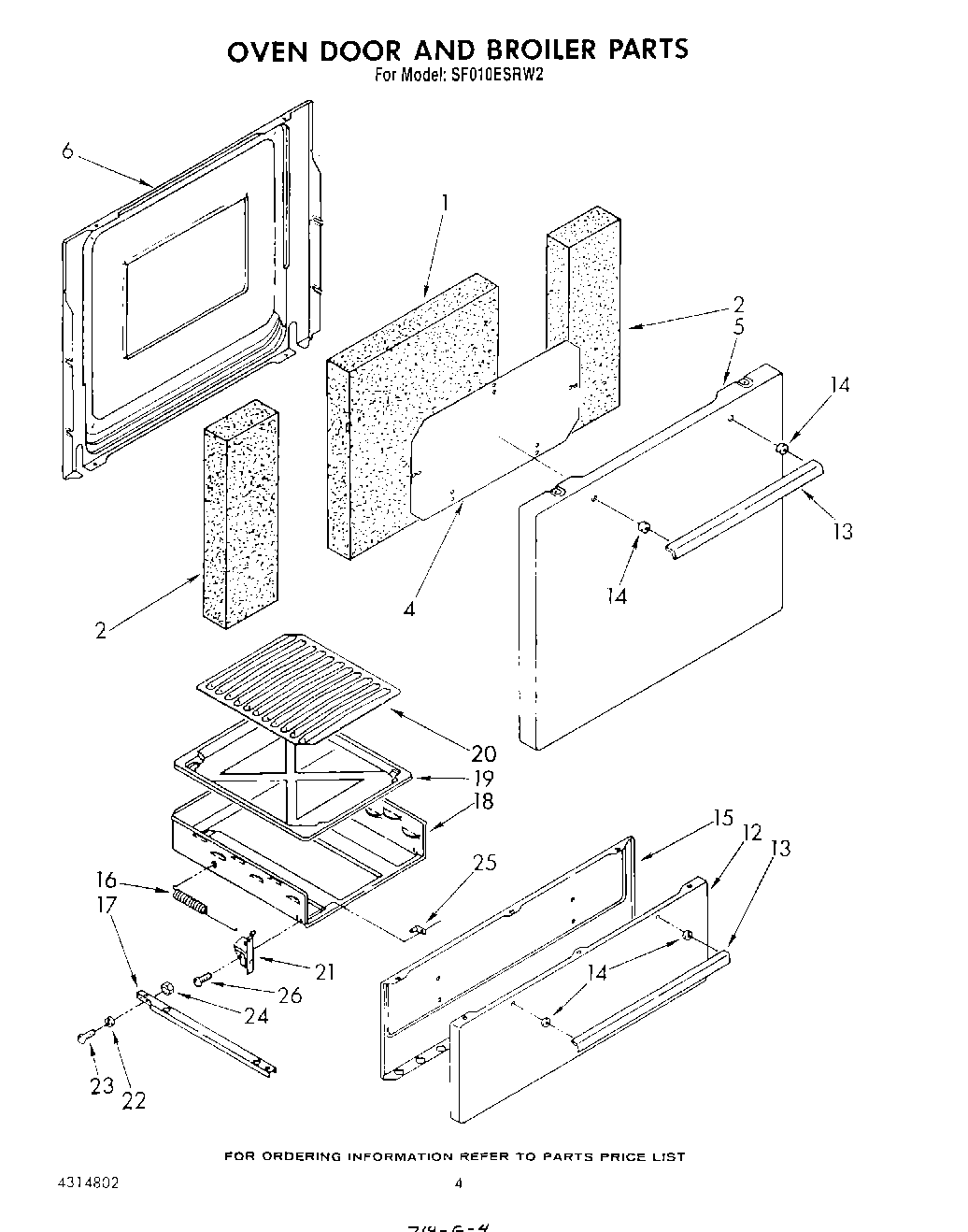

SF010ESRW2 03 – OVEN DOOR AND BROILERadmin2025-04-26T12:53:18+00:00SF010ESRW2 03 – OVEN DOOR AND BROILER
Products
| Position | Product |
|---|
| 1 | Insulation |
| 2 | Insulation |
| 4 | Baffle |
| 5 | Panel, Door (Almond) |
| 5 | Panel, Door (White) |
| 6 | Liner, Door |
| 12 | Burner, Oven |
| 12 | Panel, Broiler Use With Model SF0100ER-3 (Almond Use With Model SF0100ER-4) |
| 13 | Screw, 10-12 X 5/8 (2) |
| 13 | Handle, Broiler Door |
| 13 | Washer (2) |
| 14 | Spacer (4) |
| 15 | Liner, Broiler Door |
| 16 | Spring (2) |
| 17 | Track, Upper (2) |
| 18 | Carriage, Broiler |
| 19 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 20 | Grid |
| 21 | WP308685 Whirlpool Microwave Screw |
| 21 | Hinge, Door (R.H.) |
| 21 | W10080180 Whirlpool Nut |
| 21 | Hinge, Door (L.H.) |
| 22 | Roller (2) |
| 23 | Pin, Roller (2) |
| 25 | Plate (2) |
| 26 | Screw (2) |
