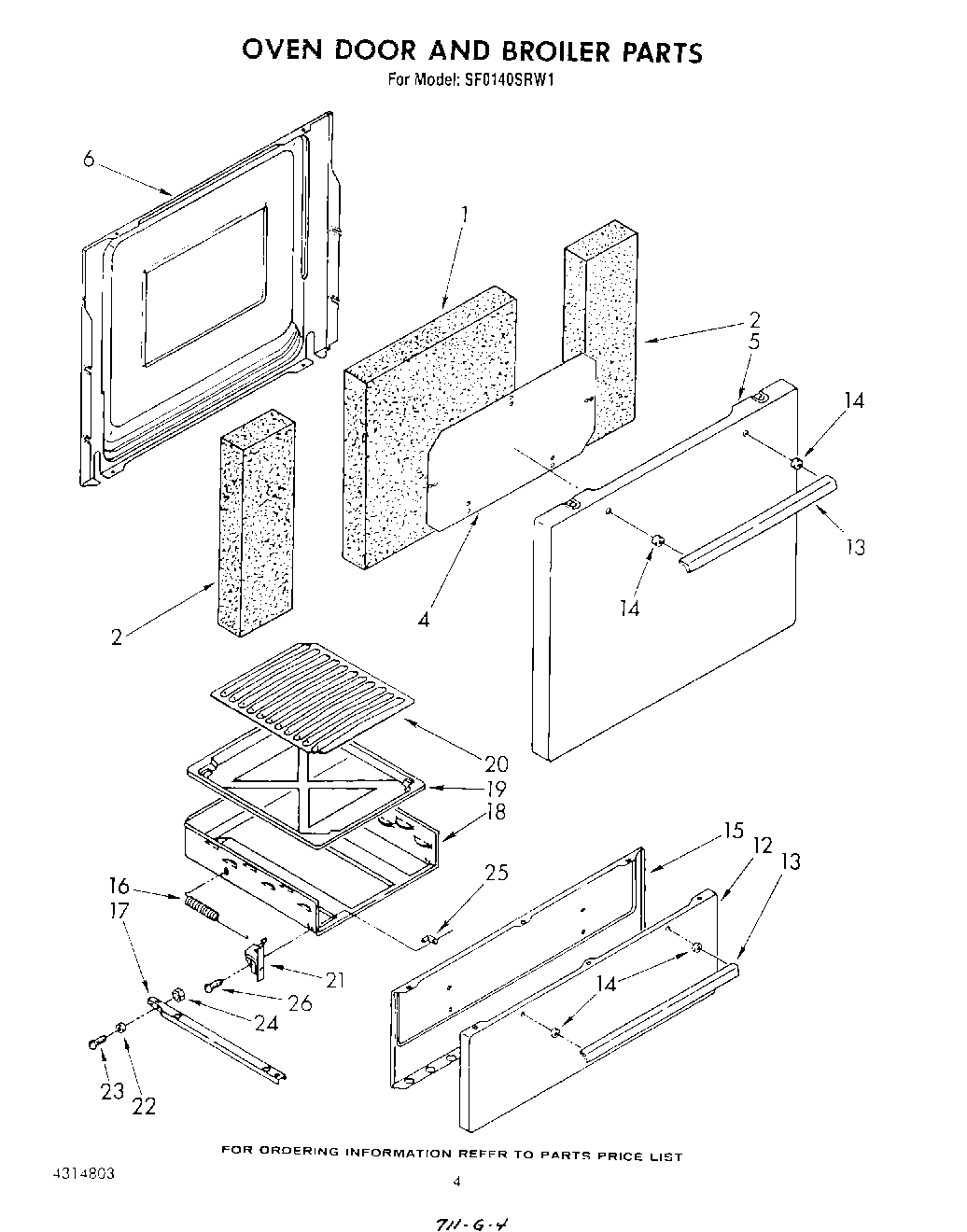

SF0140SRW1 03 – OVEN DOOR AND BROILER

SF0140SRW1 03 – OVEN DOOR AND BROILER

Written by

in

SF0140SRW1 03 – OVEN DOOR AND BROILER

Products

PositionProduct
1Insulation
2Insulation
4Baffle
5Panel, Door (White)
5Panel, Door (Harvest Gold)
5Panel, Door (Almond)
6Liner, Door
12Burner, Oven
12Panel, Broiler (Harvest Gold)
12Panel, Broiler Use With Model SF0100ER-3 (Almond Use With Model SF0100ER-4)
13Screw, 10-12 X 5/8 (2)
13Handle, Broiler Door
13Washer (2)
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
22Roller (2)
23Pin, Roller (2)
25Plate (2)
26Screw (2)
