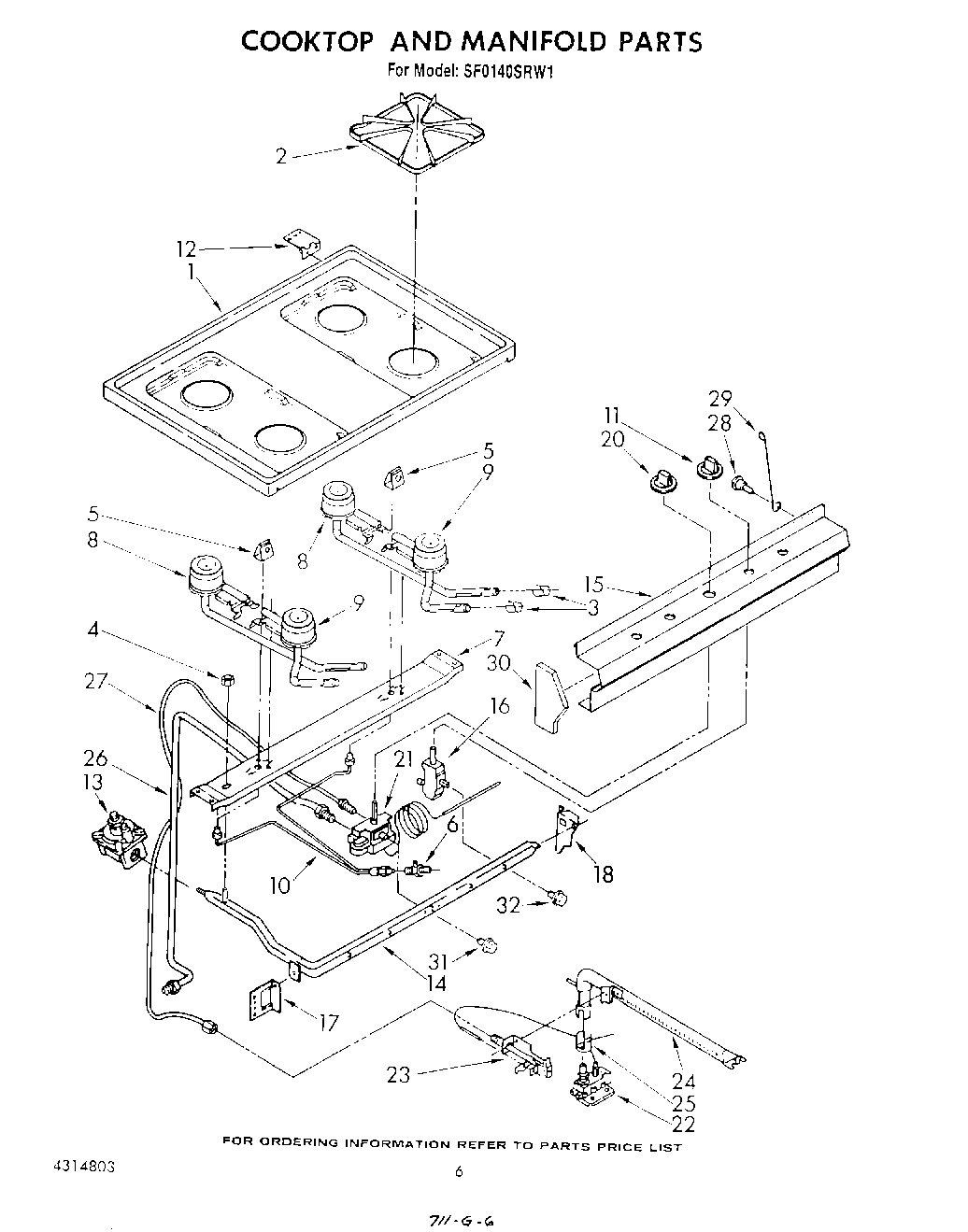

SF0140SRW1 05 – COOKTOP AND MANIFOLD , LITERATURE A

Products

Position	Product
	Guide, Cooking
	Sheet, Conversio
	WPL LIT786731
	WPL LIT4314803
	Guide, Use & Care
1	Cooktop (Almond)
1	Cooktop (White)
1	Cooktop (Harvest Gold)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	SCREW
12	Hinge, Maintop (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (L.H.)
30	Endcap (R.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
32	WPW10208653 Whirlpool Insulation
32	FOIL, ALUMINUM OVEN (18“ X 25 )
