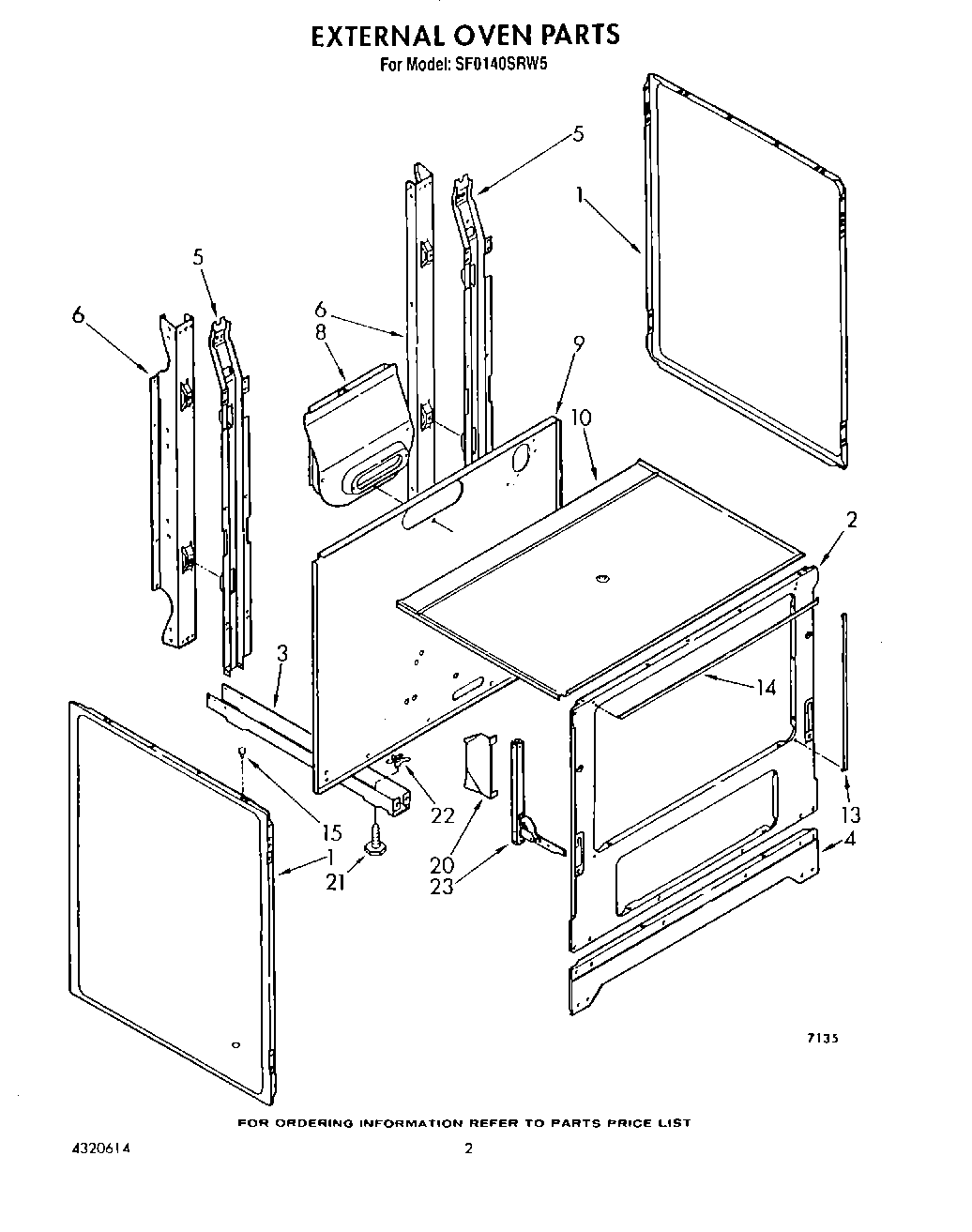

SF0140SRW5 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (Harvest Gold)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Screw, 10-32 X 1/2 (1)
5	Support, Main (2)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Charcoal Gray)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Hinge, Door (2)
