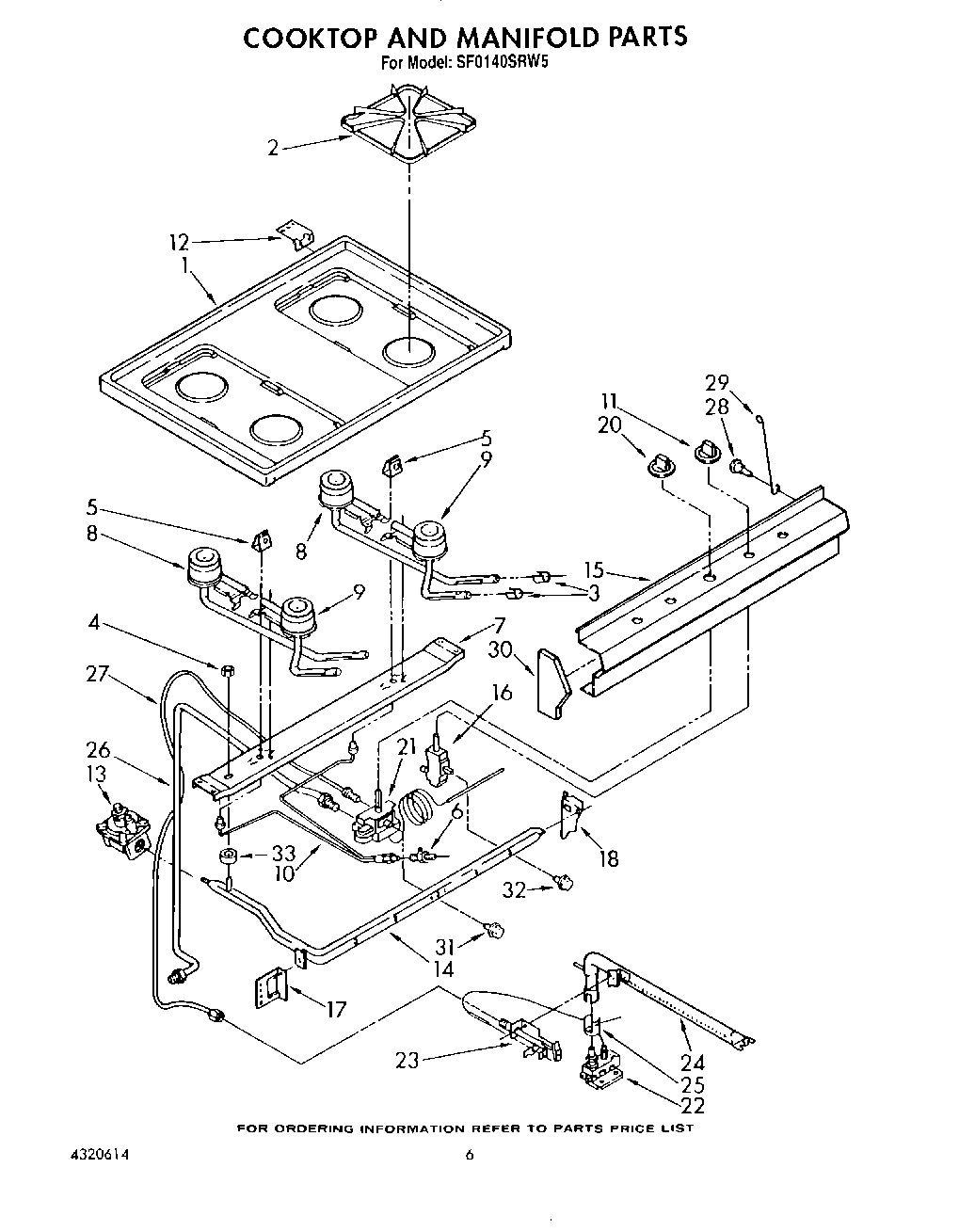

SF0140SRW5 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Sheet, Conversio
	Guide, Cooking
	Guide, Use & Care
	WPL LIT786731
	WPL LIT4320614
1	Cooktop (Harvest Gold)
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (R.H.)
30	Endcap (L.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
33	WPW10208653 Whirlpool Insulation
33	FOIL, ALUMINUM OVEN (18“ X 25 )
33	Spacer, Manifold
