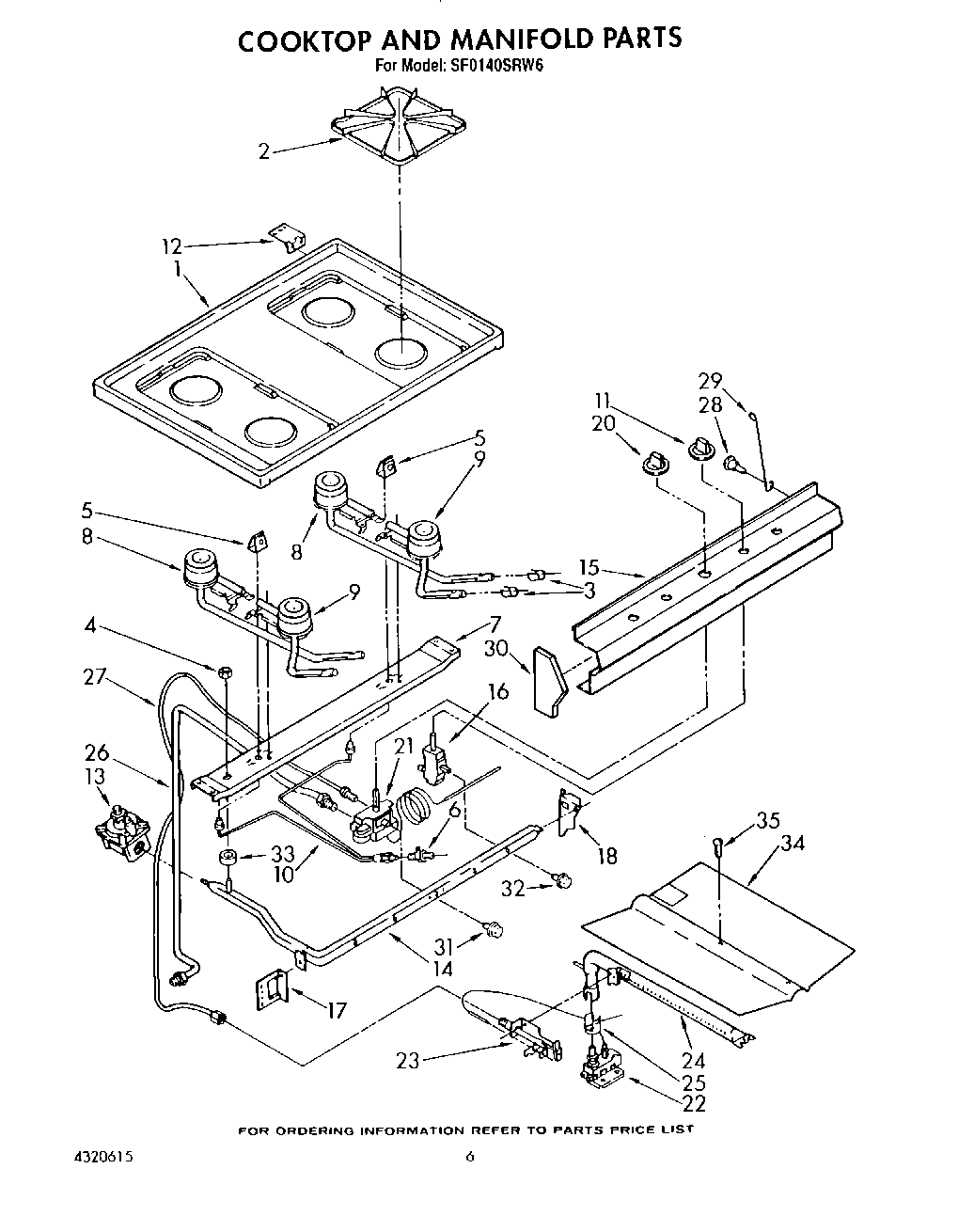

SF0140SRW6 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4320615
	Guide, Cooking
	Sheet, Conversio
	Guide, Use & Care
	WPL LIT786731
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Harvest Gold)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
10	Tubing, Pilot
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	SCREW
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 31)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (L.H.)
30	Endcap (R.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
33	Spacer, Manifold
34	Spreader, Flame
35	W10080180 Whirlpool Nut
35	WPW10208653 Whirlpool Insulation
35	FOIL, ALUMINUM OVEN (18“ X 25 )
35	Insulation, Fiberglass (1/2“ X 22“ X 120“
