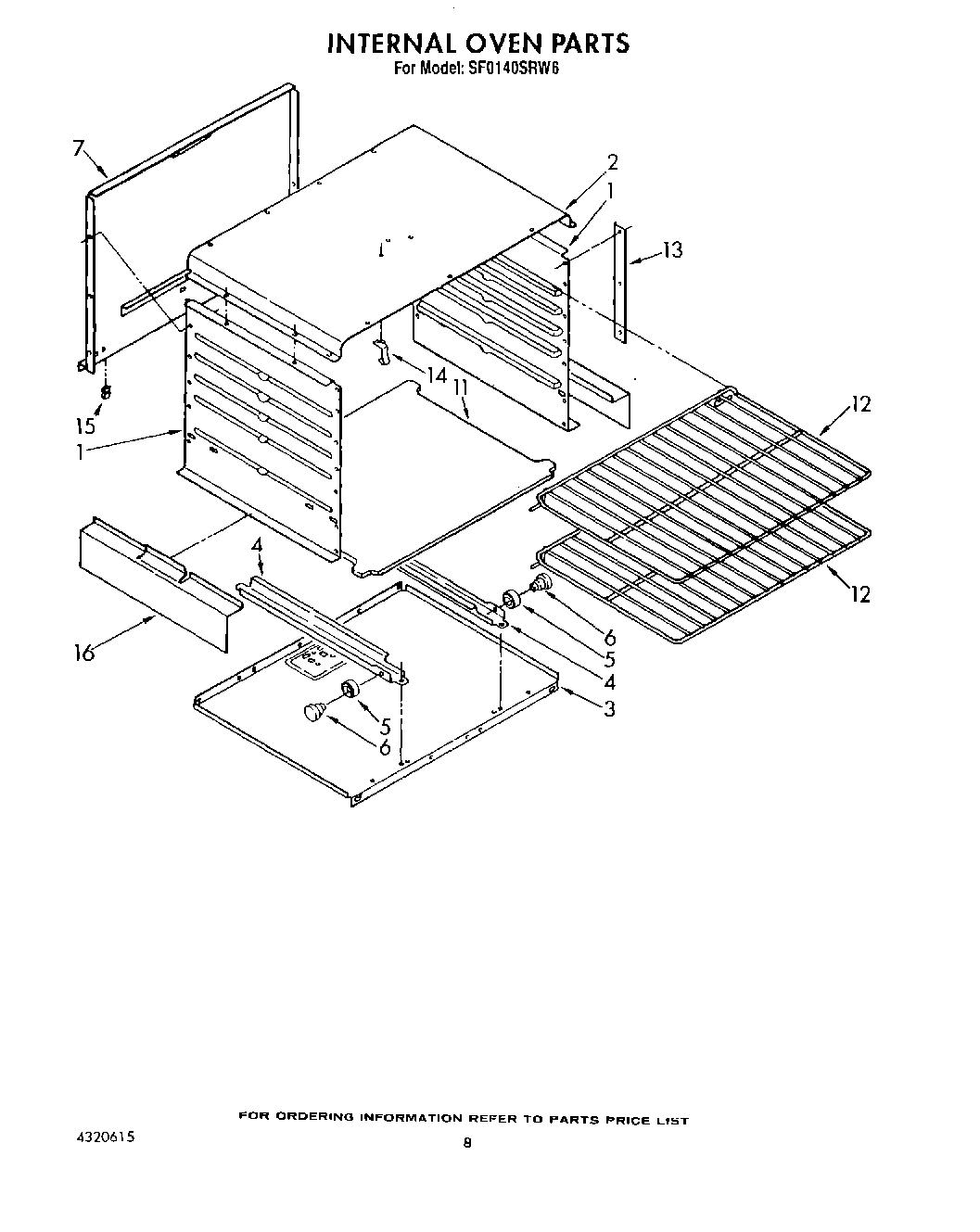

SF0140SRW6 06 – INTERNAL OVEN

SF0140SRW6 06 – INTERNAL OVEN

Written by

in

SF0140SRW6 06 – INTERNAL OVEN

Products

PositionProduct
1Liner, Oven Side (2)
2Liner, Oven Top
3Baffle, Bottom
4Track, Broiler (Left Hand)
4WP308685 Whirlpool Microwave Screw
4Track, Broiler (Right Hand)
5Roller (2)
6Pin, Roller (2)
7Frame, Front
11Bottom, Oven
12Rack, Oven
13Support, Liner (2)
1498005642 Whirlpool Clip
15Clip, Speed
16Shield, Radiation
