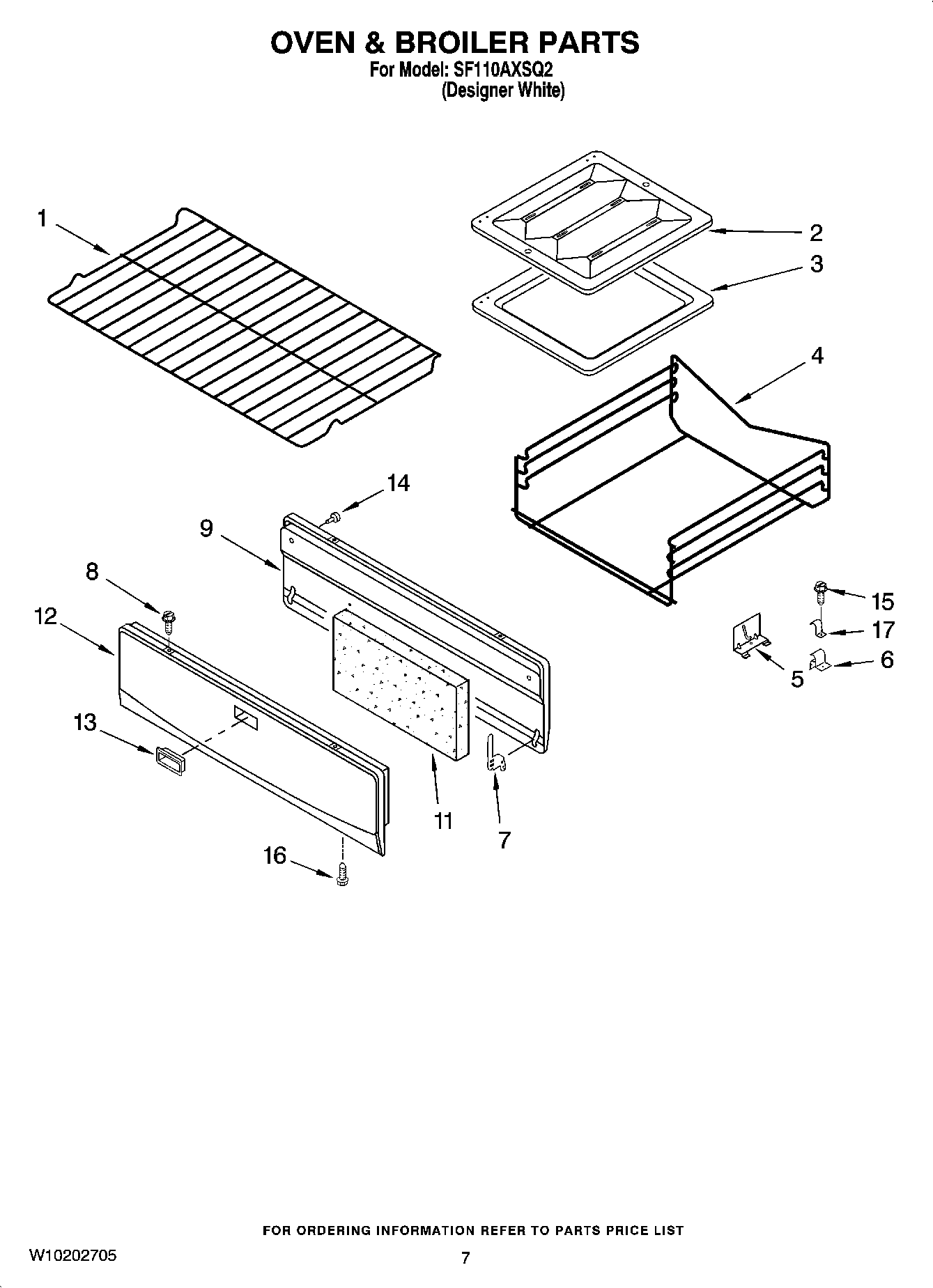

SF110AXSQ2 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
498016570 Whirlpool Oven Rack
5Bracket, Rack
698004715 Whirlpool Drawer Guide
7Hinge, Brlr Door
83196166 Whirlpool Screw
9Liner, Door
11W10137230 Whirlpool Insulation
12Panel, Door (White)
13WP3405184 Whirlpool White Door Handle
14BUMPER, DOOR
15W10837731 Whirlpool Screw Assembly
16WP3400805 Whirlpool Screw Assembly
1798008341 Whirlpool Clip
