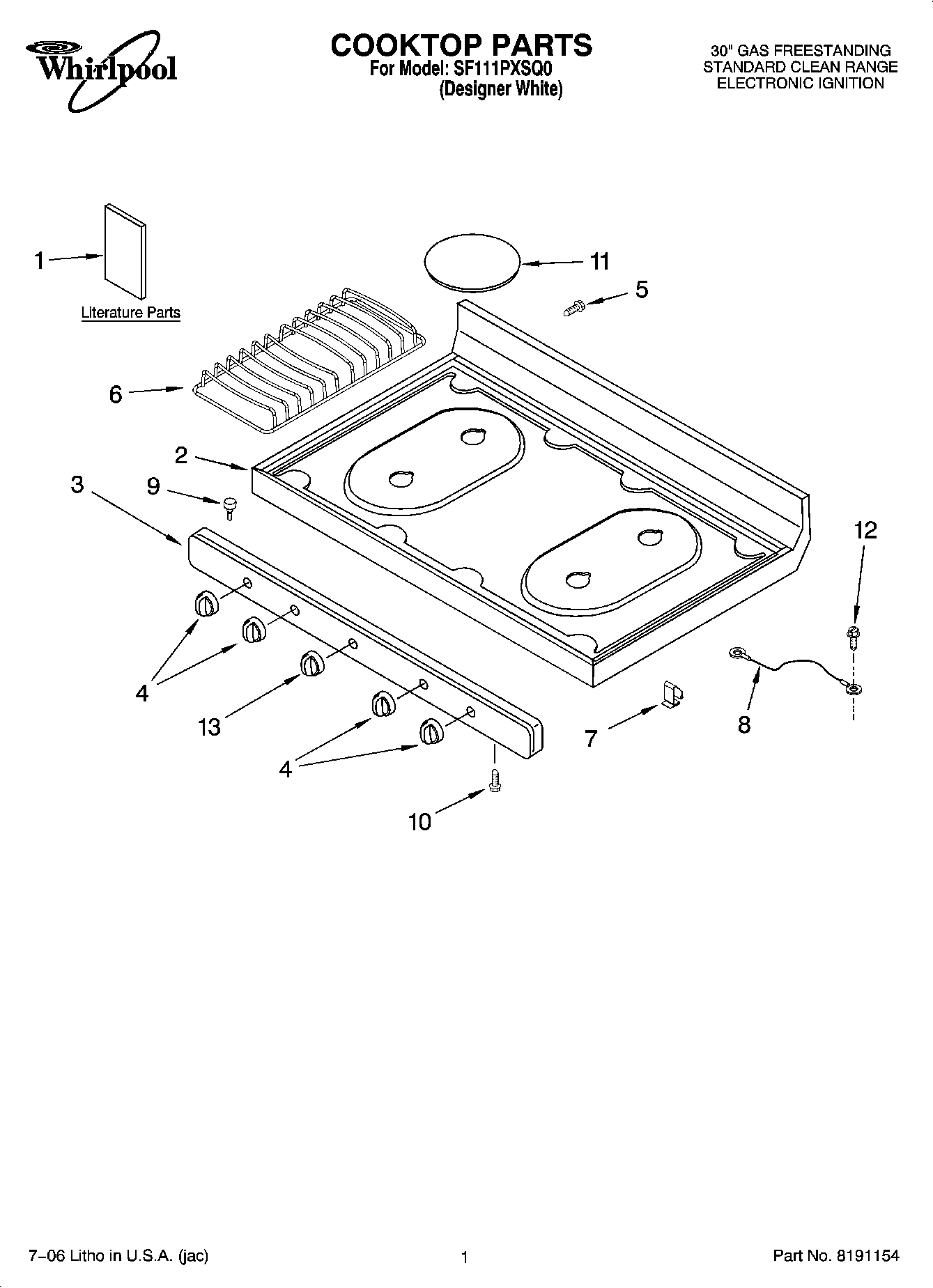

SF111PXSQ0 01 – COOKTOP PARTS

SF111PXSQ0 01 – COOKTOP PARTS

Written by

in

SF111PXSQ0 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions Installation
1Tech Sheet
1Safer Cooking Tips
1Installation Instr (Template)
2Cooktop (White)
3Panel, Manifold
4WP98006102 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
68190014 Whirlpool Grate Kit Primary
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98005518 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13WP98008321 Whirlpool Range Stove Burner Thermostat Control Knob
